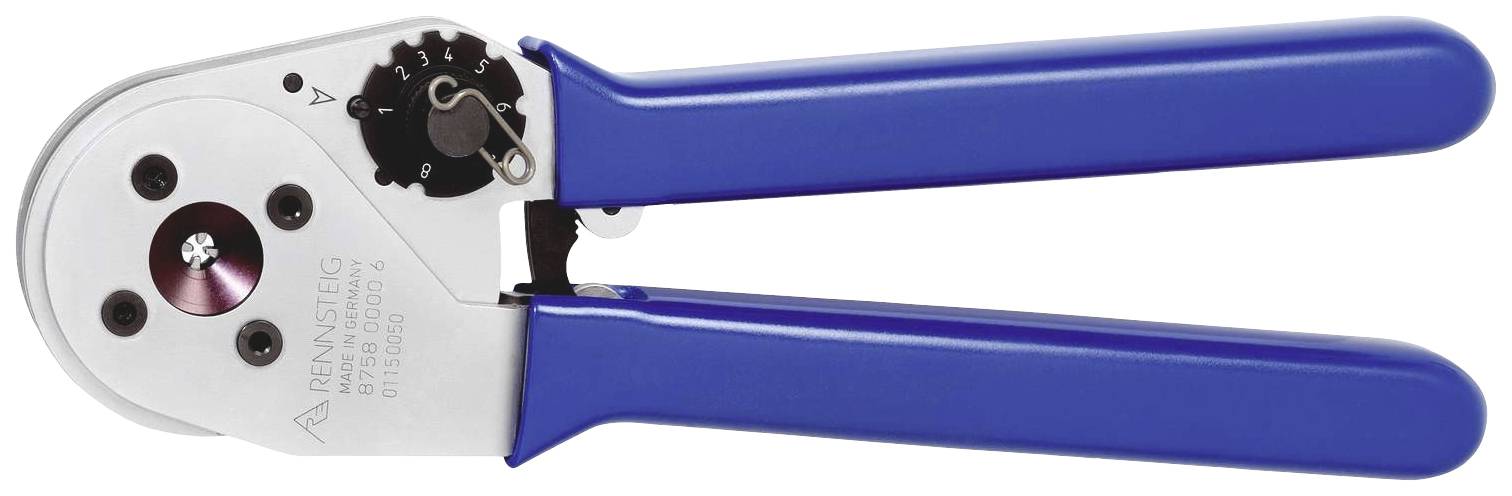

Rennsteig Werkzeuge Selector Crimp 8.75-8 8758 0000 6 Crimper Machined pins and receptacle contacts 0.14 up to 3.3 mm²
EAN:
Part number:
Item no:
Total (€ 348.74 / piece)
€ 348.74
plus VAT.
14-day return policy included
Technical specifications
- Product type
Crimper
- Manufacturer part #
8758 0000 6
- Range of uses
Machined pins and receptacle contacts
- Crimp area
0.14 up to 3.3 mm²
- Crimp area AWG
12 up to 26 awg
- Crimp area (min.)
0.14 mm²
- Crimp area (max.)
3.3 mm²
- Crimp area AWG (min.)
26 awg
- Crimp area AWG (max.)
12 awg
- Weight
560 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1228757 Rennsteig Werkzeuge Selector Crimp 8.75-8 8758 0000 6 Crimper Machined pins and receptacle contacts 0.14 up to 3.3 mm²
Description
Four-punch pliers selector crimp. Special crimping pliers for crimping of machined pin and socket contacts. Use of MIL-Positionierern is easily possible. Review of the basic settings by means of plug gauge analogue MIL. Reliable Vercrimpung by forced lock and synchronous delivery of the crimp plug gauges. 230mm long Capacity 0. 14-3. 30 mm². AWG 26-12, max, Ø contact 5. 5 mm. analogue M 22520/1-01. Made in Germany
Hints
This text is machine translated.
