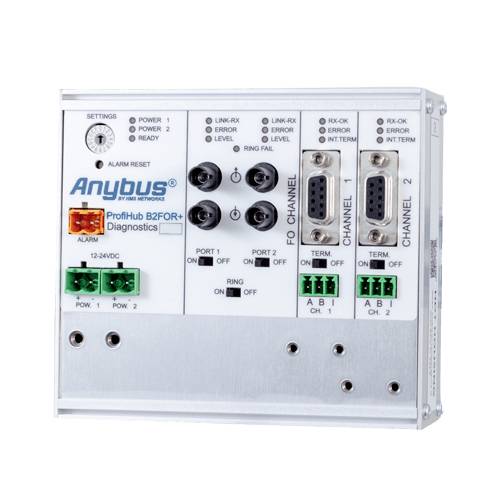

Repeater Profibus, FO, RS-485 Anybus ProfiHub B2FO2+ Operating voltage: 12 V DC, 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,063.03 / piece)
€ 1,063.03
plus VAT.
Technical specifications
- Alarm contact
- Redundant power supply
- IP 20 protection class
- Multimode 850 mm
- FIBER OPTIC CABLE G50 - G62.5 / 125 (OM1)
- Max. 3 km (1 db/km)
- Product type
Repeater
- Interfaces
Profibus
FO
RS-485
- Type
ProfiHub B2FO2+
- Operating voltage
12 V DC
24 V DC
- Max. operating temperature
70 °C
- Min. operating temperature
-25 °C
- Operating voltage
12-24 V DC
- Operating temperature
-25 up to 70 °C
- Dim
(W x H) 113 mm x 43 mm
- Height
43 mm
- Width
113 mm
- Manufacturer part #
17220
Documents & Downloads
Datasheet
Datasheet 2986320 Repeater Profibus, FO, RS-485 Anybus ProfiHub B2FO2+ Operating voltage: 12 V DC, 24 V DC
User & Safety Instructions
User & Safety Instructions 2986320 Repeater Profibus, FO, RS-485 Anybus ProfiHub B2FO2+ Operating voltage: 12 V DC, 24 V DC
Description
The ProfiHub B2FO2+ is an economical solution for converting PROFIBUS fiber to RS 485 copper segments and vice versa. It enables reliable applications where long cable runs and isolation between devices and segments are required.
The B2FO2+ supports several fiber-optic structures: Point-to-point, line and star. Protocol transparency without further configuration enables direct integration into existing PROFIBUS networks.
The ProfiHub B2FO2 is equipped with 2 galvanically separated RS 485 channels. Each channel can operate a maximum of 31 devices.
The mechanical structure consists of a compact, stable metal housing, which can be mounted on a DIN rail. The hub has an alarm relay, redundant power supply, diagnostic LEDs and optional redundancy feature.
This text is machine translated.
The B2FO2+ supports several fiber-optic structures: Point-to-point, line and star. Protocol transparency without further configuration enables direct integration into existing PROFIBUS networks.
The ProfiHub B2FO2 is equipped with 2 galvanically separated RS 485 channels. Each channel can operate a maximum of 31 devices.
The mechanical structure consists of a compact, stable metal housing, which can be mounted on a DIN rail. The hub has an alarm relay, redundant power supply, diagnostic LEDs and optional redundancy feature.
