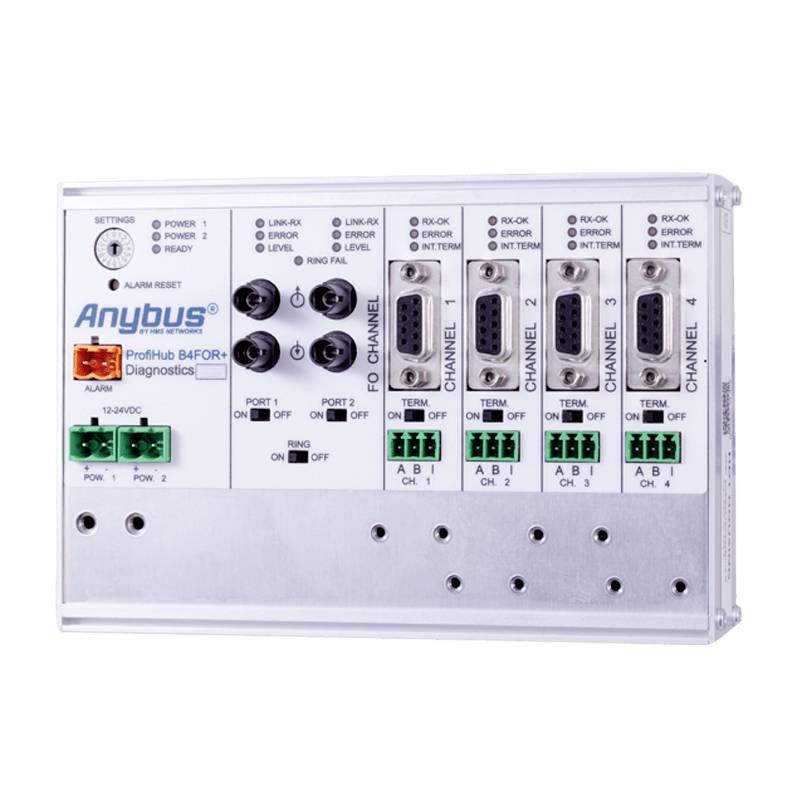

Repeater Profibus, FO, RS-485 Anybus ProfiHub B4FOR+ MM Ring Operating voltage: 12 V DC, 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,679.83 / piece)
€ 1,679.83
plus VAT.
Technical specifications
- Alarm contact
- Connector: Screw connection and DB9,
- Protection class: IP20
- Redundant power supply
- Multi-Mode 1310 mm
- FIBER OPTIC CABLE G50 - G62.5 / 125 (OM1)
- Max. 5 km (1 db / km)
- Product type
Repeater
- Interfaces
Profibus
FO
RS-485
- Type
ProfiHub B4FOR+ MM Ring
- Operating voltage
12 V DC
24 V DC
- Max. operating temperature
70 °C
- Min. operating temperature
-25 °C
- Operating voltage
12-31 V DC
- Operating temperature
-25 up to 70 °C
- Dim
(W x H) 111 mm x 40 mm
- Max. current consumption
250 mA
- Height
40 mm
- Width
111 mm
- Manufacturer part #
17430
- Current consumption
250 mA at 24 VDC
Documents & Downloads
Datasheet
Datasheet 2986323 Repeater Profibus, FO, RS-485 Anybus ProfiHub B4FOR+ MM Ring Operating voltage: 12 V DC, 24 V DC
User & Safety Instructions
User & Safety Instructions 2986323 Repeater Profibus, FO, RS-485 Anybus ProfiHub B4FOR+ MM Ring Operating voltage: 12 V DC, 24 V DC
Description
The ProfiHub B4FOR+ is an economical solution for converting PROFIBUS fiber to RS 485 copper segments and vice versa. It enables reliable applications where long cable runs and isolation between devices and segments are required.
The B4FO2+ supports multiple fiber structures: Point-to-point, ring, line and star. Protocol transparency without further configuration enables direct integration into existing PROFIBUS networks.
The ProfiHub B4FOR+ is equipped with 4 galvanically isolated RS 485 channels. Each channel can operate a maximum of 31 devices.
The mechanical structure consists of a compact, stable metal housing, which can be mounted on a DIN rail. The hub has an alarm relay, redundant power supply, diagnostic LEDs and optional redundancy feature.
