Buy Rhodius 202839 LSA F1 Flap disc Grit size 40 Steel 10 pc(s)

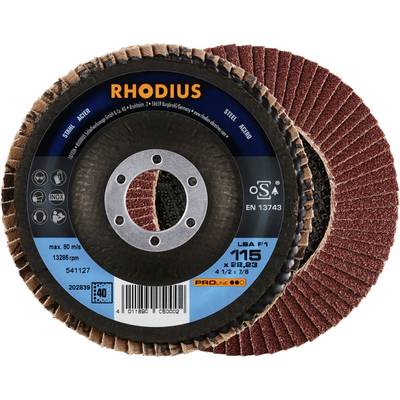

'RHODIUS' Grinding Disc, 115 x 22.23 mm. Suitable for steel and stainless steel. Label shows product identification and application instructions.

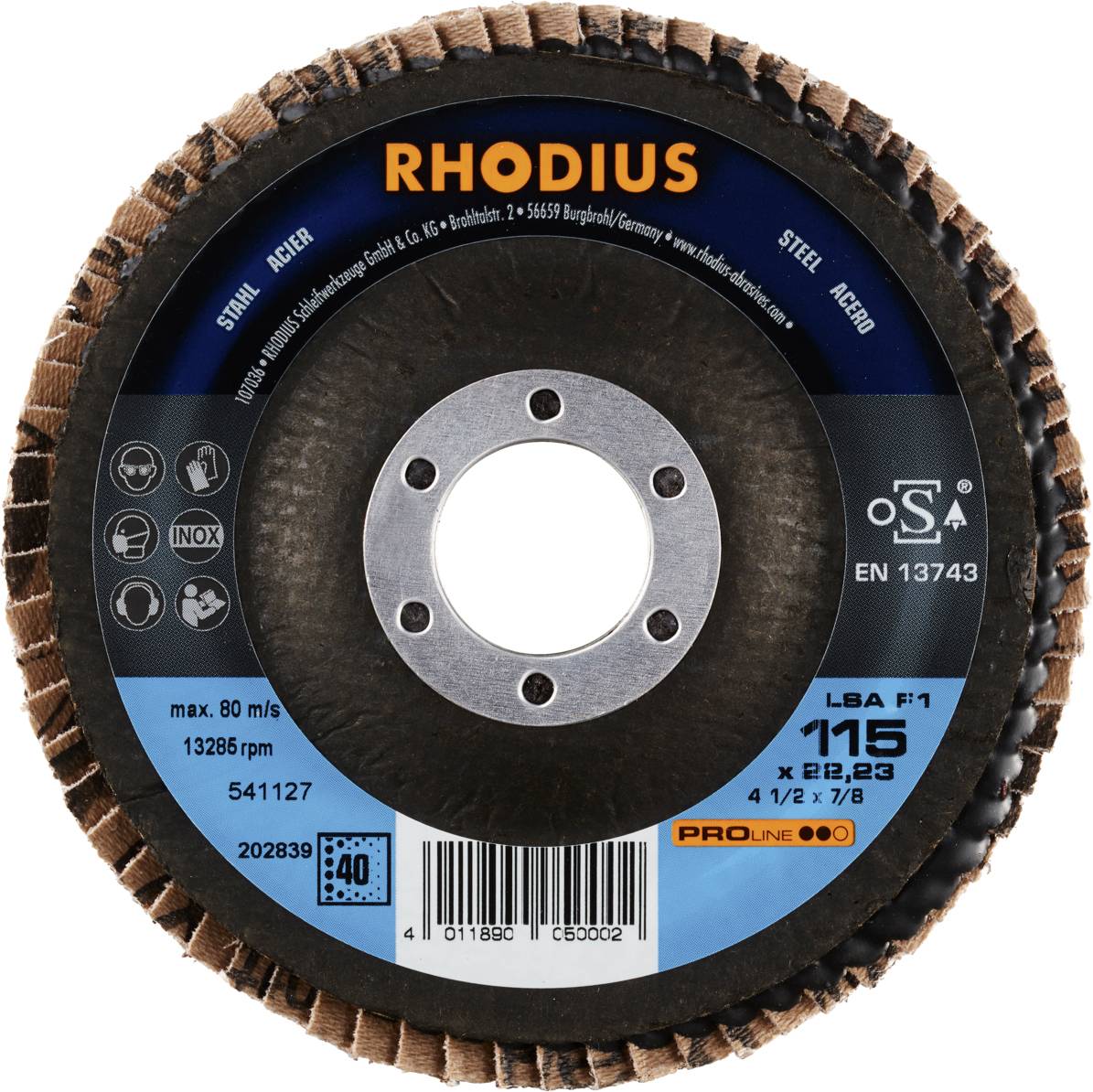

Rhodius grinding disc, model LSA F1, 115 mm diameter, for steel. Speed: max. 80 m/s, rotations: 13,285 rpm.

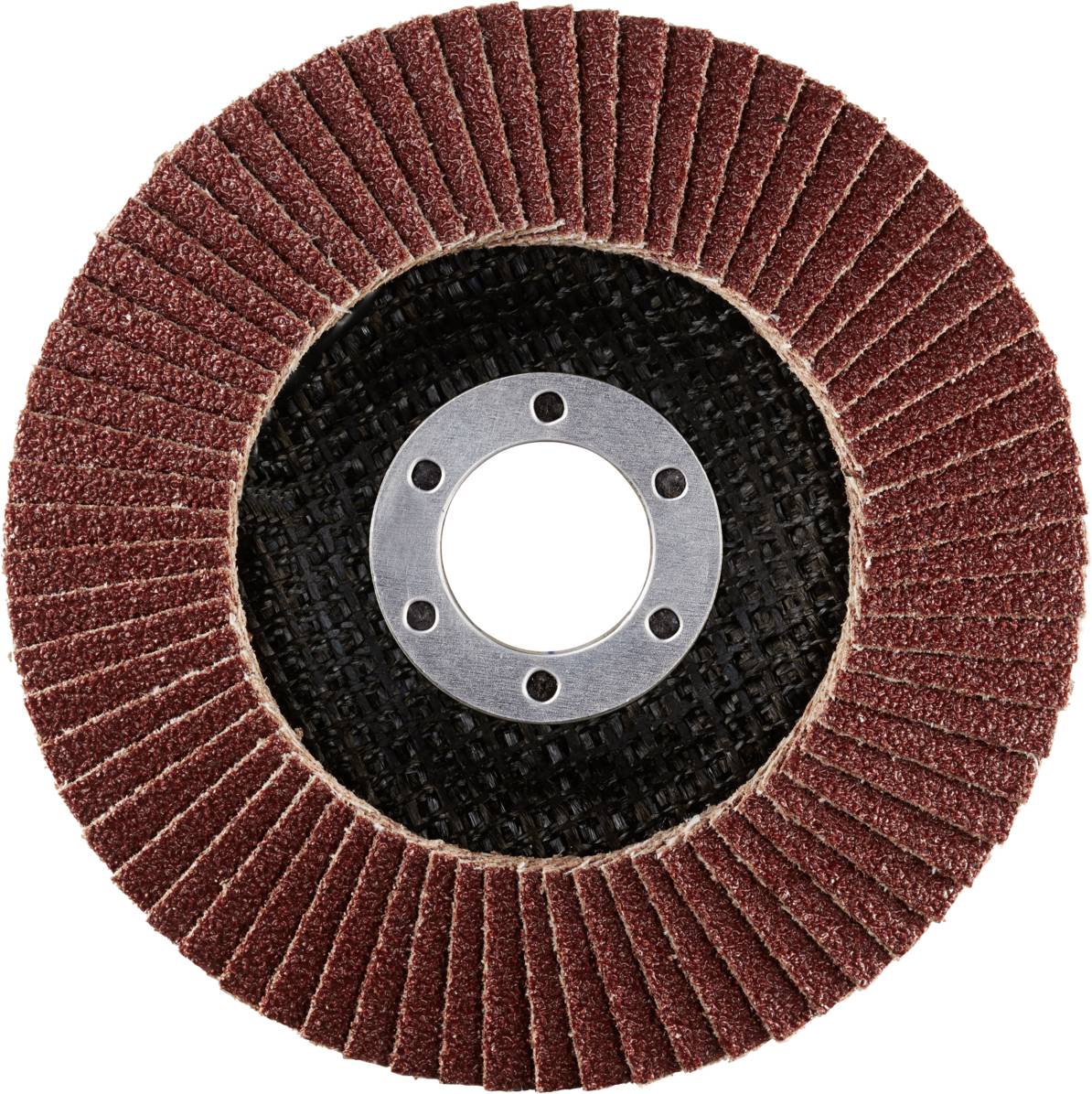

A grinding wheel with red abrasive paper, round, with a central metal mounting. It is used for smoothing or removing material.

1/3

Datasheet (PDF)

Dispatches on Thu, 17 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number (Package size 10 pc(s))

Set(s)

Total (€ 2.18 / piece)

€ 21.84

plus VAT.

Report legal concerns

Highlights & Details

Rhodius LSA F1, 10 pieces of grinding disk 115 x 22.23 mm, angular, grain 40, Proline, Made in Germany, for steel

Standard corundum-fan grinding disk with fiber support. Very good performance with steel.
Long life.
Fast machining
Resistant fiber material carrier

Technical specifications

Working speed 80 m/s.
Suitable for machines: Freehand angle grinder
Eurohole X 57.5 mm
Eurohole Y 46,385 mm
Quality level: Proline

Product type: Flap disc

Dim: (W x H x D) 115 x 115 x 16 mm

Grit size: 40

Material suitability: Steel

Rotational speed (max.): 13300 U/min

Content: 10 pc(s)

Depth: 16 mm

Height: 115 mm

Width: 115 mm

Weight: 0.080 kg

Documents & Downloads

Datasheet

Datasheet 3408428 Rhodius 202839 LSA F1 Flap disc Grit size 40 Steel 10 pc(s)

User & Safety Instructions

User & Safety Instructions 3408428 Rhodius 202839 LSA F1 Flap disc Grit size 40 Steel 10 pc(s)

Description

Suitable for machines: This fan-type grinding disc (blade) is suitable for angle grinders of all power classes. Material suitability: Rhodius fan grinding disc LSA F1 was developed specifically for the machining of stainless steel (e.g. V2A, 1.4301), steel (black steel also called structural steel, St37, S235JR, 1.0037 or carbon steel) and cast steel. Construction and production: The disc is manufactured in accordance with EN 13743 and has been tested for safety and is also OSA certified. It has a glass fiber backing plate. The user can apply Hohem contact pressure.With LSA F1, a high-quality aluminum oxide (corundum) is used as grinding grain. This is self-sharpening. All Rhodius-lamellae are also free of iron and sulfur. The lamellas are conical on this disc. The conical arrangement of the lamellas of 10° improves the ergonomics during grinding and thus facilitates the handling. Application: The special "top-size-coating" of the lamellas simultaneously provides for a still cooler grinding. Dimensions: The fan grinding disc is available in diameters 115 mm and 125 mm and, depending on the version, with FEPA grain sizes 40, 60, 80 and 120.

This text is machine translated.
