Buy Rhodius 205508 LSZ F EXTENDED Flap disc Grit size 40 Stainless steel, Steel 10 pc(s)

Rhodius grinding disc marked '125 x 22.23', suitable for 80 m/s at 12,200 rpm, compliant with EN 13743 standard.

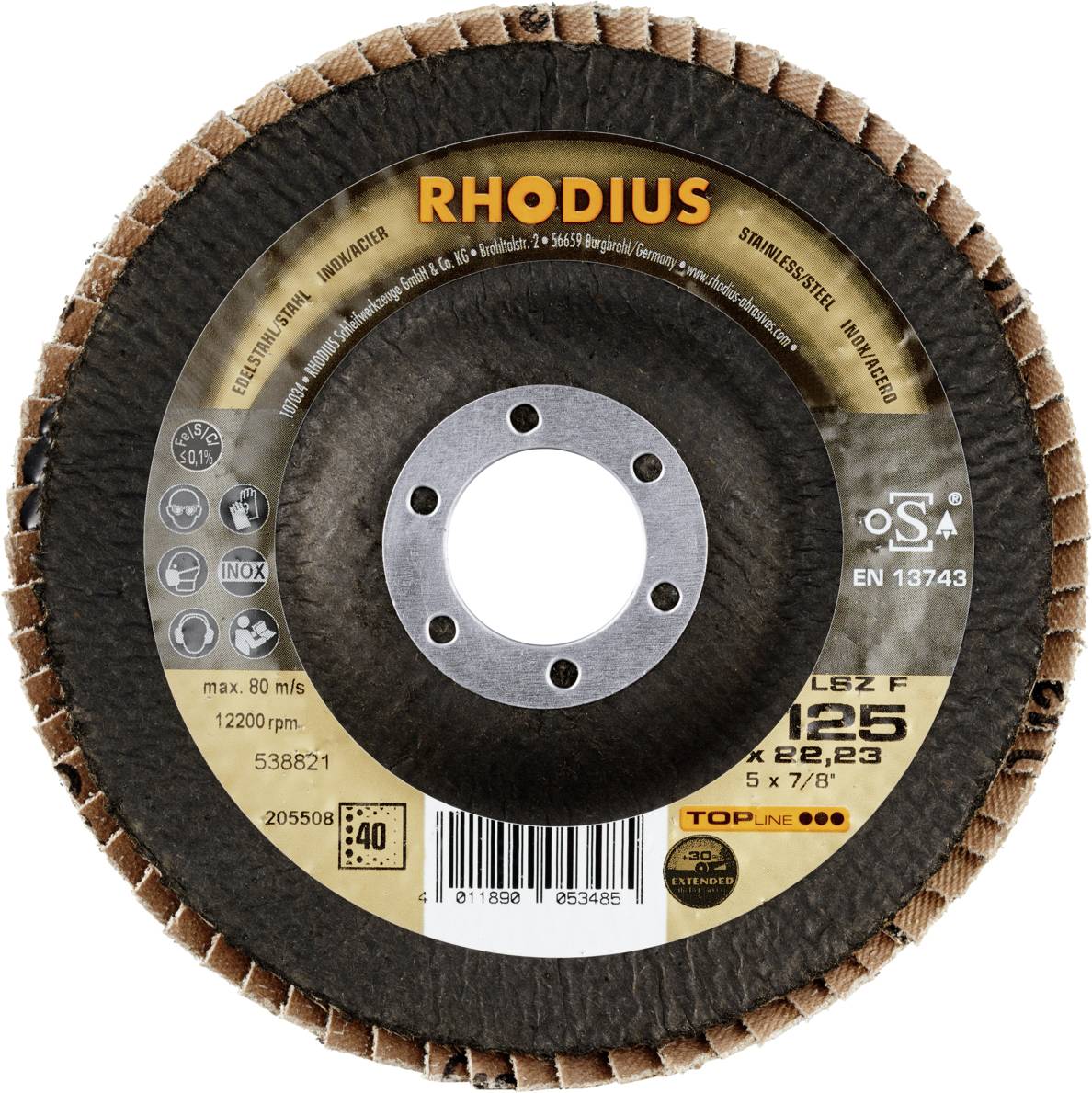

A Rhodius grinding disc with a 125 mm diameter, suitable for 12,200 RPM, marked with safety information and product codes.

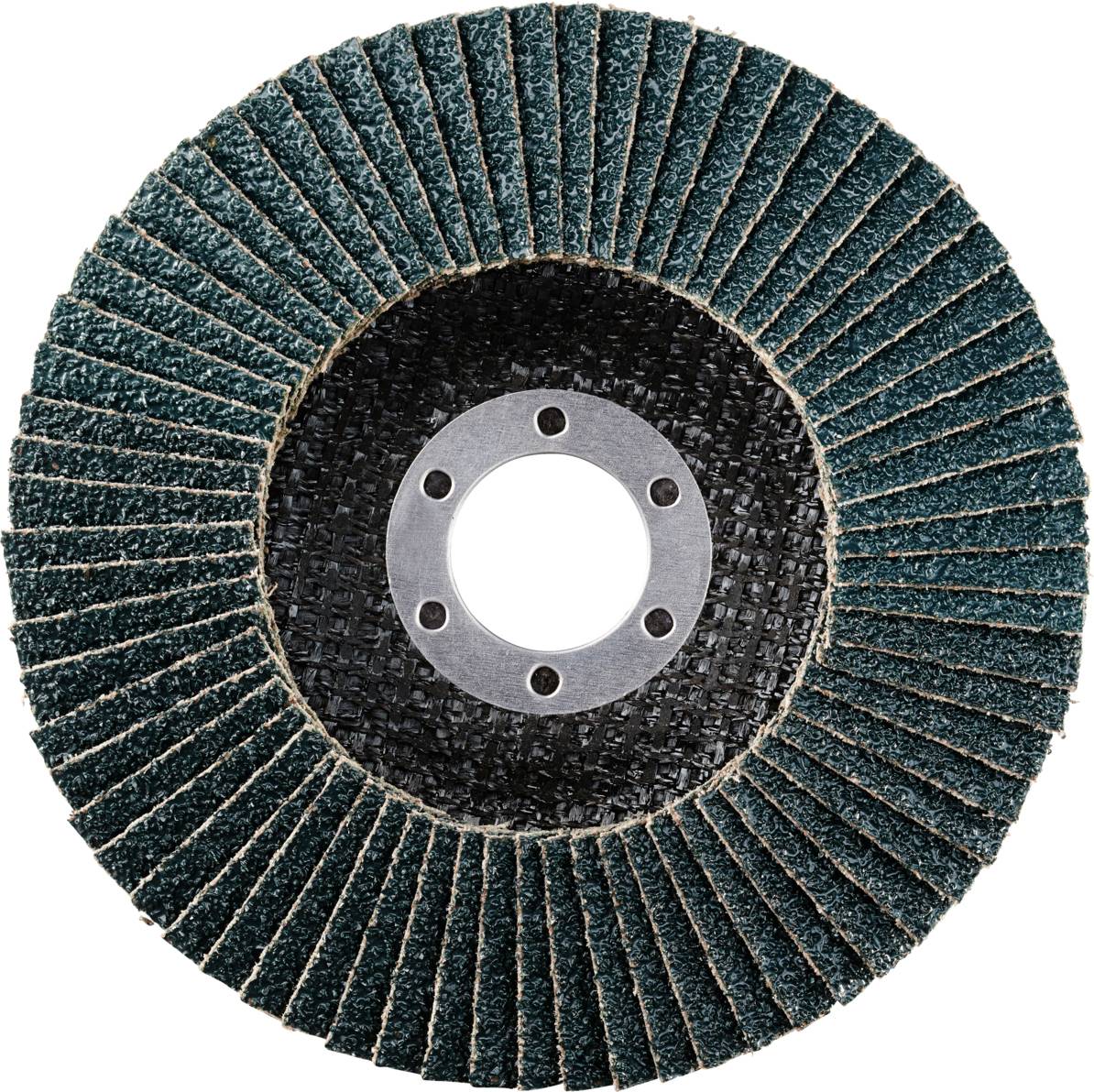

Round grinding disc with laminate-like structures in dark blue and black centre. Suitable for industrial grinding applications.

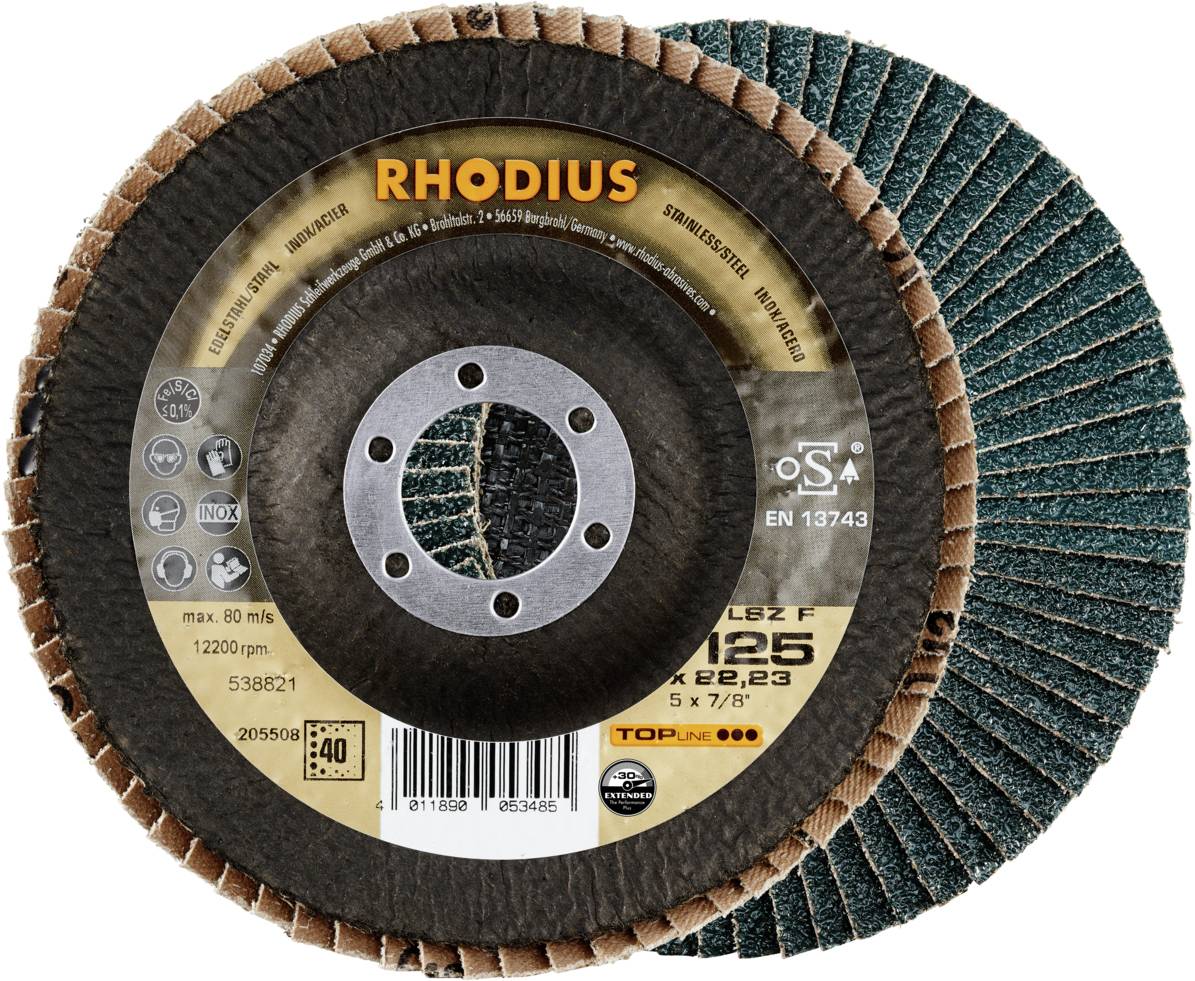

Rhodius grinding disc, model number 538821, suitable for 80 m/s and 12,200 rpm, diameter 125 mm, compliant with EN 13743.

1/4

Datasheet (PDF)

Dispatches on Mon, 19 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number (Package size 10 pc(s))

Set(s)

Total (€ 3.11 / piece)

€ 31.08

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Rhodius LSZ F EXTENDED, 10 pieces of grinding disc 125 x 22.23 mm, angular, grain 40, Topline, Made in Germany, for stainless steel, steel

Zirkon-fan grinding disc with a maximum ablation rate with a very long service life.
Highest life span
Excellent machining power
Resistant fiber material carrier

Technical specifications

Working speed 80 m/s.
Suitable for machines: Freehand angle grinder
Eurohole X 62.5 mm
Eurohole Y 51,385 mm
Technologies: EXTENDED
Quality level: Topline

Product type: Flap disc

Dim: (W x H x D) 125 x 125 x 18 mm

Grit size: 40

Material suitability: Stainless steel
Steel

Rotational speed (max.): 12250 U/min

Content: 10 pc(s)

Depth: 18 mm

Height: 125 mm

Width: 125 mm

Weight: 0.105 kg

Documents & Downloads

Datasheet

Datasheet 3408448 Rhodius 205508 LSZ F EXTENDED Flap disc Grit size 40 Stainless steel, Steel 10 pc(s)

User & Safety Instructions

User & Safety Instructions 3408448 Rhodius 205508 LSZ F EXTENDED Flap disc Grit size 40 Stainless steel, Steel 10 pc(s)

Description

Suitable for machines: This fan-type grinding disc (blade) is suitable for angle grinders of all power classes. Material suitability: The Rhodius fan grinding disc LSZ F EXTENDED was specifically developed for the machining of stainless steel (e.g. V2A, 1.4301), steel (black steel also called structural steel, St37, S235JR, 1.0037 or carbon steel) and cast steel. The disc scores here with a very high service life and continuous aggressive abrasion. Construction and production: The disc is manufactured in accordance with EN 13743 and has been tested for safety and is also OSA certified. It has a glass fiber backing plate. The user can work with Hohem contact pressure.With the LSZ F EXTENDED a high-quality zirconium is used as grinding grain. This is self-sharpening. All Rhodius-lamellae are also free of iron and sulfur. The lamellas are conical on this disc. The conical arrangement of the lamellas of 10° improves the ergonomics during grinding and thus facilitates the handling. Quality: With the LSZ F EXTENDED, the user receives the best Rhodius tool in his category. Rhodius Topline products stand for the highest level of performance and quality. Application: The LSZ F EXTENDED scores with a very long life. The special "top-size coating" of the lamellas also provides for a still cooler grinding. This premium tool is perfectly suitable for demanding grinding and offers optimal price-performance ratio. Dimensions: The fan grinding disc is available in diameters from 115 mm to 150 mm and, depending on the version, with FEPA grain sizes of 40, 60 and 80.

This text is machine translated.
