Rhodius 206265 Cutting disc (straight) 180 mm 1 pc(s) Steel
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1.92 / piece)
€ 1.92
plus VAT.
Only 6 Piece(s) available
Highlights & Details

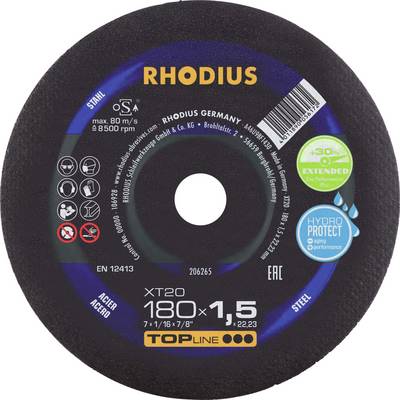

Rhodius XT20, extra-thin cut-off wheel 180 x 1.5 x 22.23 mm, shape 41, Topline, Made in Germany, for steel
- Extremely powerful thin cut-off wheel for high user requirements
- Opti emulates for steel application
- Little burr formation
- High cutting speeds.
- Low flying sparks
Technical specifications
- Product type
Cutting disc (straight)
- Content
1 pc(s)
- (Ø)
180 mm
- Type
Disc
- Bore Ø
22.23 mm
- Thickness
1.5 mm
- Rotational speed (max.)
8500 U/min
- Material suitability
Steel
- Dim
(Ø) 180 mm
Documents & Downloads
Datasheet
Datasheet 3394031 Rhodius 206265 Cutting disc (straight) 180 mm 1 pc(s) Steel
User & Safety Instructions
User & Safety Instructions 3394031 Rhodius 206265 Cutting disc (straight) 180 mm 1 pc(s) Steel
Description
Machine suitability: The cutting wheel XT20 is suitable for angle grinders in manual applications. Material suitability: The XT20 is specially designed for use on steel (black steel also known as structural steel, St37, S235JR, 1.0037 or carbon steel) and cast steel. Construction and production: The cutting wheel contains high-quality corundum (aluminum oxide) and 2 full-surface fiberglass fabric. The minimum side load for the cutting disc is according to EN 12413 and OSA 40 N, or from diameter 150 mm 50 N. The expiry date (three years) is stamped in the boring ring. A consistent quality is ensured by complex In-Pro process controls in production. In order to offer a safety Maximum, every thousand glass pieces are tested destructive.
This disc is a straight disc (form 41). Cutting discs with a straight shape enable a greater immersion depth and thus also more cuts. The RHODIUS XT20 discs in diameters 180 mm and 230 mm also benefit from the RHODIUS EXTENDED technology used here for even more durability. Quality: To be able to work even more economically (cost per cut), RHODIUS cutting discs with CE RAMICON technology are recommended. The XT20 takes advantage of its long service life (service life), even in full cut and has an especially aggressive, light and fast cut. Even the precise working in thin-walled material is not a problem. The disc is characterized here by low spark flight, little dust development and an excellent quietness. It makes the work easier and is particularly economical. The XT20 offers the user an optimum price-performance ratio.
This RHODIUS quality tool is particularly suitable for cutting construction steel, tool steel, spring steel, thin-walled sheets, high-alloy steel, high-strength plate, cable ducts, supports, profiles, plates and cross beams. Dimensions: The extra-thin cutting wheel with a disc width from 1.0 mm to 1.9 mm is available in diameters from 115 mm to 230 mm. Industries: It is the perfect tool for the various applications and challenges of building locks as well as in plant engineering, container construction, tank and container construction, construction steel, pipe construction and also on assembly.
This text is machine translated.
This disc is a straight disc (form 41). Cutting discs with a straight shape enable a greater immersion depth and thus also more cuts. The RHODIUS XT20 discs in diameters 180 mm and 230 mm also benefit from the RHODIUS EXTENDED technology used here for even more durability. Quality: To be able to work even more economically (cost per cut), RHODIUS cutting discs with CE RAMICON technology are recommended. The XT20 takes advantage of its long service life (service life), even in full cut and has an especially aggressive, light and fast cut. Even the precise working in thin-walled material is not a problem. The disc is characterized here by low spark flight, little dust development and an excellent quietness. It makes the work easier and is particularly economical. The XT20 offers the user an optimum price-performance ratio.
This RHODIUS quality tool is particularly suitable for cutting construction steel, tool steel, spring steel, thin-walled sheets, high-alloy steel, high-strength plate, cable ducts, supports, profiles, plates and cross beams. Dimensions: The extra-thin cutting wheel with a disc width from 1.0 mm to 1.9 mm is available in diameters from 115 mm to 230 mm. Industries: It is the perfect tool for the various applications and challenges of building locks as well as in plant engineering, container construction, tank and container construction, construction steel, pipe construction and also on assembly.
This text is machine translated.
Scope of delivery
- 1 pieces XT20 180 x 1.5 x 22.23 mm
