Buy Rhodius 209812 JUMBO SPEED Flap disc Grit size 40 Stainless steel, Steel 10 pc(s)

Grinding disc with 'RHODIUS' branding, model 'Jumbo Speed', diameter 180 mm. Reddish-brown surface, packaging print visible.

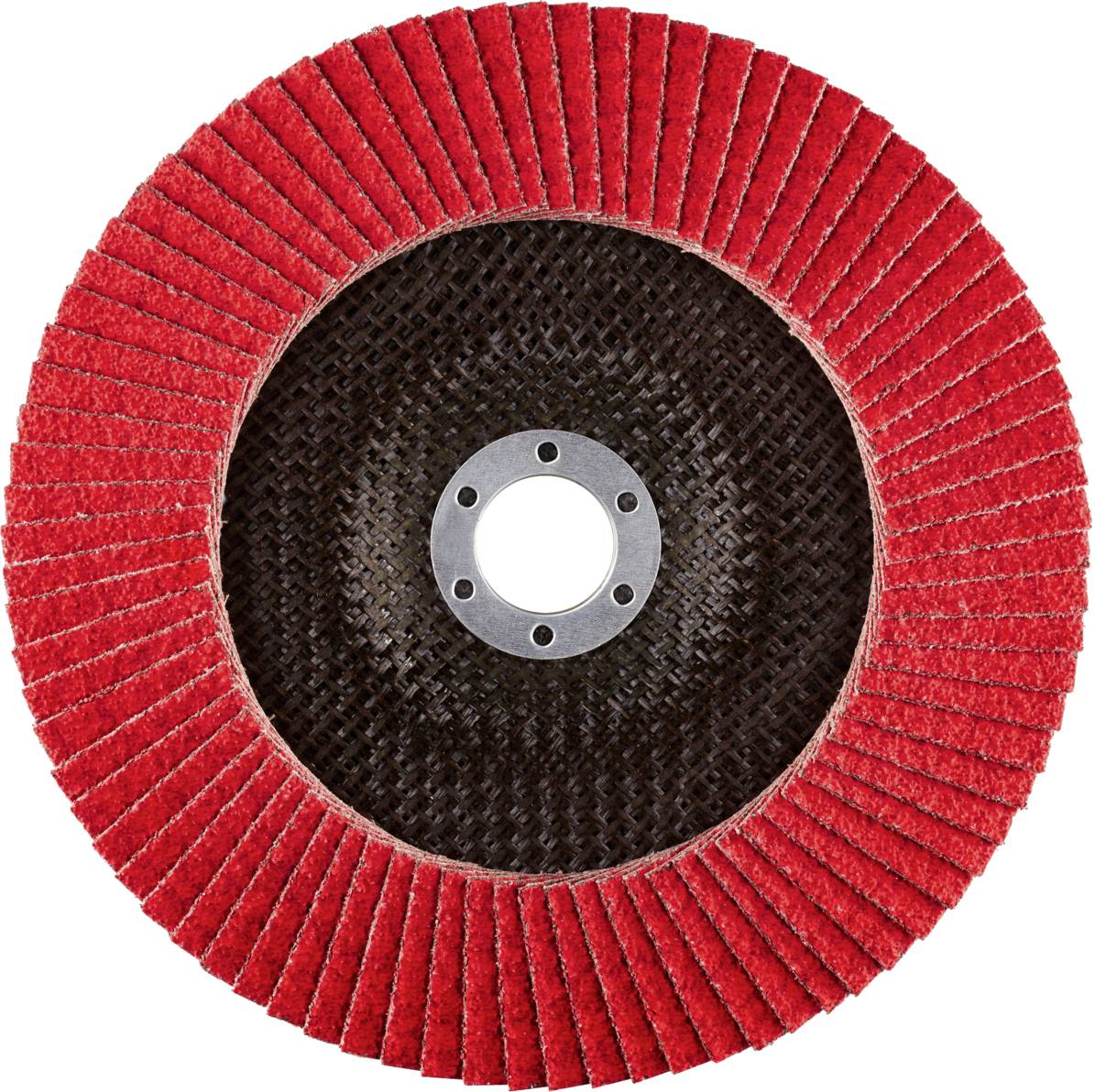

A red grinding disc with radially arranged lamellae and a central fixing hole, suitable for grinding work on metal.

1/2

Datasheet (PDF)

Dispatches on Thu, 17 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 7.90 / piece)

€ 78.98

plus VAT.

Report legal concerns

Highlights & Details

Rhodius Jumbo SPEED, 10 pieces of grinding disc 180 x 22.23 mm, angled, grain 40, Topline, Made in Germany, for stainless steel, steel

Fast and aggressive grinding with very high cutting performance due to the large contact surface with extra long lamellas.
High machining power thanks to ceramic grain
Particularly suitable for coated steel, casting surfaces and titanium
Especially good in edge grinding

Technical specifications

Working speed 80 m/s.
Suitable for machines: Freehand angle grinder
Eurohole X 90 mm
Eurohole Y 78,885 mm
Technologies: CERAMICON,EXTENDED
Quality level: Topline
Suitable for angle grinders, all power classes. (Maximum performance with high-performance machines)
Material suitability: Specially designed for stainless steel, black steel, structural steel and cast steel.

Product type: Flap disc

Dim: (W x H x D) 180 x 180 x 14 mm

Grit size: 40

Material suitability: Stainless steel
Steel

Rotational speed (max.): 8500 U/min

Content: 10 pc(s)

Depth: 14 mm

Height: 180 mm

Width: 180 mm

Weight: 0.225 kg

Documents & Downloads

Datasheet

Datasheet 3408114 Rhodius 209812 JUMBO SPEED Flap disc Grit size 40 Stainless steel, Steel 10 pc(s)

User & Safety Instructions

User & Safety Instructions 3408114 Rhodius 209812 JUMBO SPEED Flap disc Grit size 40 Stainless steel, Steel 10 pc(s)

Description

Suitable for machines: This fan-type grinding disc (blade) is suitable for angle grinders of all power classes. With powerful drives the user can achieve the full performance performance of the disc. Material suitability: The Rhodius fan grinding disc Jumbo SPEED EXTEND was specifically developed for the machining of stainless steel (e.g. V2A, 1.4301), steel (black steel also called structural steel, St37, S235JR, 1.0037 or carbon steel) and cast steel. The disc scores here with a very high service life and continuous aggressive abrasion. Construction and production: The disc is manufactured in accordance with EN 13743 and has been tested for safety and is also OSA certified. It has a glass fiber backing plate. The user can apply Hohem pressure.With Jumbo SPEED EXTENSION, a high-quality ceramic grain (sintered corundum) is used as a grinding grain. This is self-sharpening. All Rhodius-lamellae are also free of iron and sulfur. The lamellas are conical on this disc. The conical arrangement of the lamellas of 10° improves the ergonomics during grinding and thus facilitates the handling. Quality: The Jumbo SPEED EXTENDED gives the user the best Rhodius tool in his category. Rhodius Topline products stand for the highest level of performance and quality. Application: The Jumbo SPEED EXTENDED impresses through high shelf life with extremely aggressive abrasion and scores with a very high lifespan. The special "top-size coating" of the lamellas also provides for a still cooler grinding. This premium tool is perfectly suitable for demanding grinding and for optimal price performance ratio. In applications, the Jumbo SPEED EXTENSION fan grinding disc scores with its long, overlapping louvers. These provide for a noticeable increase in performance and an aggressive erosion. Dimensions: The fan grinding disc is available in diameters 115 mm and 125 mm, depending on the version with FEPA grain sizes 40, 60 and 80. In addition, this fan grinding disc is available in diameters 150 mm and 180 mm with the FEPA grain size 40. Note: Rhodius also produces this fan grinding disc for angle grinders with the X-LOCK quick release system.

This text is machine translated.
