Highlights & Details

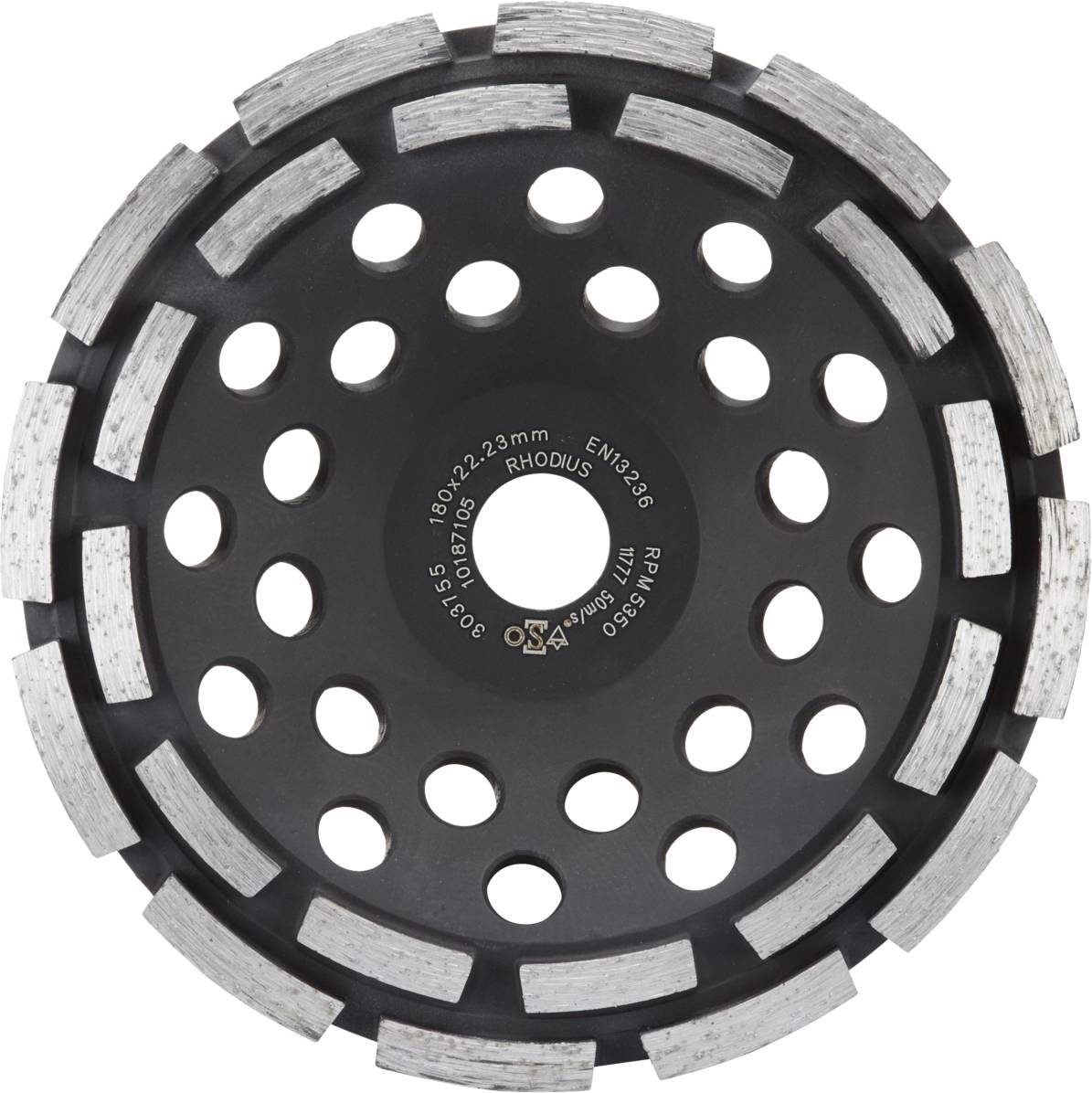

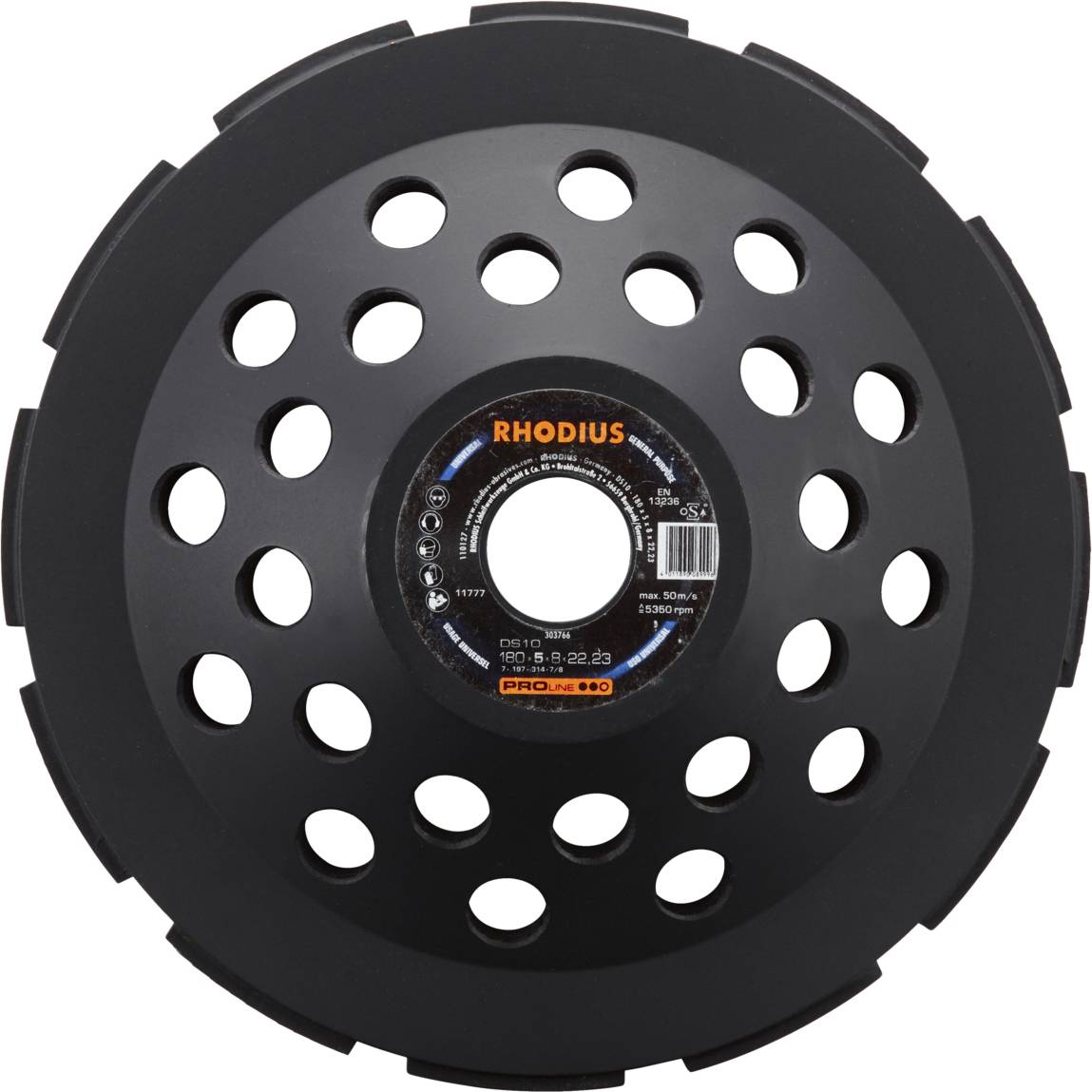

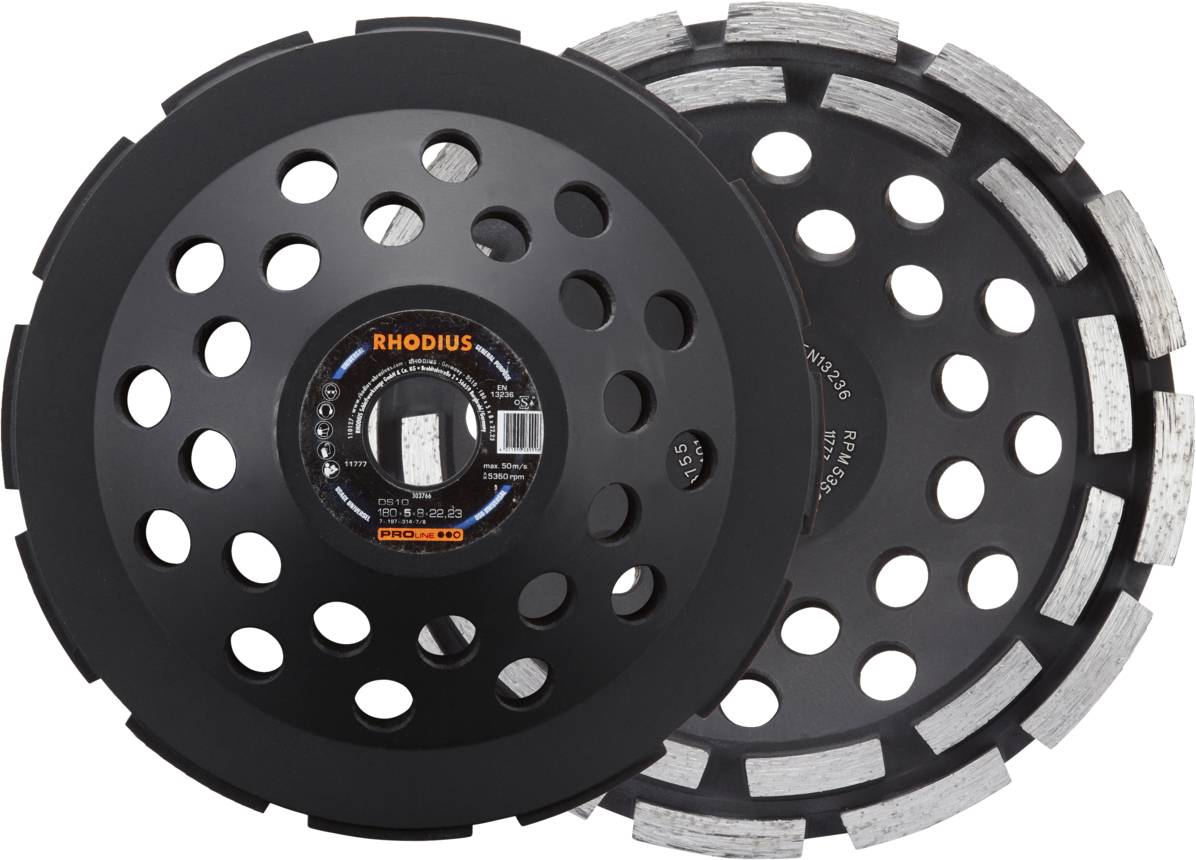

Rhodius DS10, diamond grinding pot 180 x 5.0 x 8.0 x 22.23 mm, diamond grinding pot, Proline, for concrete

With the DS10 and its high diamond concentration an aggressive grinding over a longer period is possible without any problem.
High diamond concentration
Long operating life
Aggressive grinding

Technical specifications

Working speed 80 m/s.
Suitable for machines: Freehand angle grinder
Eurohole X 97.5 mm
Eurohole Y 13 mm
Quality level: Proline

Product type: Diamond

Material suitability: Concrete

Content: 1 pc(s)

Depth: 5 cm

Height: 19.5 cm

Width: 19.5 cm

Rotational speed (max.): 8500 U/min

Weight: 900 g

Documents & Downloads

Datasheet

Datasheet 3407587 Rhodius 303766 Rhodius DS10, diamond grinding pot 180 x 5.0 x 8.0 x 22.23 mm, diamond grinding pot, Proline, for concret

User & Safety Instructions

User & Safety Instructions 3407587 Rhodius 303766 Rhodius DS10, diamond grinding pot 180 x 5.0 x 8.0 x 22.23 mm, diamond grinding pot, Proline, for concret

Description

Machine suitability: The diamond grinding pot DS10 is suitable for manual use with the angle grinder. He can fully play his strengths on machines of all power classes. Material suitability: The DS10 has been specifically designed for the machining of hard wall tiles, reinforced concrete, reinforced concrete, concrete, pawls, Developed in hard stone, pavement, sandstone, hollow block stones and fresh concrete.This Rhodius quality tool is also very well suited for machining hard sand lime bricks, hard concrete stone as well as block stones. Construction and production: The tool is tested according to EN13236 and OSA. Thanks to the high-quality industrial diamonds the DS10 is especially powerful. The diamond grinding pot is laser welded. Dimensions: This grinding pot is available in diameters from 100 mm to 180 mm.
