Rhodius 353315 Diamond cutting disc 150 mm 1 pc(s) Concrete
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 214.29 / piece)
€ 214.29
plus VAT.
Only 1 Piece(s) available
Highlights & Details

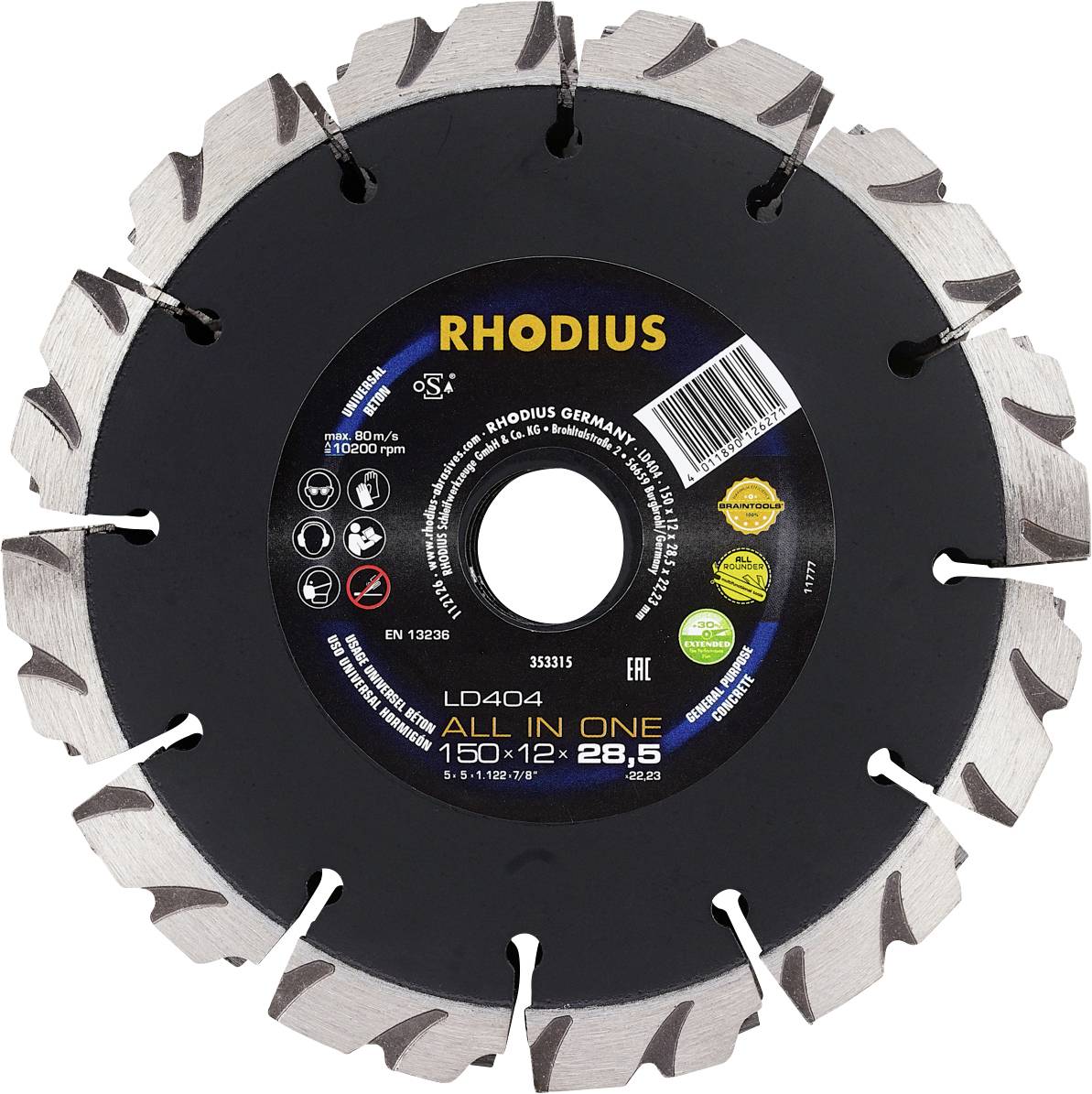

RHODIUS LD404 ALL IN ONE, diamond milling disc 150 x 12.0 x 28.5 x 22.23 mm, 4pc milling unit, Topline, for Beto n
- There is no need to unclamp the center section
- Reduction of dirt and dust
- Up to 50% time saving due to milling in one operation
- Allows easy milling of wall slots (up to 40 mm slot depth)
Technical specifications
- Product type
Diamond cutting disc
- Content
1 pc(s)
- (Ø)
150 mm
- Type
Disc
- Bore Ø
22.23 mm
- Thickness
28.5 mm
- Rotational speed (max.)
10185 U/min
- Material suitability
Concrete
- Dim
(Ø) 150 mm
Documents & Downloads
Datasheet
Datasheet 3393935 Rhodius 353315 Diamond cutting disc 150 mm 1 pc(s) Concrete
User & Safety Instructions
User & Safety Instructions 3393935 Rhodius 353315 Diamond cutting disc 150 mm 1 pc(s) Concrete
Description
Slopes in one operation. The further developed ALL IN ONE is perfectly equipped with a combination of 1+2 or 2+2 diamond qualities. The turbo segments of the straight diamond discs on the outside allow for particularly clean and straight slots. The wavy-shaped geometry of the inner diamond separator plate/s provides an optimally clean wall slot. LD403S for 20 mm and LD404 for 30 mm wide slots.
Machine suitability: The LD404 ALL IN ON diamond disc is suitable for manual use with the wall slit milling cutter. Particularly on high-performance machines, it can fully exploit its strengths. Material suitability: The LD404 ALL IN ONE was specifically designed for the machining of hard brick, Beto n, paver clinker, medium-hard marble brick, hard Beto stone, Block bricks and hollow blocks.This RHODIUS quality tool is also very well suited for the treatment of hard lime sandstone and sandstone. Construction and production: The LD404 ALL IN ONE has a segmented cutting edge. Thus a very high cutting speed with simultaneous maximum service life is achieved. The segments are also arranged in an offset order. The tool is tested according to EN13236 and OSA and can be used in dry cutting.Thanks to the high-quality industrial diamonds and a very high diamond concentration, the LD404 ALL IN ONE is especially powerful. The glass is laser-welded and already completely mounted. Quality: The LD404 ALL IN ONE gives the user the best RHODIUS tool in his category. RHODIUS Topline products stand for the highest level of performance and quality. Dimensions: This diamond wall slot is available in diameters of 125 mm and 150 mm.
This text is machine translated.
Machine suitability: The LD404 ALL IN ON diamond disc is suitable for manual use with the wall slit milling cutter. Particularly on high-performance machines, it can fully exploit its strengths. Material suitability: The LD404 ALL IN ONE was specifically designed for the machining of hard brick, Beto n, paver clinker, medium-hard marble brick, hard Beto stone, Block bricks and hollow blocks.This RHODIUS quality tool is also very well suited for the treatment of hard lime sandstone and sandstone. Construction and production: The LD404 ALL IN ONE has a segmented cutting edge. Thus a very high cutting speed with simultaneous maximum service life is achieved. The segments are also arranged in an offset order. The tool is tested according to EN13236 and OSA and can be used in dry cutting.Thanks to the high-quality industrial diamonds and a very high diamond concentration, the LD404 ALL IN ONE is especially powerful. The glass is laser-welded and already completely mounted. Quality: The LD404 ALL IN ONE gives the user the best RHODIUS tool in his category. RHODIUS Topline products stand for the highest level of performance and quality. Dimensions: This diamond wall slot is available in diameters of 125 mm and 150 mm.
This text is machine translated.
Scope of delivery
- 1 pieces LD404 ALL IN ONE 150 x 12.0 x 28.5 x 22.23 mm
