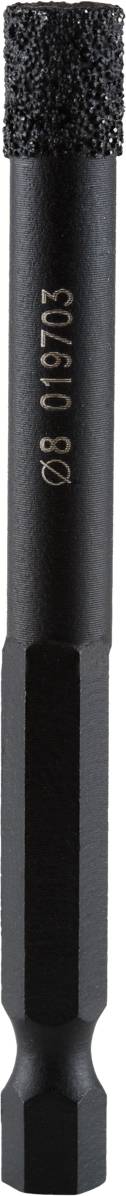

Rhodius CD40 303856 Drill bit 8 mm diamond-tipped 1 pc(s)
EAN:
Part number:
Item no:
Product type
Drill bit
Drill hole Ø
8 mm
Material
Diamond
Material suitability
Tiles
Ceramic
Tool holder
1/4" (6.3 mm)
Datasheet (PDF)
Number
Total (€ 33.61 / piece)
€ 33.61
plus VAT.
Highlights & Details
Rhodius CD40, tile drill crown 8 x 6-kant - 1/4" bit holder, Proline, for tiles/ceramic
- The CD40 tile drills are specially designed for use on drills with 1/4" bit holder. The inner wax at smaller diameters makes a cool cut possible at high cutting speed. The risk of splitting the edge of the drill hole can thus be reduced to a minimum. At the same time, the CD40 convinces the user with a very high service life.
- Cool cut through cooling inner wax
- Very long tool life
- High cutting speeds.
- Clean drill edge
Technical specifications
- Machine suitable: Drill
- Eurohole X 52.5 mm
- Eurohole Y 7.5 mm
- Quality level: Proline
- Product type
Drill bit
- Drill hole Ø
8 mm
- Material
Diamond
- Material properties
diamond-tipped
- Material suitability
Tiles
Ceramic
- Tool holder
1/4" (6.3 mm)
- Height
140 mm
- Width
105 mm
- Weight
0.030 kg
- Depth
105 mm
- Rotational speed (max.)
3000 U/min
Documents & Downloads
Datasheet
Datasheet 3407536 Rhodius CD40 303856 Drill bit 8 mm diamond-tipped 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3407536 Rhodius CD40 303856 Drill bit 8 mm diamond-tipped 1 pc(s)
Description
Machine suitability: The tile drill CD 40 is particularly suitable for use on drills with 1/4'' bit holder. He can fully play his strengths on machines of all power classes. Material suitability: The CD40 has been specifically developed for the machining of glazed tiles and marble.This Rhodius quality tool is also very suitable for machining granite as well as hard-fired tiles. Construction and production: The inner wax makes for a cool cut at high cutting speed. This is a decisive advantage especially for small diameters. The risk of splitting the bore edge can be reduced to a minimum. In addition, the Rhodius CD40 tile drill bit convinces the user with a very high service life. The tool is tested according to EN13236 and OSA.Thanks to the high-quality industrial diamonds the CD40 is especially powerful. The tile drill is laser-welded. Dimensions: This tile drill is available in the dimensions 6 x 6 kant to 14 x 6 kant.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 pieces CD40 8 x 6-kant - 1/4" bit-holder
