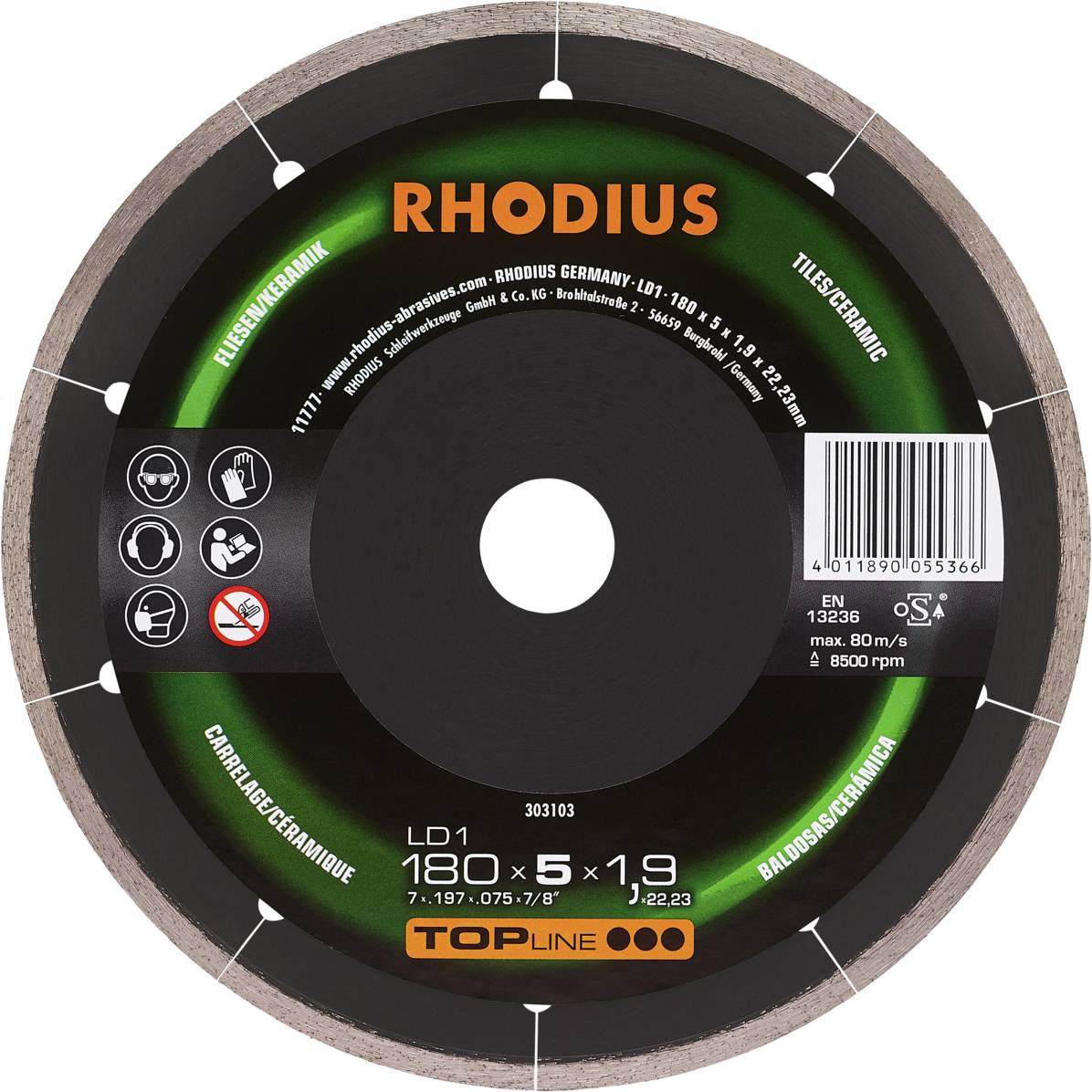

Buy Rhodius LD1 303103 Diamond cutting disc 1 pc(s) Tiles, Ceramic

A Rhodius cutting disc for tiles, ceramics and marble. With pictograms for use, CE marking and technical specifications.

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Total (€ 33.61 / piece)

€

Report legal concerns

Highlights & Details

Rhodius LD1 303103 Diamond cutting disc 1 pc(s) Tiles, Ceramic

The LD1 provides for a cool, fast and especially precise cut - with smooth cut edge and clean cut edge. At the same time, the development of dust in the dry cut is also reduced to a minimum. Suitable for wet and dry cut.
Low dust production
Extra-thin cutting wheel for high cutting speed and precise cutting
Smooth cutting edge for a clean cutting edge
Wet and dry cut

Technical specifications

Working speed 80 m/s.
Suitable for machines: Freehand angle grinder
Eurohole X 95 mm
Eurohole Y 7.5 mm
Quality level: Topline

Product type: Diamond cutting disc

Content: 1 pc(s)

Rotational speed (max.): 8500 U/min

Material suitability: Tiles
Ceramic

Dim: (W x H x D) 190 x 220 x 12 mm

Depth: 12 mm

Height: 220 mm

Width: 190 mm

Weight: 0.250 kg

Documents & Downloads

Datasheet

Datasheet 3408332 Rhodius LD1 303103 Diamond cutting disc 1 pc(s) Tiles, Ceramic

User & Safety Instructions

User & Safety Instructions 3408332 Rhodius LD1 303103 Diamond cutting disc 1 pc(s) Tiles, Ceramic

Description

Machine suitability: The diamond cutting disc LD1 is suitable for manual use with the angle grinder. It can play its full strengths on machines of all power classes and especially on high-performance machines. Material suitability: The LD1 has been specifically developed for the machining of porcelain, ceramic or porcelain and marble.This Rhodius quality tool is also very suitable for machining granite, glazed tiles and hard-burned tiles. Construction and production: The LD1 has a segmented cutting edge. Thus a very high cutting speed with simultaneous maximum service life is achieved. The tool is tested according to EN13236 and OSA and can be used in wet cut and also in dry cut.Thanks to the high-quality industrial diamonds and a very high diamond concentration the LD1 is especially powerful. The disc is laser-welded. Quality: The LD1 gives the user the best Rhodius tool in his category. Rhodius Topline products stand for the highest level of performance and quality. Dimensions: This diamond cutting disc is available in diameters from 115 mm to 230 mm.

This text is machine translated.
