Rhodius LD40 302514 Diamond cutting disc 1 pc(s) Concrete
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 75.62 / piece)
€ 75.62
plus VAT.
14-day return policy included
Highlights & Details

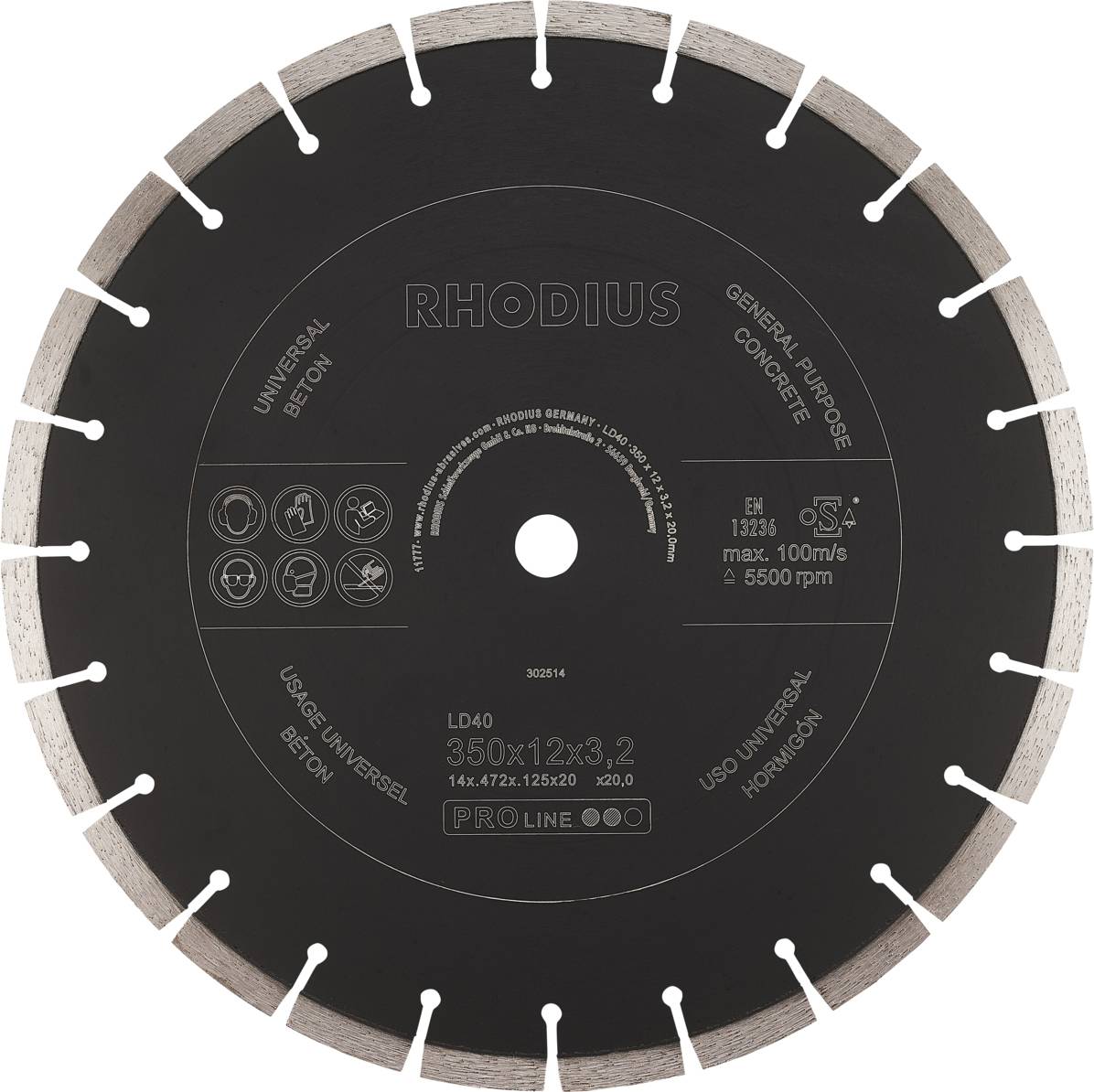

Rhodius LD40, diamond cutting disc 350 x 12.0 x 3.2 x 20.00 mm, straight, proline, for concrete
- The LD40 enables high cutting speeds and allows short separation times in a wide range of applications from concrete to granite. The 12 mm high diamond segments are laser-welded on the steel core of the disc in the LD40. Suitable for wet and dry cut.
- 12 mm high segments
- Wide range of applications
- High cutting speeds.
- Wet and dry cut
- laser-welded
Technical specifications
- Working speed 100 m/s.
- Machine suitability: Table saw, petrol separator
- Eurohole X 180 mm
- Eurohole Y 7.5 mm
- Quality level: Proline
- Product type
Diamond cutting disc
- Features
Diamond
- Content
1 pc(s)
- Type
Disc
- Rotational speed (max.)
5500 U/min
- Material suitability
Concrete
- Dim
(W x H x D) 360 x 390 x 12 mm
- Depth
12 mm
- Height
390 mm
- Width
360 mm
- Weight
1.800 kg
Documents & Downloads
Datasheet
Datasheet 3408343 Rhodius LD40 302514 Diamond cutting disc 1 pc(s) Concrete
User & Safety Instructions
User & Safety Instructions 3408343 Rhodius LD40 302514 Diamond cutting disc 1 pc(s) Concrete
Description
Machine suitability: The LD40 diamond cutting disc is suitable for manual use as well as for stationary use: For angle grinders, petrol separators and table saws (depending on diameter). It can play its full strengths on machines of all power classes. Material suitability: The LD40 was specifically designed for the machining of concrete, paver, hard rock, pavement, concrete pipes, This Rhodius quality tool is also particularly suitable for machining granite, hard concrete with surcharges, paving stones, hard masonry brick, reinforced concrete and reinforced concrete, hard limestone, hard concrete, brick, block stones, concrete roofing tiles as well as hollow blocks. Construction and production: The LD40 has a segmented cutting edge. Thus a very high cutting speed with simultaneous maximum service life is achieved. The tool is tested according to EN13236 and OSA and can be used in wet cut and also in dry cut.Thanks to the high-quality industrial diamonds the LD40 is especially powerful. The disc is laser-welded. Dimensions: This diamond cutting disc is available in diameters from 115 mm to 400 mm.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 pieces LD40 350 x 12.0 x 3.2 x 20.00 mm
