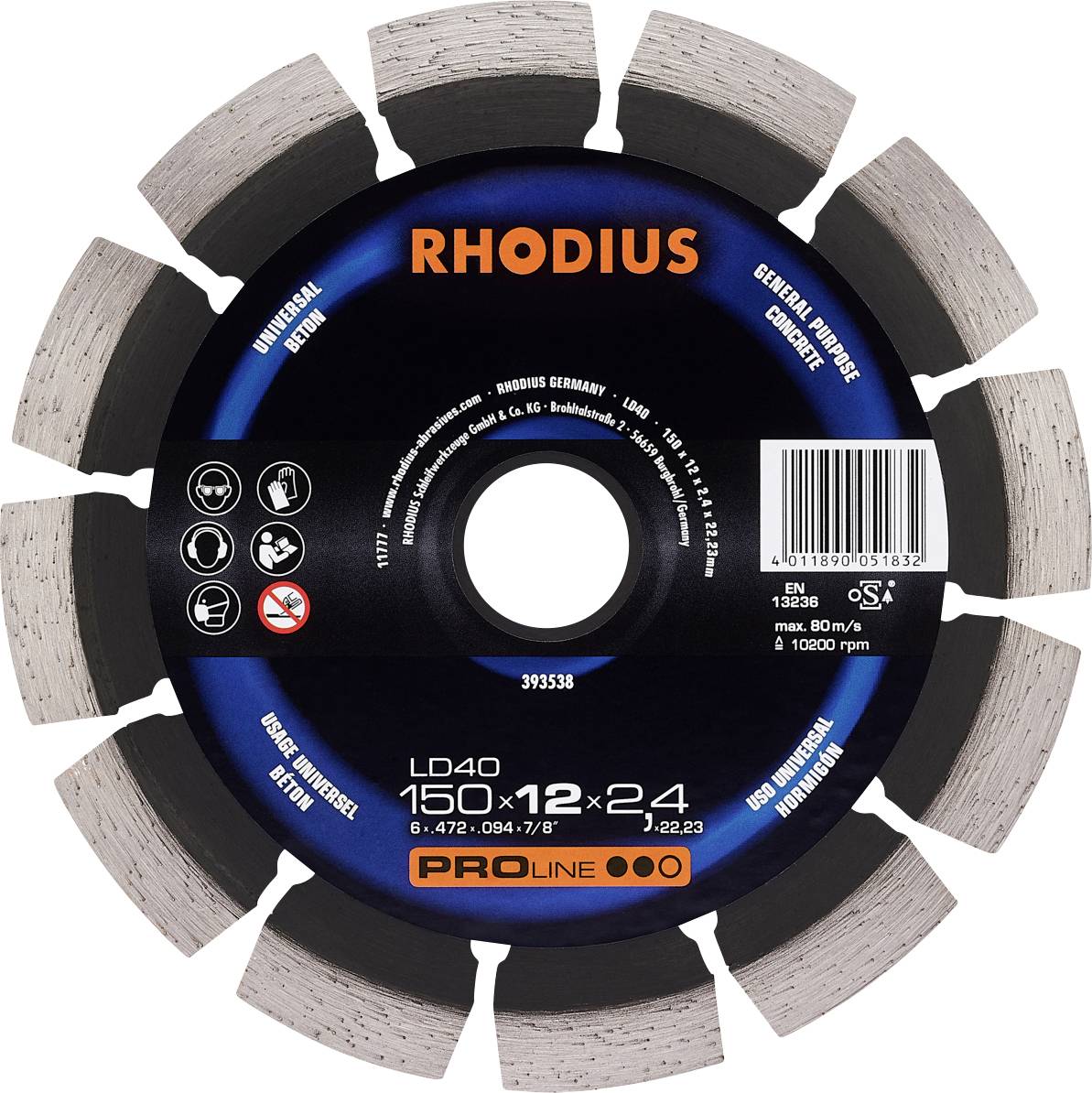

Rhodius 393538 Diamond cutting disc 150 mm 1 pc(s) Concrete
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.96
€ 18.36
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Rhodius LD 40, diamond cut-off wheel 150 x 12.0 x 2.4 x 22.23 mm, straight, Proline, for Beto n
- 12 mm high segments
- Wide range of applications
- High cutting speeds.
- Wet and dry cut
- Laser-welded
Technical specifications
- Product type
Diamond cutting disc
- Content
1 pc(s)
- (Ø)
150 mm
- Type
Disc
- Bore Ø
22.23 mm
- Thickness
2.4 mm
- Rotational speed (max.)
10200 U/min
- Material suitability
Concrete
- Dim
(Ø) 150 mm
- Factory colour
Multicolour
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3394013 Rhodius 393538 Diamond cutting disc 150 mm 1 pc(s) Concrete
User & Safety Instructions
User & Safety Instructions 3394013 Rhodius 393538 Diamond cutting disc 150 mm 1 pc(s) Concrete
Description
The LD40 enables high cutting speeds and permits short cutting times in a wide range of applications from Beto n to granite. The 12 mm high diamond segments are laser-welded on the steel core of the disc in the LD40. Suitable for wet and dry cut.
Machine suitability: The LD40 diamond cutting disc is suitable for manual use as well as for stationary use: For angle grinders, petrol separators and table saws (depending on diameter). It can play its full strengths on machines of all power classes. Material suitability: The LD40 was specifically designed for the machining of Beto n, paver, hard rock, pavement, Beto pipes, Kerbs and medium-hard marble tiles developed.
This RHODIUS quality tool is also suitable for machining granite, hard Beto n with surcharges, paving stones, hard brick, reinforced Beto n and reinforced concrete, hard limestone, hard Beto brick, Block stones, roofing tiles made from Beto n as well as hollow blocks. Construction and production: The LD40 has a segmented cutting edge. Thus a very high cutting speed with simultaneous maximum service life is achieved. The tool is tested according to EN13236 and OSA and can be used in wet cut and also in dry cut.
The LD40 is particularly powerful thanks to high-quality industrial diamonds. The disc is laser-welded. Dimensions: This diamond cutting disc is available in diameters from 115 mm to 400 mm.
This text is machine translated.
Machine suitability: The LD40 diamond cutting disc is suitable for manual use as well as for stationary use: For angle grinders, petrol separators and table saws (depending on diameter). It can play its full strengths on machines of all power classes. Material suitability: The LD40 was specifically designed for the machining of Beto n, paver, hard rock, pavement, Beto pipes, Kerbs and medium-hard marble tiles developed.
This RHODIUS quality tool is also suitable for machining granite, hard Beto n with surcharges, paving stones, hard brick, reinforced Beto n and reinforced concrete, hard limestone, hard Beto brick, Block stones, roofing tiles made from Beto n as well as hollow blocks. Construction and production: The LD40 has a segmented cutting edge. Thus a very high cutting speed with simultaneous maximum service life is achieved. The tool is tested according to EN13236 and OSA and can be used in wet cut and also in dry cut.
The LD40 is particularly powerful thanks to high-quality industrial diamonds. The disc is laser-welded. Dimensions: This diamond cutting disc is available in diameters from 115 mm to 400 mm.
This text is machine translated.
Scope of delivery
- 1 pieces LD.40 150 x 12.0 x 2.4 x 22.23 mm
