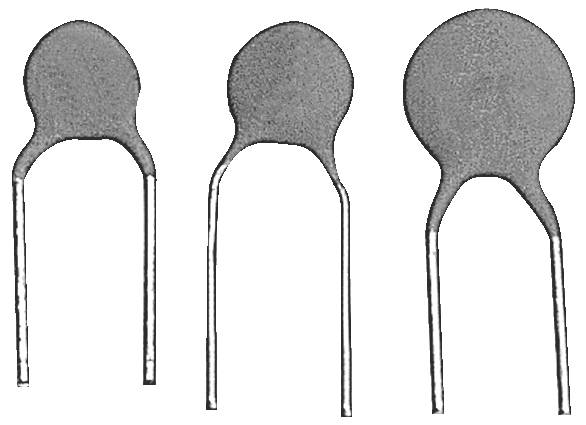

RICHWELL Ceramic capacitor Radial lead 1.5 nF 500 V DC 10 % (Ø) 7.1 mm 1 pc(s) Bulk
Part number:
Item no:
Packaging type
Bulk
Product type
Ceramic capacitor
Type
Radial lead
Nominal voltage
500 V DC
Capacity (elec.)
1.5 nF
Datasheet (PDF)
Highlights & Details
Richwell Ker-Ko 1.5nF 500V RM5,08 10% Y5P
Our service for you
Technical specifications
- ESD Packaging: No ESD
- HB2H series
- Design_1: Radial
- Applications: For applications in which low dielectric losses, high insulation resistance and capacity tolerance are not needed; as a bypass capacitor
- Ceramic type Y5P
- Technology: Ceramic disc capacitor
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Characteristics_1: Quality factor Q and capacity stability lower than type 2
- Nonlinear dependence of capacity to temperature
- Increased tolerances in relation to type 1
- Disk thickness 3.5 mm
- 7.1 mm disc diameter
- Wire diameter 0.6 mm.
- Pitch_1:5.08 mm
- Capacitance 1.5 nF
- Capacity_1: 1.5
- Capacitance unit: NF
- Capacity Tolerance 10%
- Nominal voltage DC 500 V
- Insulation resistance_1: 10 MOhm
- Packaging type
Bulk
- Product type
Ceramic capacitor
- Type
Radial lead
- Nominal voltage
500 V DC
- Capacity (elec.)
1.5 nF
- Tolerance ±
10 %
- Content
1 pc(s)
- (Ø)
7.1 mm
- CS
5.08 mm
- Dim
(Ø) 7.1 mm
- Material
Ceramic
- RoHS-compliant
Yes
- Type
HB2H152K07L526N
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-25 °C
Documents & Downloads
Datasheet
Datasheet 3463902 RICHWELL Ceramic capacitor Radial lead 1.5 nF 500 V DC 10 % (Ø) 7.1 mm 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3463902 RICHWELL Ceramic capacitor Radial lead 1.5 nF 500 V DC 10 % (Ø) 7.1 mm 1 pc(s) Bulk
Description
Ceramic Disk Capacitors RM5.08 50
