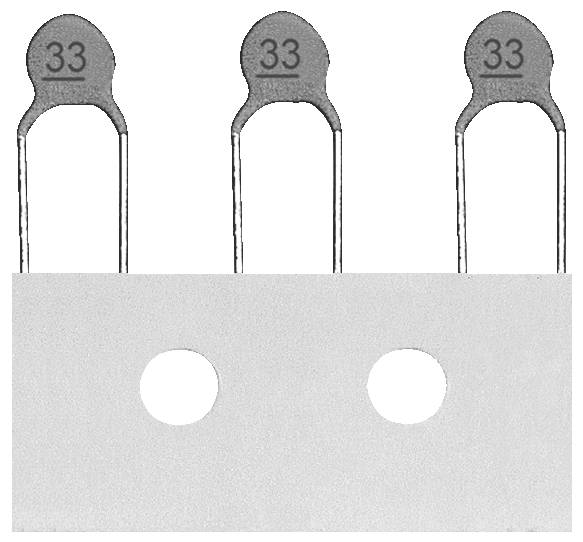

RICHWELL Ceramic capacitor Radial lead 1 nF 100 V DC 20 % (Ø) 5.1 mm 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
Ceramic capacitor
Type
Radial lead
Nominal voltage
100 V DC
Capacity (elec.)
1 nF
Datasheet (PDF)
Highlights & Details
Richwell Ker-Ko 1nF 100V RM5.08 20% Y5P belt
Our service for you
Technical specifications
- ESD Packaging: No ESD
- HB2A series
- Design_1: Radial
- Applications: For applications in which the quality factor and the capacity stability are not primarily required; as bypass and decoupling capacitors
- Ceramic type Y5P
- Technology: Ceramic disc capacitor
- Mounting type_1: THT
- Delivery form_1: Taped
- Connections_1: 2-pin
- Characteristics_1: Quality factor Q and capacity stability lower than type 1
- Nonlinear dependence of capacity to temperature
- Increased tolerances in relation to type 1
- Disk thickness 3.5 mm
- 5.1 mm disc diameter
- Wire diameter 0.6 mm.
- Pitch_1:5.08 mm
- Capacitance 1 nF
- Capacity_1: 1
- Capacitance unit: NF
- Capacity Tolerance 20%
- Nominal voltage DC 100 V
- Insulation resistance_1: 10 MOhm
- Packaging type
Tape
- Product type
Ceramic capacitor
- Type
Radial lead
- Nominal voltage
100 V DC
- Capacity (elec.)
1 nF
- Tolerance ±
20 %
- Content
1 pc(s)
- (Ø)
5.1 mm
- CS
5.08 mm
- Dim
(Ø) 5.1 mm
- Material
Ceramic
- RoHS-compliant
Yes
- Type
HB2A102M05B526N+AMMO
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-25 °C
Documents & Downloads
Datasheet
Datasheet 3463904 RICHWELL Ceramic capacitor Radial lead 1 nF 100 V DC 20 % (Ø) 5.1 mm 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3463904 RICHWELL Ceramic capacitor Radial lead 1 nF 100 V DC 20 % (Ø) 5.1 mm 1 pc(s) Tape
Description
Ceramic Disk Capacitors RM5.08 gegen
