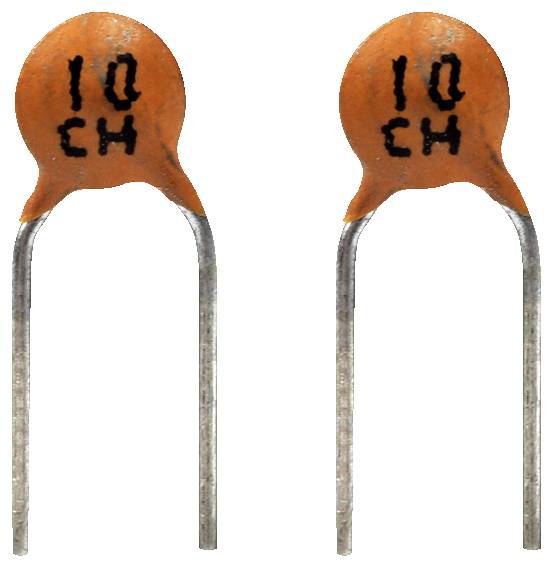

RICHWELL Ceramic capacitor Radial lead 10 nF 1000 V DC 20 % (Ø x H) 12.5 mm x 3.5 mm 1 pc(s) Bulk
Part number:
Item no:
Packaging type
Bulk
Product type
Ceramic capacitor
Type
Radial lead
Nominal voltage
1000 V DC
Capacity (elec.)
10 nF
Datasheet (PDF)
Highlights & Details
Richwell Ko 10nF 1kV RM7.5 20% Z5U
Our service for you
Technical specifications
- ESD Packaging: No ESD
- HEY3A Series
- Design_1: Radial
- Applications: For applications in which the quality factor and the capacity stability are not primarily required; as bypass and decoupling capacitors
- Ceramic type Z5U
- Technology: Ceramic disc capacitor
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Characteristics_1: Quality factor Q and capacity stability lower than type 1
- Nonlinear dependence of capacity to temperature
- Increased tolerances in relation to type 1
- Disk thickness 3.5 mm
- 12.5 mm disc diameter
- Wire diameter 0.6 mm.
- Pitch_1:7.5 mm
- Capacitance 10 nF
- Capacity_1: 10
- Capacitance unit: NF
- Capacity Tolerance 20%
- Nominal voltage DC 1,000 V
- Insulation resistance_1: 10 MOhm
- Packaging type
Bulk
- Product type
Ceramic capacitor
- Type
Radial lead
- Nominal voltage
1000 V DC
- Capacity (elec.)
10 nF
- Tolerance ±
20 %
- Content
1 pc(s)
- Height
3.5 mm
- (Ø)
12.5 mm
- CS
7.5 mm
- Dim
(Ø x H) 12.5 mm x 3.5 mm
- Material
Ceramic
- RoHS-compliant
Yes
- Type
HEY3A103M12L726N
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
10 °C
Documents & Downloads
Datasheet
Datasheet 3463913 RICHWELL Ceramic capacitor Radial lead 10 nF 1000 V DC 20 % (Ø x H) 12.5 mm x 3.5 mm 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3463913 RICHWELL Ceramic capacitor Radial lead 10 nF 1000 V DC 20 % (Ø x H) 12.5 mm x 3.5 mm 1 pc(s) Bulk
Description
RICHWell single-layer capacitor
