RICHWELL Ceramic capacitor Radial lead 22 nF 100 V DC 80 % (Ø) 8.1 mm 1 pc(s) Bulk
Part number:
Item no:
Packaging type
Bulk
Product type
Ceramic capacitor
Type
Radial lead
Nominal voltage
100 V DC
Capacity (elec.)
22 nF
Datasheet (PDF)
Highlights & Details
Richwell Ker-Ko 22nF 100V RM5,08 -20/80% Z5V
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series HF2A
- Design_1: Radial
- Applications: For applications in which the quality factor and the capacity stability are not primarily required; as bypass and decoupling capacitors
- Ceramic type Z5V
- Technology: Ceramic disc capacitor
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Characteristics_1: Quality factor Q and capacity stability lower than type 1
- Nonlinear dependence of capacity to temperature
- Increased tolerances in relation to type 1
- Disk thickness 3.5 mm
- 8.1 mm disc diameter
- Wire diameter 0.6 mm.
- Pitch_1:5.08 mm
- Capacitance 22 nF
- Capacity_1: 22
- Capacitance unit: NF
- Capacity Tolerance 80%
- Nominal voltage DC 100 V
- Insulation resistance_1: 7.5 MOhm
- Packaging type
Bulk
- Product type
Ceramic capacitor
- Type
Radial lead
- Nominal voltage
100 V DC
- Capacity (elec.)
22 nF
- Tolerance ±
80 %
- Content
1 pc(s)
- (Ø)
8.1 mm
- CS
5.08 mm
- Dim
(Ø) 8.1 mm
- Material
Ceramic
- RoHS-compliant
Yes
- Type
HF2A223Z08S505N
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
10 °C
Documents & Downloads
Datasheet
Datasheet 3463916 RICHWELL Ceramic capacitor Radial lead 22 nF 100 V DC 80 % (Ø) 8.1 mm 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3463916 RICHWELL Ceramic capacitor Radial lead 22 nF 100 V DC 80 % (Ø) 8.1 mm 1 pc(s) Bulk
Description

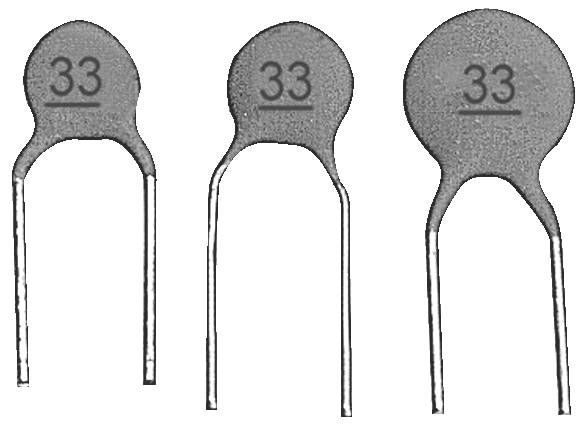

Ceramic Disk Capacitors RM5.08
