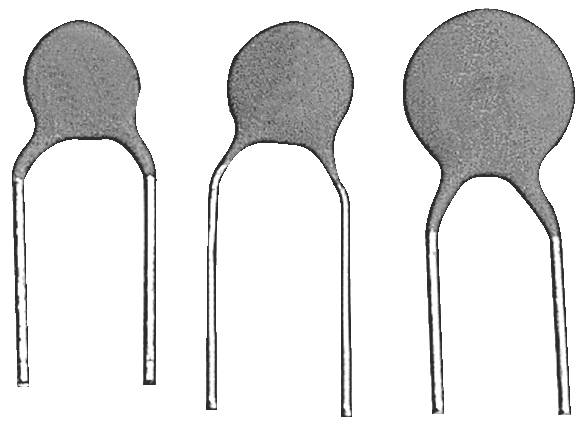

RICHWELL Ceramic disc capacitor Radial lead 0.0039 nF 500 V DC 0.25 pF (Ø) 6.5 mm 1 pc(s)
Part number:
Item no:
Product type
Ceramic disc capacitor
Type
Radial lead
Nominal voltage
500 V DC
Capacity (elec.)
0.0039 nF
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Richwell Ko 3,9pF 500V RM5,08 ±25pF NPO
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series TCH2H
- Design_1: Radial
- Applications: For applications that require a high quality factor and high capacity stability
- Ceramic type: NPO
- Technology: Ceramic disc capacitor
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Properties_1: High quality factor Q, high capacity stability
- Defined linear dependence of capacity to temperature
- Very low capacitance dependence on the voltage and frequency
- Narrow tolerances
- Disk thickness 3.5 mm
- 6.5 mm disc diameter
- Wire diameter 0.6 mm.
- Pitch_1:5.08 mm
- Capacitance 0.0039 nF
- Capacity_1: 0.0039
- Capacitance unit: NF
- Capacitance tolerance_1: 0.25 pF
- Nominal voltage DC 500 V
- Insulation resistance_1: 10 MOhm
- Product type
Ceramic disc capacitor
- Type
Radial lead
- Nominal voltage
500 V DC
- Capacity (elec.)
0.0039 nF
- Tolerance ±
0.25 pF
- Content
1 pc(s)
- (Ø)
6.5 mm
- CS
5.08 mm
- Dim
(Ø) 6.5 mm
- Dielectric
C0G
- Material
Ceramic
- RoHS-compliant
Yes
- Type
TCH2H3R9C05A526N
Documents & Downloads
Datasheet
Datasheet 3463926 RICHWELL Ceramic disc capacitor Radial lead 0.0039 nF 500 V DC 0.25 pF (Ø) 6.5 mm 1 pc(s)
Datasheet 3463926 RICHWELL Ceramic disc capacitor Radial lead 0.0039 nF 500 V DC 0.25 pF (Ø) 6.5 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3463926 RICHWELL Ceramic disc capacitor Radial lead 0.0039 nF 500 V DC 0.25 pF (Ø) 6.5 mm 1 pc(s)
Description
Ceramic Disk Capacitors RM5.08 50
