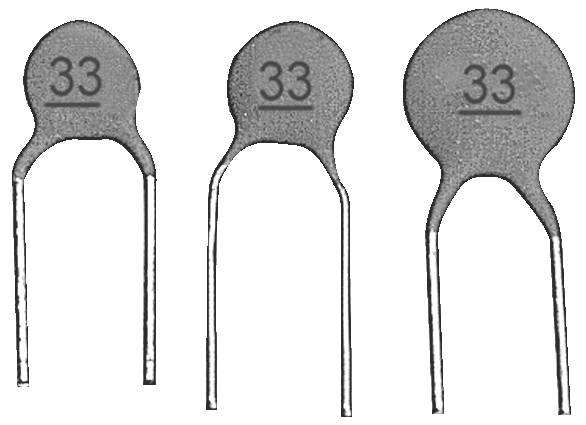

RICHWELL Ceramic disc capacitor Radial lead 0.022 nF 100 V DC 5 % (Ø) 5.1 mm 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
Ceramic disc capacitor
Type
Radial lead
Nominal voltage
100 V DC
Capacity (elec.)
0.022 nF
Datasheet (PDF)
Highlights & Details
Richwell Ko 22pF 100V RM5,08 5% SL Belt
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series: TSL2A
- Design_1: Radial
- Applications: For applications that require a high quality factor and high capacity stability
- Ceramic type SL
- Technology: Ceramic disc capacitor
- Mounting type_1: THT

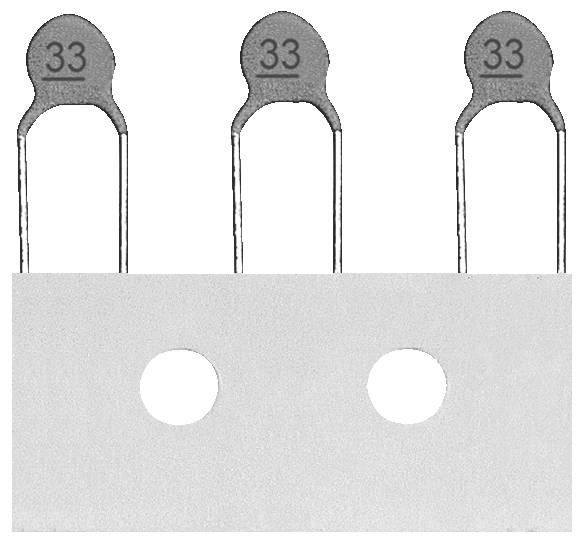

- Delivery form_1: Taped
- Connections_1: 2-pin
- Properties_1: High quality factor Q, high capacity stability
- Defined linear dependence of capacity to temperature
- Very low capacitance dependence on the voltage and frequency
- Narrow tolerances
- Disk thickness 3.5 mm
- 5.1 mm disc diameter
- Wire diameter 0.6 mm.
- Pitch_1:5.08 mm
- Capacitance 0.022 nF
- Capacity_1: 0.022
- Capacitance unit: NF
- Capacity Tolerance 5%
- Nominal voltage DC 100 V
- Insulation resistance_1: 10 MOhm
- Packaging type
Tape
- Product type
Ceramic disc capacitor
- Type
Radial lead
- Nominal voltage
100 V DC
- Capacity (elec.)
0.022 nF
- Tolerance ±
5 %
- Content
1 pc(s)
- (Ø)
5.1 mm
- CS
5.08 mm
- Dim
(Ø) 5.1 mm
- Dielectric
SL
- Material
Ceramic
- RoHS-compliant
Yes
- Type
TSL2A220J05B526N+A
Documents & Downloads
Datasheet
Datasheet 3463933 RICHWELL Ceramic disc capacitor Radial lead 0.022 nF 100 V DC 5 % (Ø) 5.1 mm 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3463933 RICHWELL Ceramic disc capacitor Radial lead 0.022 nF 100 V DC 5 % (Ø) 5.1 mm 1 pc(s) Tape
Description
Ceramic Disk Capacitors RM5.08 gegen
