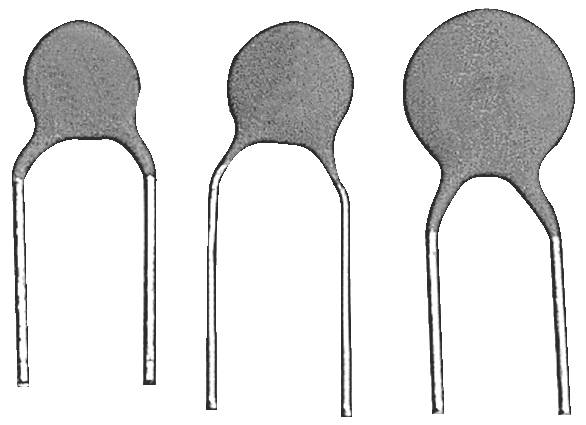

RICHWELL Ceramic disc capacitor Radial lead 0.47 nF 500 V DC 10 % (Ø) 6.5 mm 1 pc(s) Bulk
Part number:
Item no:
Packaging type
Bulk
Nominal voltage
500 V DC
Content
1 pc(s)
Type
Radial lead
Capacity (elec.)
0.47 nF
Datasheet (PDF)
Highlights & Details
Richwell Ko 470pF 500V 10% Y5P
Our service for you
Technical specifications
- ESD Packaging: No ESD
- HB2H series
- Design_1: Radial
- Applications: For applications in which the quality factor and the capacity stability are not primarily required; as bypass and decoupling capacitors
- Ceramic type Y5P
- Technology: Ceramic disc capacitor
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Characteristics_1: Quality factor Q and capacity stability lower than type 1
- Nonlinear dependence of capacity to temperature
- Increased tolerances in relation to type 1
- Disk thickness 3.5 mm
- 6.5 mm disc diameter
- Wire diameter 0.6 mm.
- Pitch_1:5.08 mm
- Capacitance 0.47 nF
- Capacity_1: 0.47
- Capacitance unit: NF
- Capacity Tolerance 10%
- Nominal voltage DC 500 V
- Insulation resistance_1: 10 MOhm
- Packaging type
Bulk
- Nominal voltage
500 V DC
- Tolerance ±
10 %
- (Ø)
6.5 mm
- CS
5.08 mm
- Content
1 pc(s)
- Dim
(Ø) 6.5 mm
- Material
Ceramic
- Type
Radial lead
- Type
HB2H471K06S506N
- Capacity (elec.)
0.47 nF
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-25 °C
- RoHS-compliant
Yes
- Product type
Ceramic disc capacitor
Documents & Downloads
Datasheet
Datasheet 3463955 RICHWELL Ceramic disc capacitor Radial lead 0.47 nF 500 V DC 10 % (Ø) 6.5 mm 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3463955 RICHWELL Ceramic disc capacitor Radial lead 0.47 nF 500 V DC 10 % (Ø) 6.5 mm 1 pc(s) Bulk
Description
Ceramic Disk Capacitors RM5.08 50
