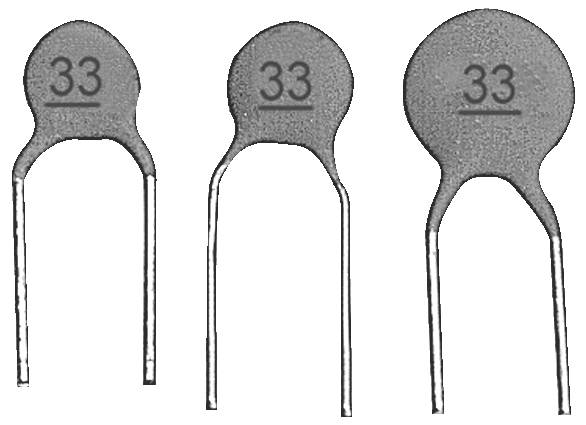

RICHWELL Ceramic disc capacitor Radial lead 47 nF 50 V DC 80 % (Ø) 7.1 mm 1 pc(s) Bulk
Part number:
Item no:
Packaging type
Bulk
Product type
Ceramic disc capacitor
Type
Radial lead
Nominal voltage
50 V DC
Capacity (elec.)
47 nF
Datasheet (PDF)
Highlights & Details
Richwell Ker-Ko 47nF 50V RM5.08 -20/80% Y5V
Our service for you
Technical specifications
- ESD packing ESD
- Series SF1H
- Design_1: Radial
- Applications: For applications in which the quality factor and the capacity stability are not primarily required; as bypass and decoupling capacitors
- Ceramic type Y5V
- Technology: Ceramic disc capacitor
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Characteristics_1: Quality factor Q and capacity stability lower than type 1
- Nonlinear dependence of capacity to temperature
- Increased tolerances in relation to type 1
- Disk thickness 3.5 mm
- 7.1 mm disc diameter
- Wire diameter 0.6 mm.
- Pitch_1:5.08 mm
- Capacitance 47 nF
- Capacity_1: 47
- Capacitance unit: NF
- Capacity Tolerance 80%
- Nominal voltage DC 50 V
- Insulation resistance_1: 7.5 MOhm
- Packaging type
Bulk
- Product type
Ceramic disc capacitor
- Type
Radial lead
- Nominal voltage
50 V DC
- Capacity (elec.)
47 nF
- Tolerance ±
80 %
- Content
1 pc(s)
- (Ø)
7.1 mm
- CS
5.08 mm
- Dim
(Ø) 7.1 mm
- Dielectric
Y5V
- Material
Ceramic
- RoHS-compliant
Yes
- Type
SF1H473Z07S505N
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-25 °C
Documents & Downloads
Datasheet
Datasheet 3463919 RICHWELL Ceramic disc capacitor Radial lead 47 nF 50 V DC 80 % (Ø) 7.1 mm 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3463919 RICHWELL Ceramic disc capacitor Radial lead 47 nF 50 V DC 80 % (Ø) 7.1 mm 1 pc(s) Bulk
Description
Ceramic Disk Capacitors RM5.08
