RIDI "0209500" BLE DALI room solution Complete 1 pc(s)

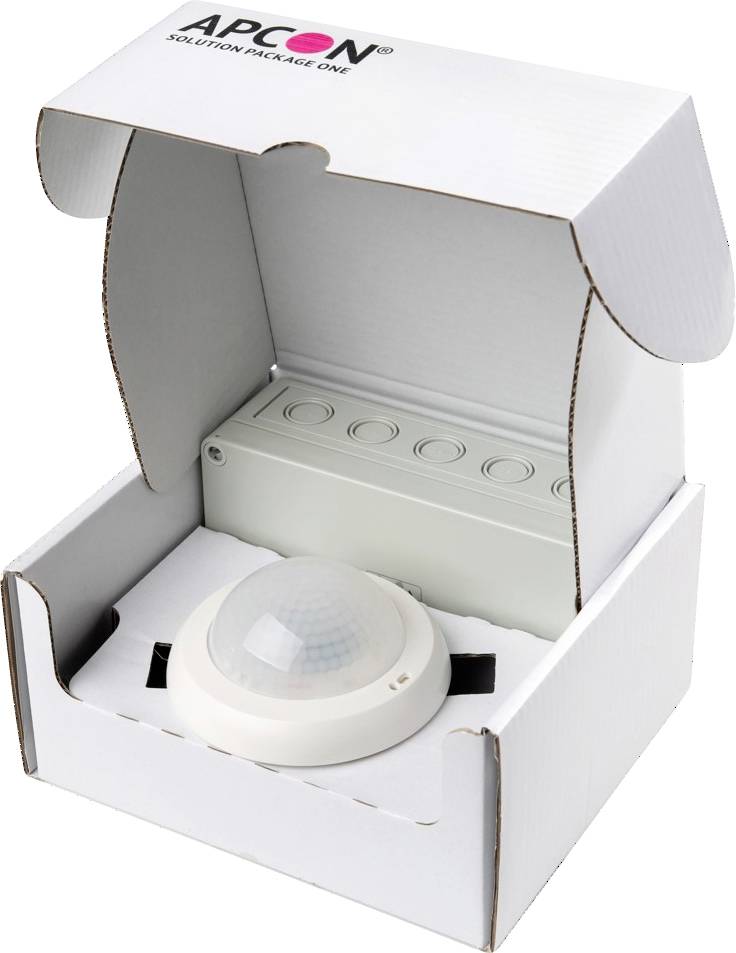

Bluetooth Low Energy / BLE room solution package for the connection of up to 20 dimmable device type 6 (DT6) and Tunable White DALI lights device type 8 (DT8). Consisting of an APCON hybrid box and a combined light and presence sensor DALI-2 hybrid box for the ceiling insertion or assembly. Light and presence sensor for ceiling installation. 14x cable entries M16/20 removable and 4x double membrane stub M20 enclosed. Bluetooth Low Energy 2.4 2.483 GHz The maximum cable length of the probe input is 5 m. Connection of a daylight sensor and many presence sensors are possible up to the power limit of the DALI supply. Room solution package with presence recognition and daylight-dependent control, as well as the option of connecting a button for switching on and off as well as dimming the connected lights. Easy to maintain broadcast operation, all lights behave the same. Can be combined and extended with other control elements, such as pushbuttons, push-buttons and sensors. Configuration and operation is possible via the Casambi APP. Daily, weekly and yearly plans for controlling the connected lamps can be configured. Connected Tunable White lights can be controlled directly to the selected color temperature, depending on the lamp version, between 2700 6500 K. In addition, within this range a circadian daylight course (Human Centric Lighting HCL) can be individually configured, which is followed by the connected lamps together.
