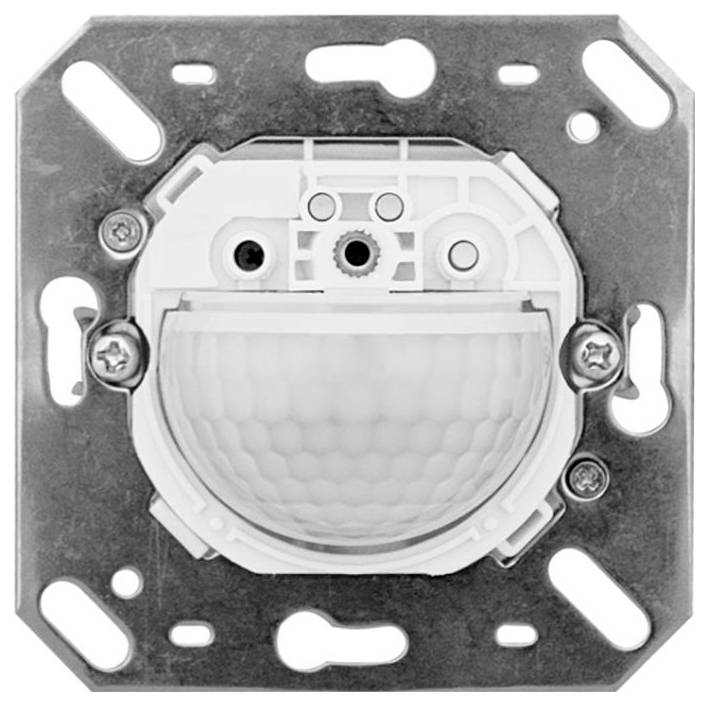

RIDI 0209504 Flush mount Motion detector and brightness sensor
EAN:
Part number:
Item no:
Technical specifications
- Height: 49 mm
- Width 70 mm
- Design: Presence detectors
- Mounting type: Flush-mounted
- Material: Plastic
- Colour: Other
- Surface protection: Untreated
- Transparent: No.
- Design of surface: Matt
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: DALI
- Number of channels: 1
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Wireless bidirectional: No
- With bus connection: Yes
- Suitable for wall mounting: Yes
- Suitable for ceiling mounting: No.
- With connection cable: No.
- Material quality: Other
- RAL number (similar): 9010
- Response brightness adjustable: No.
- Optimum mounting height 1.1 m.
- Max. Range to one side: 5 m.
- Max. Range: Front 3 m
- Capturing field Diameter on floor: 10 m.
- Operating mode switch: No.
- Staircase monitoring: Yes
- Low-level detection/back field monitoring: No.
- Teach-Function for Response Brightness: No.
- Animal slope: No.
- Extension input: No.
- Switch-off delay, self-learning: No.
- Rear field monitoring: No.
- With acoustic sensor: No.
- DALI-2 certified: Yes
- Product type
Motion detector and brightness sensor
5 m
- Mounting type
Flush mount
- Similar RAL
9010
- Width
70 mm
- Height
49 mm
- Dim
(W x H) 70 mm x 49 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550746 RIDI 0209504 Flush mount Motion detector and brightness sensor
Description
Combined DALI-2 light and presence sensor. Can be used as a presence sensor and/or light sensor. Plastic, white, similar to RAL 9010. Suitable for wall mounting at installation boxes. Can be used in connection with central plates in common frame systems of different manufacturers Max. Mounting height 2.2 m. For connecting to central control/application controller. With light and motion detector. Detection range transverse Ø 12 m, detection field 57 m². Sensor values are provided on the DALI-2 instances in accordance with IEC 62386 Part 303 and 304 on the DALI bus.
