Buy RIDI 0322088AH 0322088AH High voltage mounting rail light 1-phase Bulb cannot be changed 34 W LED (monochrome) White

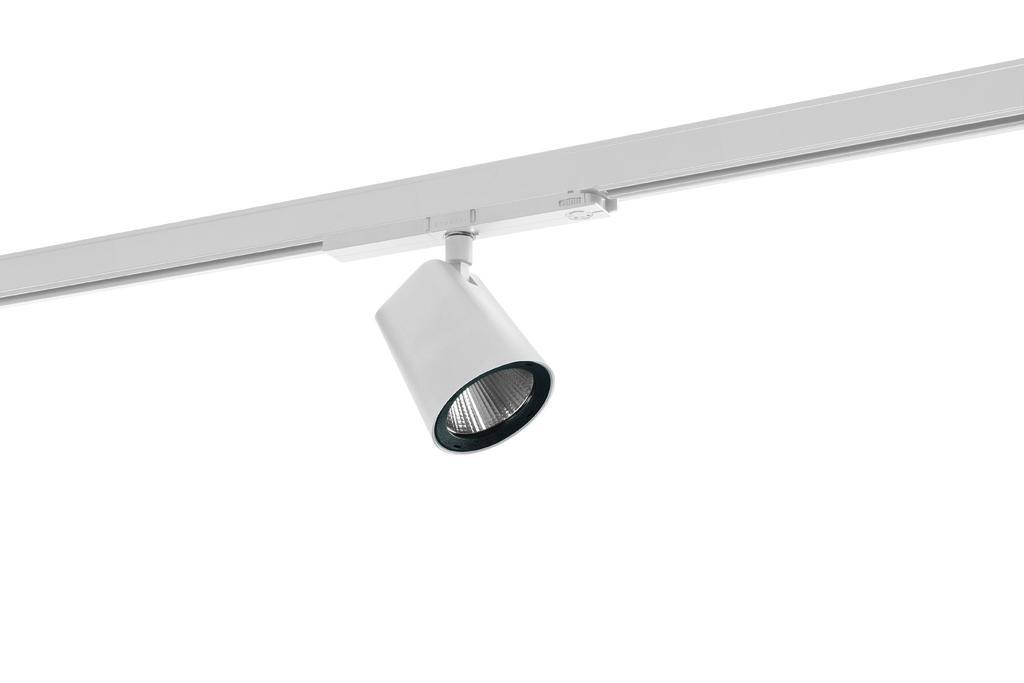

A white, modern ceiling spotlight made of metal, mounted on a track. It illuminates in one direction and is adjustable.

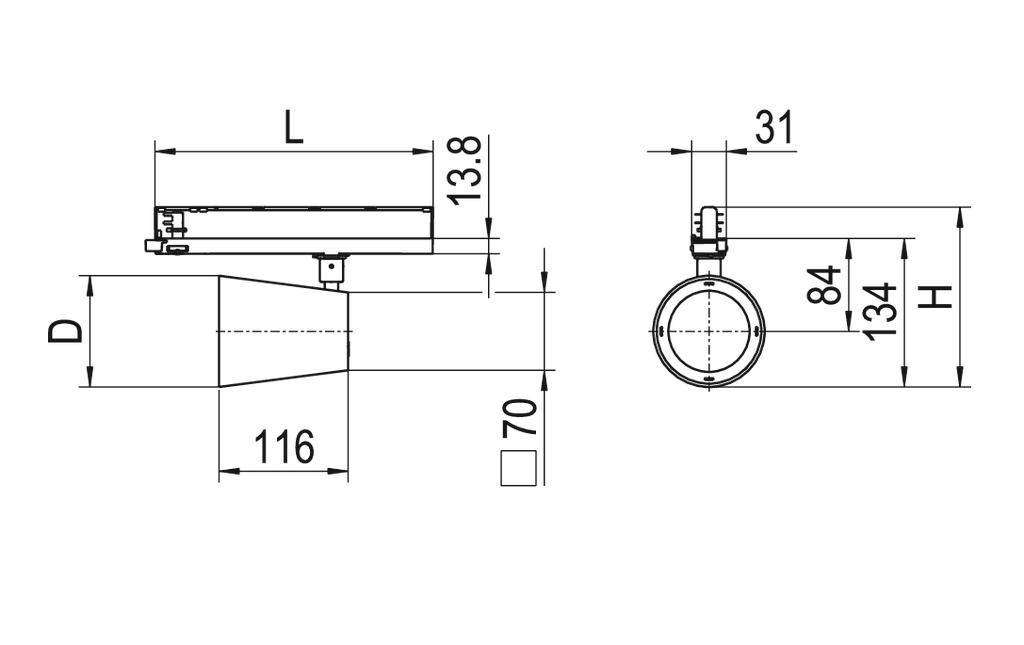

Technical drawing of two views of a cylindrical object with dimensions. Side view: Height 13.8, Length 'L', Diameter 'D'. Front view: Total height 134, Width 31.

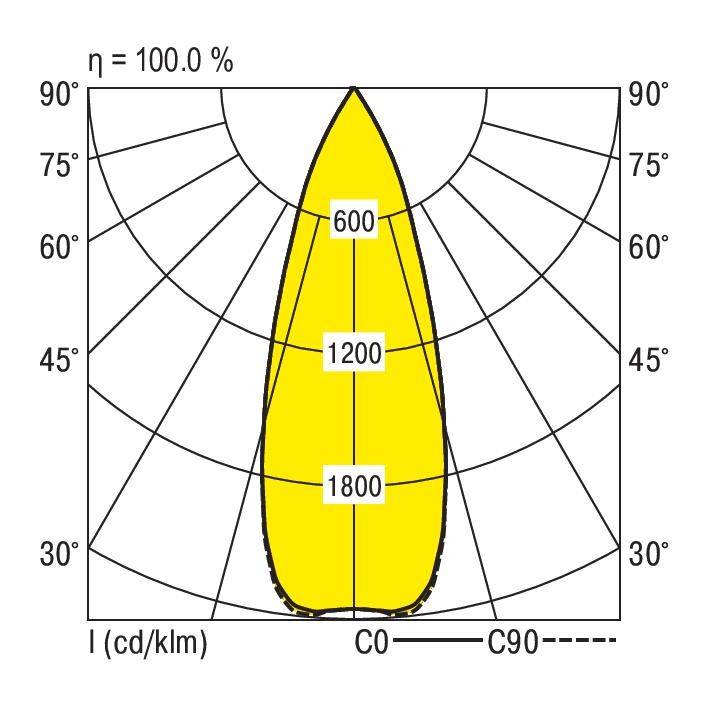

Light distribution curve; polar diagram type for an LED luminaire, shows maximum intensity of 1800 cd at 0 degrees along the C0 axis.

1/3

RIDI

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ridi-Lights LED-spring bars 830, ws CIRCUALI 1X3600830 F

Power= 34 W
Total luminous flux= 3470 lm
Colour temperature= 3000 K
Warm white

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for wall mounting: No.
Suitable for panel mounting: No.
Suitable for mounting on a panel: No.
Suitable for suspended engine mounting: No.
Suitable for ceiling mounting: No.
Suitable for traverse installation: No.
Suitable for pedestal-/floor mounting: No.
Suitable for rail mounting: Yes
Suitable for clamp mounting: No.
Suitable for cable system: No.
Adjustable: Rotation and swivel
With motion detector: No.
With light sensor: No.
Bulb: LED not replaceable
With bulb: Yes
Suitable for the number of bulbs: 1
Material of housing: Aluminium
Surface protection: Powder-coated
Housing color: White
Brushed surface: Yes
Voltage type AC
Nominal voltage 220..240 V
Operating device: LED operating device current-controlled
With operating device: Yes
Removable operating device: Yes
Dimming depends on the operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
Dimming DALI-2: No.
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimming function: Yes
Light distribution: Symmetric
Radiation angle: Medium radiation 21-40°
Light emission: Direct
Protection class (IP) IP20
Impact strength: IK08
Protection class: I
Suitable for lamp output 31 W
Max. System power 34 W
Light color: White
Colour temperature: 3000 K
Color Rendering Index CRI: 80-89
Rated light current according to IEC 62722-2-1: 3470 lm
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Width 100 mm
Height/depth 160 mm
Length: 158 mm
Outer diameter: 100 mm
Installation diameter 100 mm
Lamp with limited surface temperature "D-sign": No.
Max. Number of lights circuit breaker B16: 27
Max. Number of lamps line circuit breakers C16: 44
Integrated emergency power supply: No.
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Light output 102 lm/W
Workplace training material - EN 12464-1: Yes
IFTTT support available: No.
Color consistency (McAdam ellipse): SDCM3
Glare limiter (UGR): 11.3
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.

Product type: High voltage mounting rail light

Series: 1-phase

Operating voltage: 230 V

No. of bulbs: 1

Bulb type: LED (monochrome)

: Bulb cannot be changed

Rating per bulb: 31 W

: 34 W

: 3000 K

Colour: Warm white

: 3470 lm

Total luminous flux: 3470 lm

Light features: Swivelling

: IP20

Protection class: I

Factory colour: White

Material: Aluminium

Dim: (Ø x H) 100 mm x 160 mm

: n.rel.

Width: 100.00 mm

Height: 160 mm

Length: 158.00 mm

(Ø): 100 mm

Rated luminous flux: 3470 lm

Colour rendering index: 80-89

Colour temperature (max.): 3000 K

Colour temperature (min.): 3000 K

Light bulb included: Yes

Nominal voltage: 230 V

Recess diameter: 100 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3139803 RIDI 0322088AH 0322088AH High voltage mounting rail light 1-phase Bulb cannot be changed 34 W LED (monochrome) White

User & Safety Instructions

User & Safety Instructions 3139803 RIDI 0322088AH 0322088AH High voltage mounting rail light 1-phase Bulb cannot be changed 34 W LED (monochrome) White

Description

Emitter CIRCQUA, bus bar, traffic white, similar to RAL 9016, on/off, Medium-bright, rated light current 3470 lm, rated power 34 W, 102 lm/W, light color: 830
