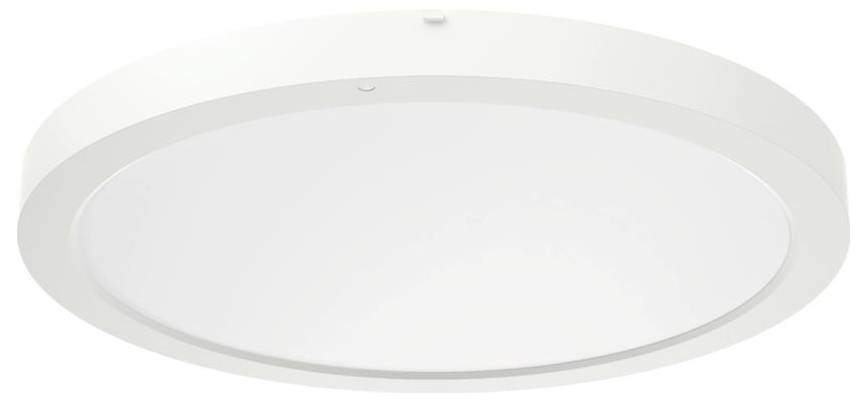

RIDI 0322095//377 SARA290#0322095//377 LED recessed light
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 3
- Protection class (IP) IP40
- Protection class: II
- Impact strength: IK03
- Housing material: Plastic
- Nominal voltage 220..240 V
- Connection type: Plug-in terminal
- Voltage type AC
- LED bulb, replaceable
- Radiation angle: Extremely wide radiation >80°
- Operating device: LED operating device current-controlled
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Constant luminous flux regulation: No.
- Colour temperature 3000..4000 K
- Color Rendering Index CRI: 80-89
- Colour temperature adjustable: Levels
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Height/depth 22 mm
- Type of wiring: Finish
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on a panel: No.
- Suitable for panel mounting: Yes
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for traverse installation: No.
- Suitable for cable system: No.
- Adjustable: Not adjustable
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: White
- Surface brushed: No.
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes
- Light distribution: Symmetric
- Light emission: Direct
- Max. System power 23 W
- Luminous flux: 2670 lm
- Rated light current according to IEC 62722-2-1: 2670 lm
- Installation height/depth 60 mm
- Installation diameter 65..260 mm
- Covering of the lamp with thermal insulation material is possible: No.
- Outer diameter: 290 mm
- Suitable for screen workstations according to EN 12464-1: No.
- Cover material: Plastic opal
- Light distributor: Diffuser lens/-optic/-panel
- Color consistency (McAdam ellipse): SDCM3
- Rated ambient temperature according to IEC62722-2-1: 0..25°C.
- Integrated emergency power supply: Yes
- Light output 116 lm/W
- Conductor cross-section: 1.5 mm²
- Conductor cross-section can be connected: 0.75..1.5 mm²
- Suitable for pedestal-/floor mounting: No.
- Suitable for rail mounting: No.
- Suitable for clamp mounting: No.
- Version: Other
- Lamp with limited surface temperature "D-sign": No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Photobiological safety according to EN 62471: RG0
- Glare limiter (UGR): 26
- Product type
LED recessed light
n.rel.
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547579 RIDI 0322095//377 SARA290#0322095//377 LED recessed light
Description
Downlight of the SARA product family. Light steering through covering optimal, radiation characteristic symmetric, extremely broad radiation, light emission direct. Light bulb integrated with LED-M, and can be exchanged by an expert. The lamp generates a rated luminous flux of 2670 lm in light color 830/840, luminous flux adjustable: No. The high LED life allows a long use with constant illumination quality. High light quality with a tolerance of < 3 SDCM color spot. Housing made of plastic, Traffic white, similar to RAL 9016, protection class IP40. Cover made of PMMA optional Installation downlight with variable mounting bracket for ceiling openings of 65 to 260 mm. For ceiling thickness of 5-25 mm. With electronic operating device On/Off. Replacement by qualified personnel possible. Nom. Voltage: 220 - 240 V AC 50 - 60 Hz.
