RIDI 0450001//672 0450001//672 Mirror light 15 W White White
EAN:
Part number:
Item no:
Highlights & Details

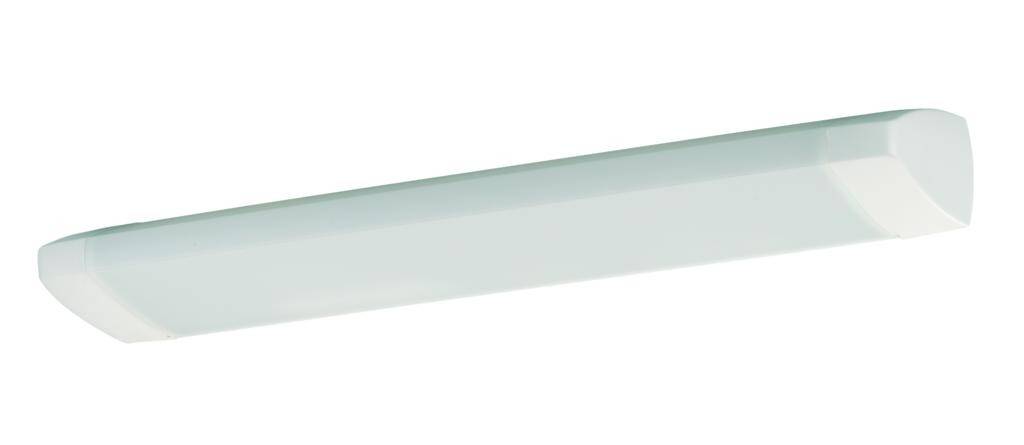

Ridi-lights mirror lamp with LED tube 3000K R1X055/15ND SPN-set #0450001/672
- Power= 15 W Total luminous flux= 1588 lm Colour temperature= 3000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Energy efficiency class spectrum: A to G.
- Suitable for wall mounting: Yes
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for panel mounting: No.
- Suitable for mounting on a panel: No.
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Aluminium
- Surface protection housing: Powder-coated
- Housing color: White
- Cover material: Plastic opal
- Design of grid: Without
- Voltage type AC
- Nominal voltage 220..240 V
- Nominal current: 1588000 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: Yes
- Without dimming function: Yes

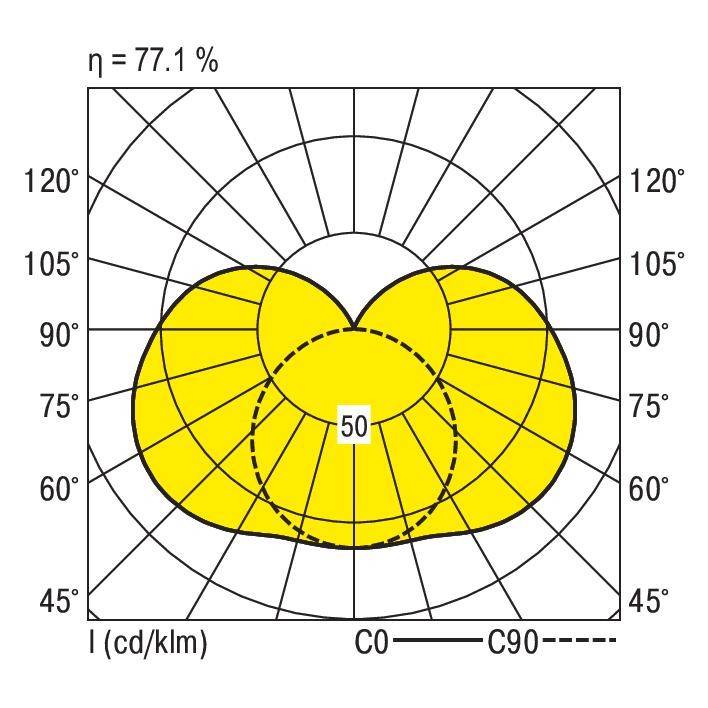

- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Protection class (IP) IP40
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- With air vents: No.
- Suitable for lamp output 15 W
- Max. System power 15 W
- Light output 105 lm/W
- Rated light current according to IEC 62722-2-1: 1588 lm
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 80-89

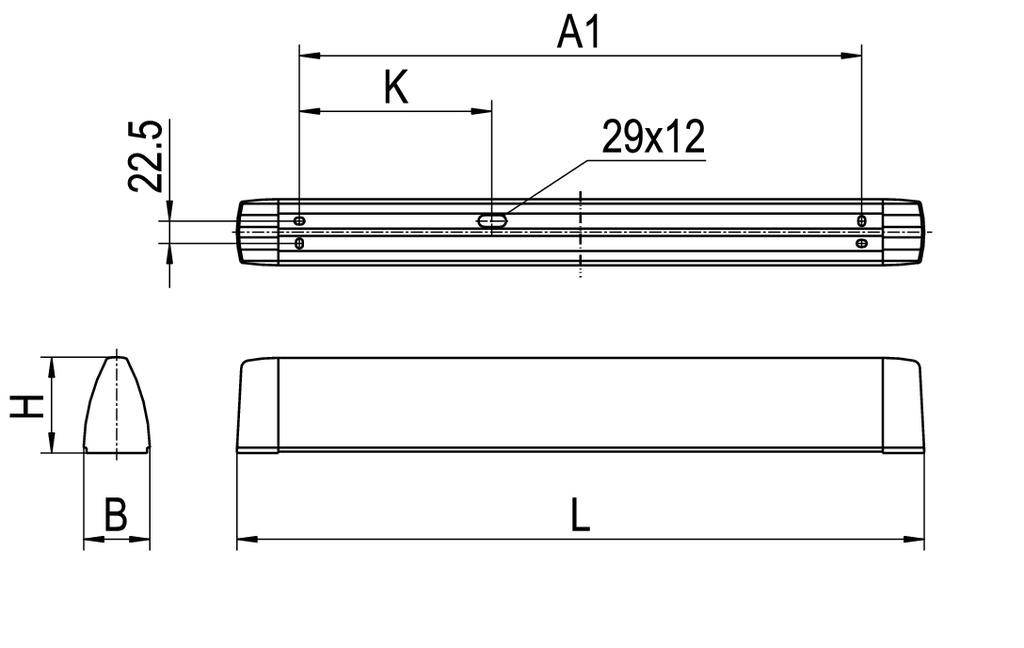

- Width 67 mm
- Height/depth 97 mm
- Length: 660 mm
- Glare limiter (UGR): 21.7
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- LED bulb, replaceable
- With bulb: Yes
- Product type
Mirror light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
LED
- Rating per bulb
15 W
15 W
3000 K
- Colour
White
1588 lm
- Total luminous flux
1588 lm
- Light features
Incl. switch
- Protection class
I
IP40
- Factory colour
White
- Material
Aluminium
- Dim
(L x W x H) 660.00 x 67.00 x 97.00 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
Yes
- Width
67.00 mm
- Height
97.00 mm
- Length
660.00 mm
- Depth
97 mm
- Rated luminous flux
1588 lm
- Colour temperature (max.)
3000 K
- Colour temperature (min.)
3000 K
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3144001 RIDI 0450001//672 0450001//672 Mirror light 15 W White White
User & Safety Instructions
User & Safety Instructions 3144001 RIDI 0450001//672 0450001//672 Mirror light 15 W White White
Description
By its linear design the mirror lamp Spenda with satin surface sprays pleasant, glare-free light. In addition, this timeless lamp is available with built-in power switch and a safety socket (max. 16A), or as efficient LED version with the replaceable LED lamp RIDI-TUBE. The RIDI TUBE is an LED lamp developed and manufactured by RIDI. With its innovative socket base system the RIDI TUBE can be changed just as easily as conventional T16 lamps. Can be ordered as a set including MIDI TUBE with a clear cover, which is supplied with the lamp and is available in two colors of light (830 and 840)
