RIDI 0460020SI 0460020SI Ceiling light LED (monochrome) 34 W Silver
EAN:
Part number:
Item no:
Highlights & Details
Ridi-Lamp tub light for RIDI-Tube DALI LF-T16-S- #0460020SI
- Power= 34 W
- Total luminous flux= 3570 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for pendulum suspension: Yes
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on a panel: No.
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Steel
- Surface protection housing: Powder-coated
- Housing color: Silver
- Cover material: Transparent plastic
- Grid type: Matt
- Voltage type AC
- Nominal voltage 230..240 V
- Nominal current: 3506000 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: Yes
- Without dimmer function: No.
- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Max. Number of lights circuit breaker B16: 20
- Max. Number of lamps line circuit breakers C16: 30
- Protection class (IP) IP64
- Protection class: I
- Lamp with limited surface temperature "D-sign": Yes
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Coverage of lights possible with heat insulation material: Yes
- With air vents: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Suitable for lamp output 30 W
- Max. System power 34 W
- Light output 105 lm/W
- Rated light current according to IEC 62722-2-1: 3570 lm
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Width 85 mm
- Height/depth 72 mm
- Length: 1198 mm
- Glare limiter (UGR): 20.6
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- LED bulb, replaceable
- With bulb: No.
- Dim
(L x W x H) 1198.00 x 85.00 x 72.00 mm
- Operating voltage
230 V
- No. of bulbs
1
- Product type
Ceiling light
- Width
85.00 mm
- Bulb type
LED (monochrome)
- Height
72.00 mm
- Length
1198.00 mm
- Rating per bulb
30 W
- Depth
72 mm
34 W
- Light features
Dimmable
- Protection class
I
IP64
- Factory colour
Silver
- Material
Steel
n.rel.
- Colour rendering index
80-89
- Colour
White
- Light bulb included
No
4000 K
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Total luminous flux
3570 lm
3570 lm
- Rated luminous flux
3570 lm
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3145748 RIDI 0460020SI 0460020SI Ceiling light LED (monochrome) 34 W Silver
User & Safety Instructions
User & Safety Instructions 3145748 RIDI 0460020SI 0460020SI Ceiling light LED (monochrome) 34 W Silver
Description

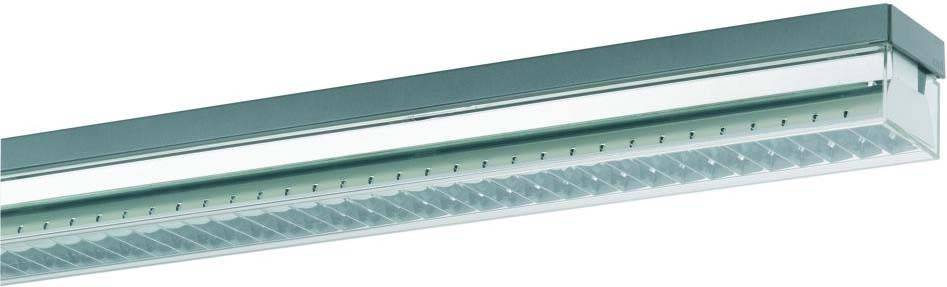

Ceiling and wall light LF, mounting, silver, DALI, light output direct, Extremely wide beam pitch, length 1198 mm, width 85 mm, height 72 mm, protection class IP64, suitable for R-TUBE, reference value UGR 20
This text is machine translated.
This text is machine translated.
