RIDI 1206186LD LED (monochrome) EEC D (A - G) 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

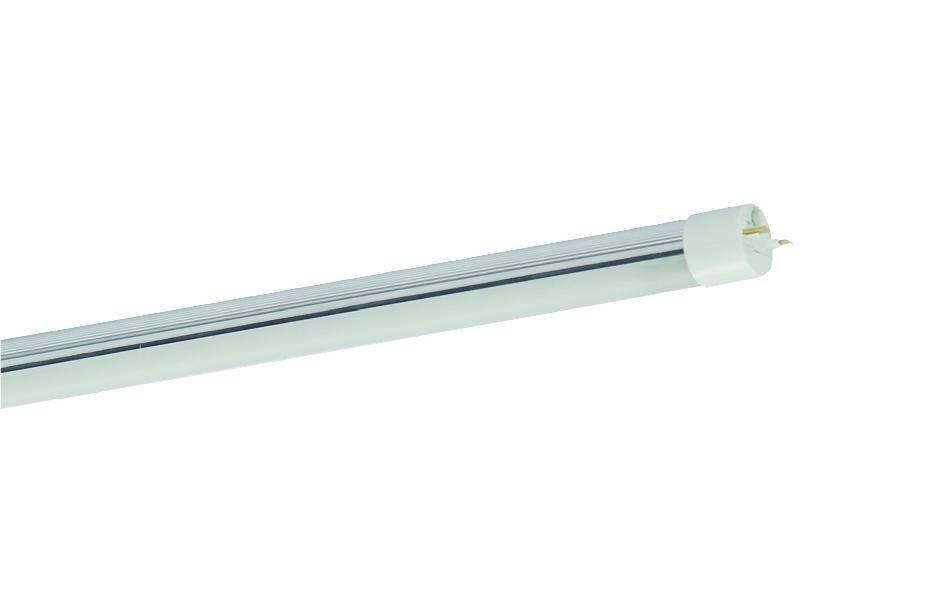

RIDI 1206186LD LED (monochrome)
- Colour temperature= 6500 K
Technical specifications
- Energy efficiency class of the light source according to EU regulation 2019/2015: D.
- Energy efficiency class spectrum: A to G.
- Nominal current: 700 mA
- Lamp power 16 W
- Voltage type DC
- Luminous flux: 2540 lm
- Color Rendering Index CRI: 80-89
- Lamp shape: Tubes, two-sided bases
- Filament lamp: No.
- Glass/cover: Matt
- Light color according to EN 12464-1: Daylight white >5300 K
- Socket: Other
- Colour: white
- Colour temperature: 6500 K
- Color consistency (McAdam ellipse): SDCM3
- Diameter 20 mm
- Length: 549 mm
- Protection class (IP) IP20
- Weighted energy consumption in 1,000 hours: 18 kWh
- Remote control possible: No.
- With remote control: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Product type
LED (monochrome)
6500 K
- Colour temperature range
6500 - 6500 K
- Length
549.00 mm
- Content
1 pc(s)
D (A - G)
- Colour temperature (max.)
6500 K
- Colour temperature (min.)
6500 K
- Colour rendering index
80-89
IP20
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3138089 RIDI 1206186LD LED (monochrome) EEC D (A - G) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3138089 RIDI 1206186LD LED (monochrome) EEC D (A - G) 1 pc(s)
Description
LED lamp RIDI-TUBE, color reproduction Ra >= 80, color tolerance < 3 step Mac Adam (initial). LED modules designed as linear boards. Mid-power LEDs for uniform illumination and maximum efficiency. Basic profile made from extruded aluminum for optimum thermal management. Linear circuit board continuously interlocked over the entire length with basic profile. Cover made of satined PMMA for efficient light coupling, socket made of robust PC white. Operation with an external LED driver (installed in light), constant current, safety low voltage less than 60 volts (SELV compliant). Packed RIDI-TUBE. Length 550 mm, power consumption 16 watts. Colour reproduction Ra > 80. Light color 3000 (...830...), 4000 (..840...) Or 6500 Kelvin (...865...). Assembly: Factory installation of the electrical components in almost all lamps from the RIDI program. Tool-free assembly of the RIDI TUBE similar to fluorescent lamps.
