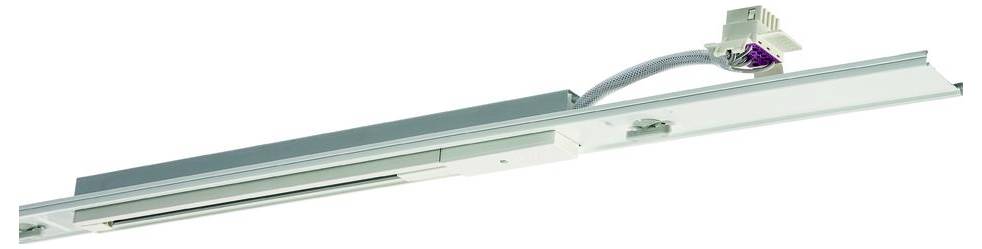

RIDI 1500156SI VLM-STS 1500-7 SI High voltage mounting rail
EAN:
Part number:
Item no:
Technical specifications
- Height: 58 mm
- Width 64 mm
- Material: Aluminium
- Colour: Silver.
- Protection class: I
- Length: 1500 mm
- Design of surface: Matt
- Suitable for mounting on the panel: Yes
- Suitable for panel mounting: No.
- Suitable for suspended engine mounting: No.
- Shape: Rectangular
- Bendable: No.
- Number of groups/phases: 3
- Bus-enabled: Yes
- Product type
High voltage mounting rail
n.rel.
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546223 RIDI 1500156SI VLM-STS 1500-7 SI High voltage mounting rail
Description
Power rail module insert for mounting in rail VLTM. Additional modules VLM ... profiled, made of galvanized, white, silver (-SI) or black (-SW) coated steel sheet. Plastic-coated quick-twist lock for fixing at the mounting rail. The VLM ... modules can be placed variable between the VLG ... device carriers. Electrical adapter for flexible tapping of the power supply in the rail. Colour and optical coding for easy mounting. Mechanical coding to prevent incorrect mounting (anti-twist protection). Device carrier including universal power rail, 5+2-conductor system (L1, L2, L3, N, SL plus two control lines for DALI) for the reception of emitters with 3-phase adapter. Colour coding purple for mounting in VLTM-7 or VLTM-11. All 3 phases are connected. Phase selection at the spotlight adapter. Loadable up to 3 x 16A + 2 x 10A. Device carrier length 1500 mm, usable bus bar length L4 = 620 mm. Installation: Simple clipping for electrical contact and mechanical fixing in system-bound LINA mounting rail system. Mechanical coding to prevent incorrect mounting (anti-twist protection).
