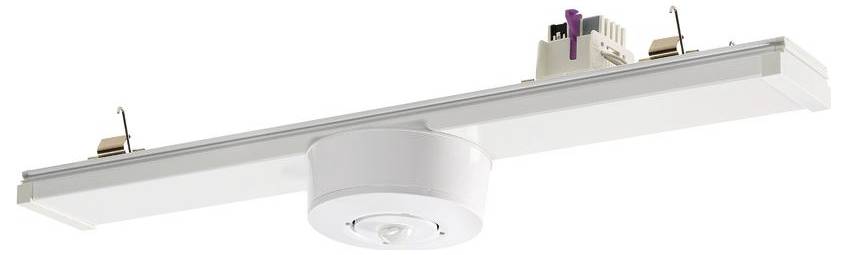

RIDI 1500194 Mount Sensor module
EAN:
Part number:
Item no:
Technical specifications
- Height: 134 mm
- Width 105 mm
- Design: Motion detector
- Mounting type: Module carrier
- Material: Metal
- Colour: white
- Surface protection: Untreated
- Transparent: No.
- Design of surface: Matt
- KNX bus system: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: DALI
- Number of channels: 1
- Bus system KNX radio: No.
- Bus system wireless bus: No.
- Wireless bidirectional: No
- With bus connection: Yes
- Suitable for wall mounting: No.
- Suitable for ceiling mounting: No.
- With connection cable: No.
- Material quality: Thermoplastic
- RAL number (similar): 9016
- Response brightness adjustable: No.
- Optimum mounting height 12 m.
- Max. Range to one side: 7.5 m.
- Capturing field Diameter on floor: 15 m.
- Operating mode switch: Yes
- Staircase monitoring: Yes
- Low-level detection/back field monitoring: Yes
- Teach-Function for Response Brightness: No.
- Animal slope: No.
- Extension input: No.
- Switch-off delay, self-learning: No.
- Rear field monitoring: No.
- With acoustic sensor: No.
- Bus power supply: No.
- DALI-2 certified: Yes
- Product type
Sensor module
- Mounting type
Mount
- Similar RAL
9016
- Width
105 mm
- Height
134 mm
- Dim
(W x H) 105 mm x 134 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549270 RIDI 1500194 Mount Sensor module
Description
Design: Sensor module insert for mounting in mounting rail VLTM. Additional modules VLMF ... made of aluminum profile, extruded, white, silver (-SI) or black (-SW), powder coated. Spring steel clamps for attachment to the mounting rail. The modules VLMF ... can be placed variably between the device carriers VLGF ....Electrical adapter for flexible tapping of the current conduction in the mounting rail. Colour and optical coding for easy mounting . Mechanical coding to prevent incorrect mounting (anti-twist protection).
