RIDI 1520196SW366 Escape route lighting EEC D (A - G)
EAN:
Part number:
Item no:
Technical specifications
- Function: Rescue path marking
- Suitable for type of identification: Acrylic glass plate
- Type of marking: Single-/double-sided
- With pictogram: Yes
- Monitoring device: Monitoring module (centrally supplied system)
- Switching mode: Continuous switching/standby circuit
- With remote switch connection: Yes
- With remote control: No.
- Feed: Central (central battery)
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Number of lamp heads: 1
- Material of housing: Aluminium
- Black enclosure
- Cover material: Without cover
- Voltage type AC
- Nominal voltage 220..240 V
- Operating device: LED operating device current-controlled
- Removable operating device: Yes
- Energy efficiency of the supplied exchangeable bulb: D.
- Protection class (IP) IP20
- Protection class: I
- Lamp with limited surface temperature ""D-sign"": No.
- Detection range 32 m

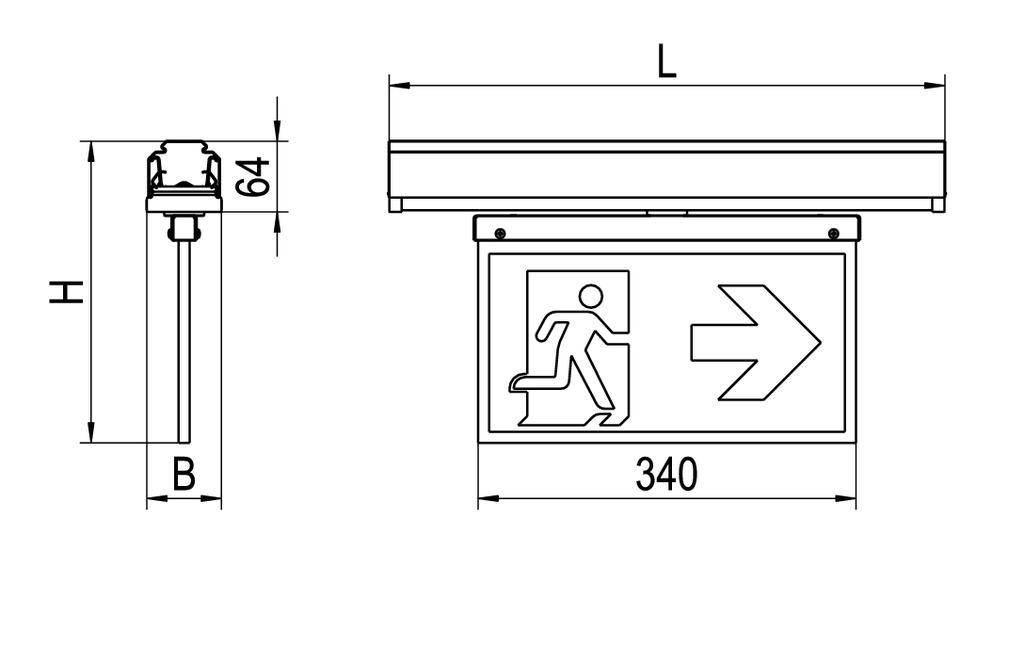

- Width 67 mm
- Height/depth 271 mm
- Length: 500 mm
- Dim
(L x W x H) 500.00 x 67.00 x 271.00 mm
- Product type
Escape route lighting
- Operating voltage
230 V
- Bulb type
LED (monochrome)
- Material
Aluminium
- Width
67.00 mm
- Height
271.00 mm
IP20
- Protection class
I
- Factory colour
Black
- Length
500.00 mm
- No. of bulbs
1
- Light bulb included
Yes
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3134142 RIDI 1520196SW366 Escape route lighting EEC D (A - G)
User & Safety Instructions
User & Safety Instructions 3134142 RIDI 1520196SW366 Escape route lighting EEC D (A - G)
Description

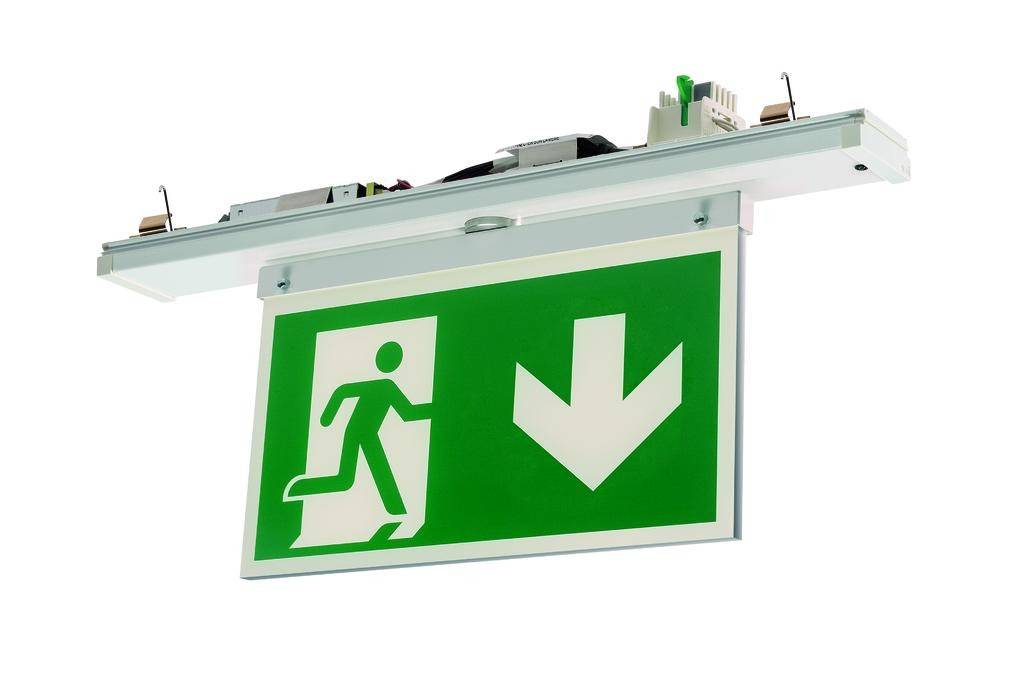

Module insert rescue signs, 500 mm, suitable for LINA mounting rail VLTM, adapter 11-pin, black, similar to RAL 9005, protection type IP20, Light emission
