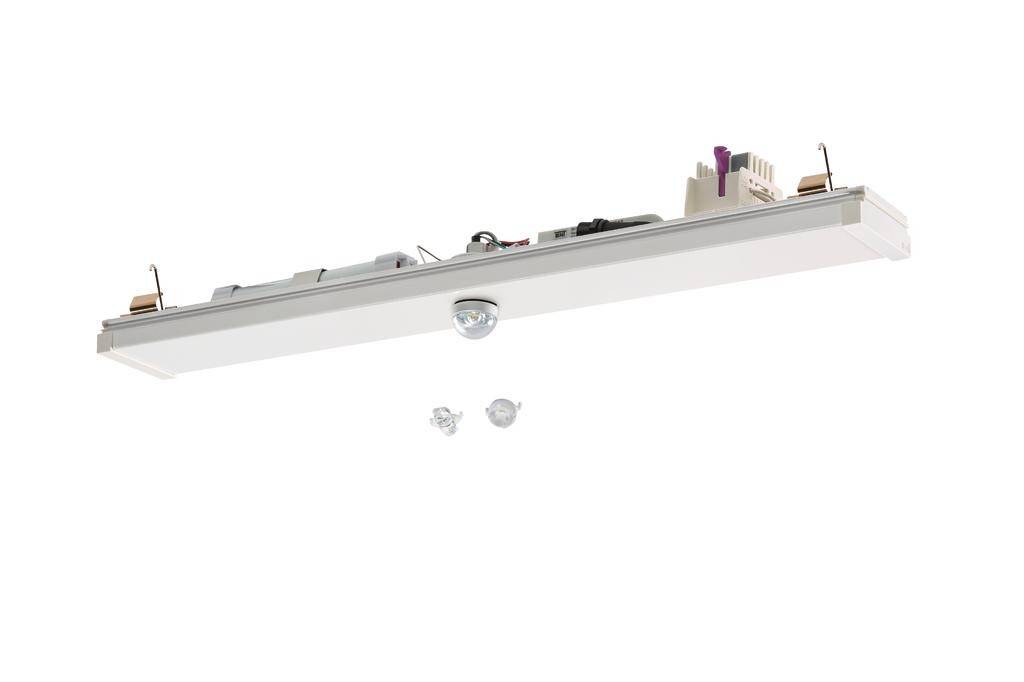

RIDI 1520198SI311 LED emergency ligjht Emergency exit
EAN:
Part number:
Item no:
Technical specifications
- Function: Emergency exit lighting
- With pictogram: Yes
- Monitoring equipment: Other
- With remote switch connection: Yes
- With remote control: No.
- Battery type: NiMH
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Number of lamp heads: 1
- Material of housing: Aluminium
- Housing color: Silver
- Operating device: LED operating device current-controlled
- Removable operating device: Yes
- Protection class (IP) IP54
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Max. System power 4 W

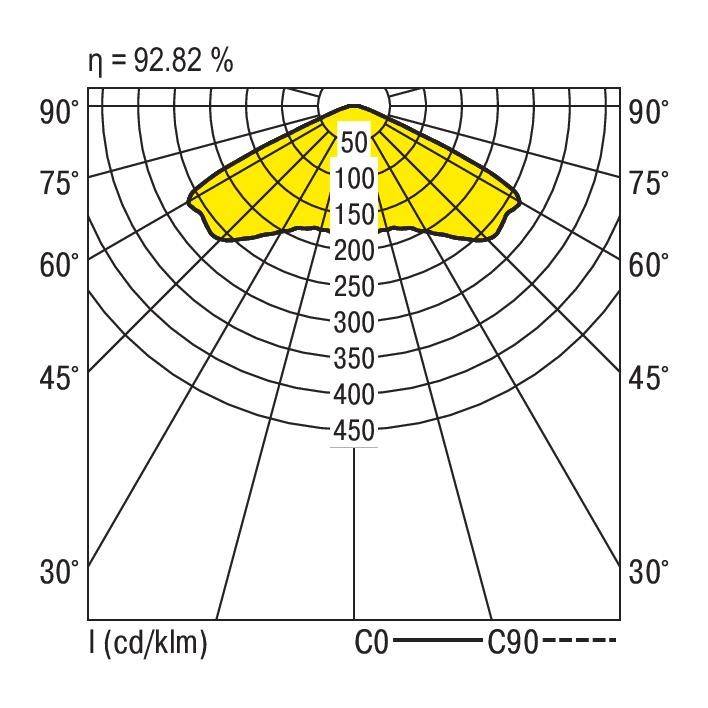

- Rated light current according to IEC 62722-2-1: 260 lm
- Colour temperature: 6500 K
- Nominal operation time 3 h
- Width 67 mm
- Height/depth 82 mm
- Length: 500 mm

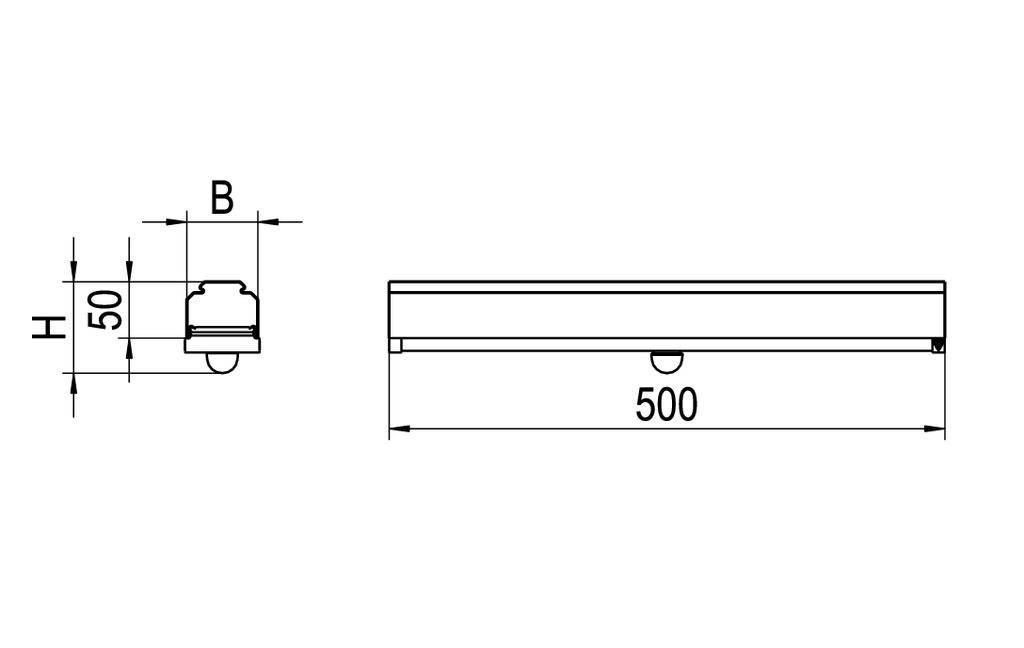

- Dim
(L x W x H) 500.00 x 67.00 x 82.00 mm
- Product type
LED emergency ligjht
- Max. battery life
3 h
- Type
Emergency exit
- Backlit
Yes
4 W
- Bulb type
LED (monochrome)
- Material
Aluminium
- Number of pins
7
- Width
67.00 mm
- Height
82.00 mm
- Depth
82 mm
IP54
- Protection class
I
- Rated luminous flux
+260 lm
- Factory colour
Silver
- Length
500.00 mm
- Colour temperature (max.)
6500 K
- Colour temperature (min.)
6500 K
- No. of bulbs
1
- Light bulb included
Yes
- Total luminous flux
260 lm
6500 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3163525 RIDI 1520198SI311 LED emergency ligjht Emergency exit
User & Safety Instructions
User & Safety Instructions 3163525 RIDI 1520198SI311 LED emergency ligjht Emergency exit
Description
Module insert emergency light, 500 mm, suitable for LINE mounting rail VLTM, adapter 7-pin, silver, similar to RAL 9006, protection type IP54, Light Output , Lens Rated Light Current 260 lm, 57 lm/W, Light Colour 865
