RIDI 1520198SW366 Emergency light power supply
EAN:
Part number:
Item no:
Technical specifications
- With pictogram: No.
- With remote switch connection: Yes
- With remote control: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Material of housing: Aluminium
- Black enclosure
- Operating device: LED operating device current-controlled
- Removable operating device: Yes
- Protection class (IP) IP54
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Max. System power 4 W
- Rated light current according to IEC 62722-2-1: 260 lm
- Colour temperature: 6500 K

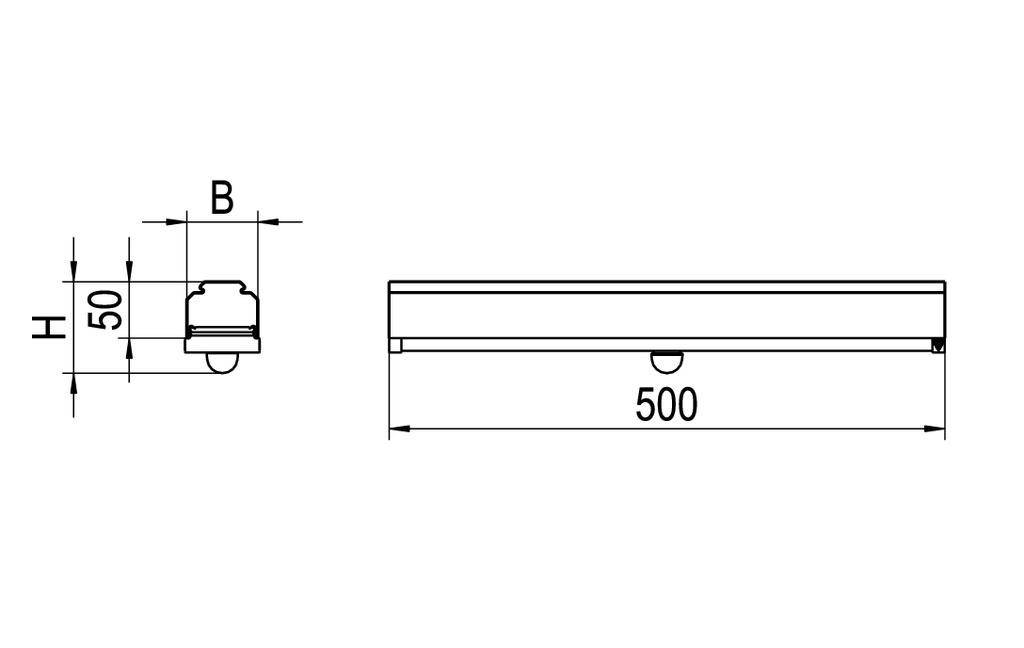

- Width 67 mm
- Height/depth 82 mm
- Length: 500 mm
- Dim
(L x W x H) 500.00 x 67.00 x 82.00 mm
- Product type
Emergency light power supply
- Backlit
Yes
4 W
- Bulb type
LED (monochrome)
- Material
Aluminium
- Number of pins
11
- Width
67.00 mm
- Height
82.00 mm
- Depth
82 mm
IP54
- Protection class
I
- Rated luminous flux
+260 lm
- Factory colour
Black
- Length
500.00 mm
- Colour temperature (max.)
6500 K
- Colour temperature (min.)
6500 K
- No. of bulbs
1
- Light bulb included
Yes
- Total luminous flux
260 lm
6500 K
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3134111 RIDI 1520198SW366 Emergency light power supply
User & Safety Instructions
User & Safety Instructions 3134111 RIDI 1520198SW366 Emergency light power supply
Description

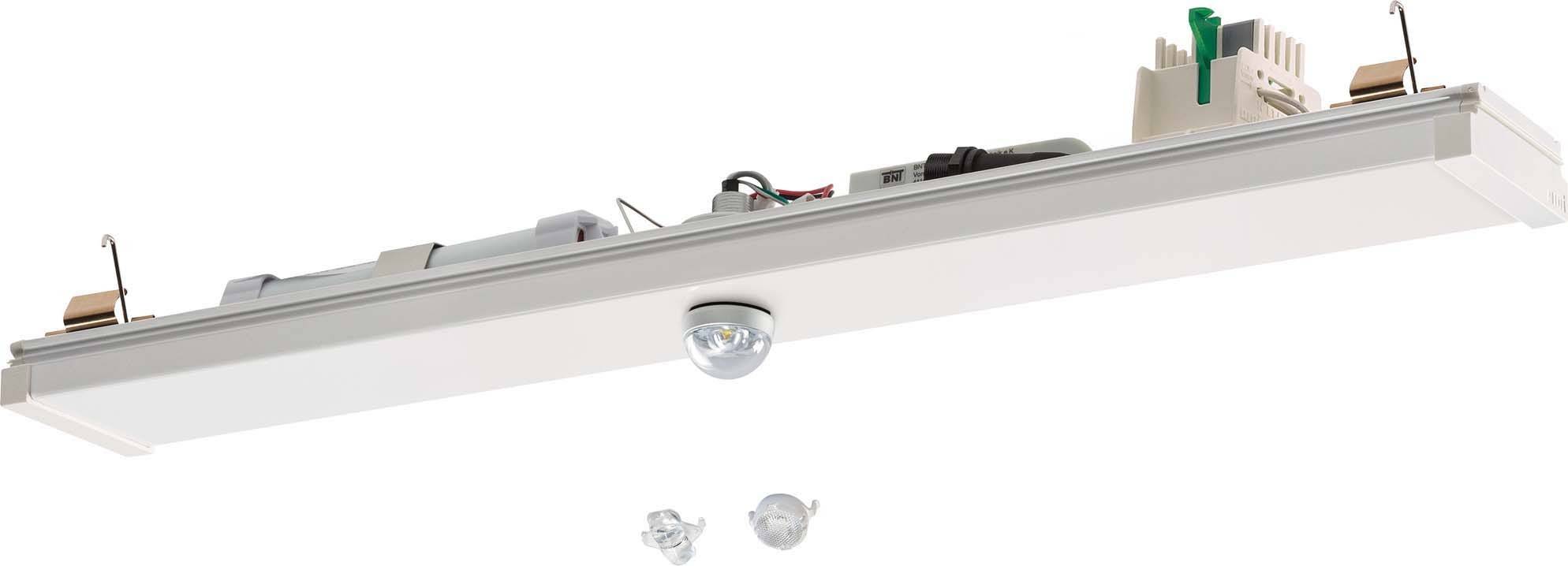

Module insert emergency light, 500 mm, suitable for LINE mounting rail VLTM, adapter 11-pin, black, similar to RAL 9005, protection type IP54, Light Output , Lens Rated Light Current 260 lm, 57 lm/W, Light Colour 865
