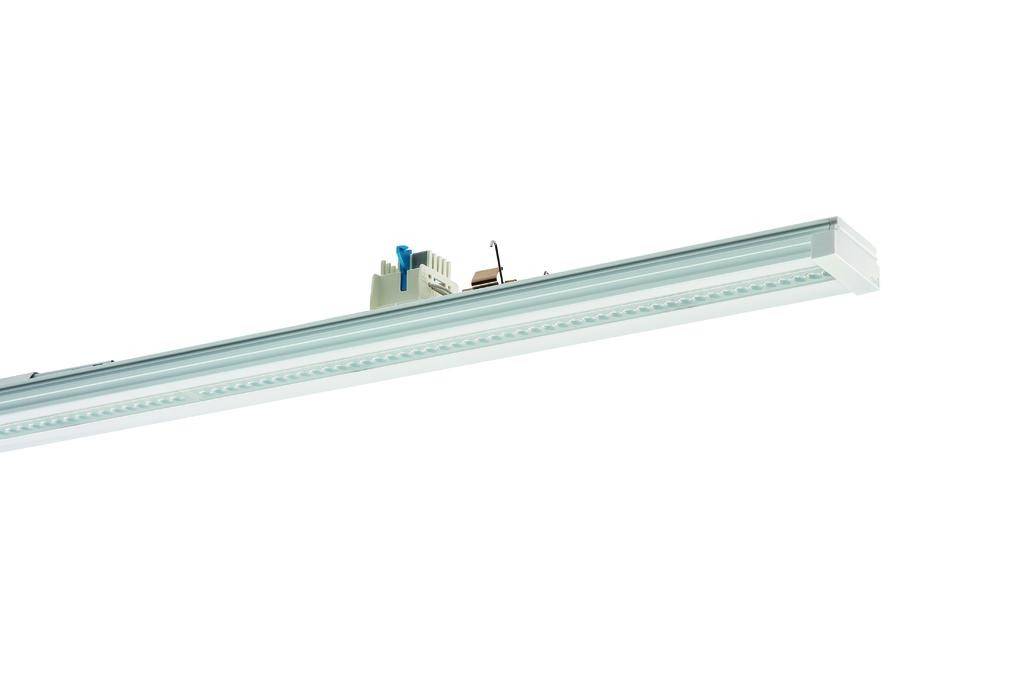

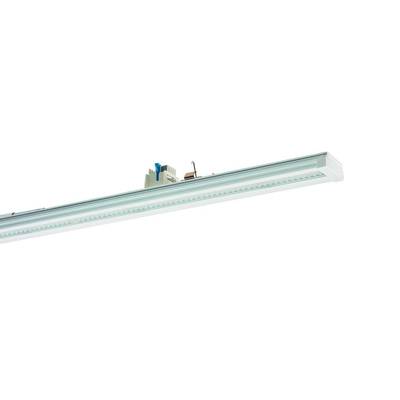

Buy RIDI 1551332 1551332 LED device mount 47 W LED (monochrome) White 1 pc(s)

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for the number of bulbs: 1
Bulb: LED not replaceable
With bulb: Yes
Material of housing: Aluminium
Housing color: White
Voltage type AC
Nominal voltage 220..240 V
Nominal current: 10000 mA
Operating device: LED operating device current-controlled
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
DALI dimming: No.
Dimmer DMX: No
Manufacturer-specific dimming: Yes
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimming function: Yes
Reflector: Without

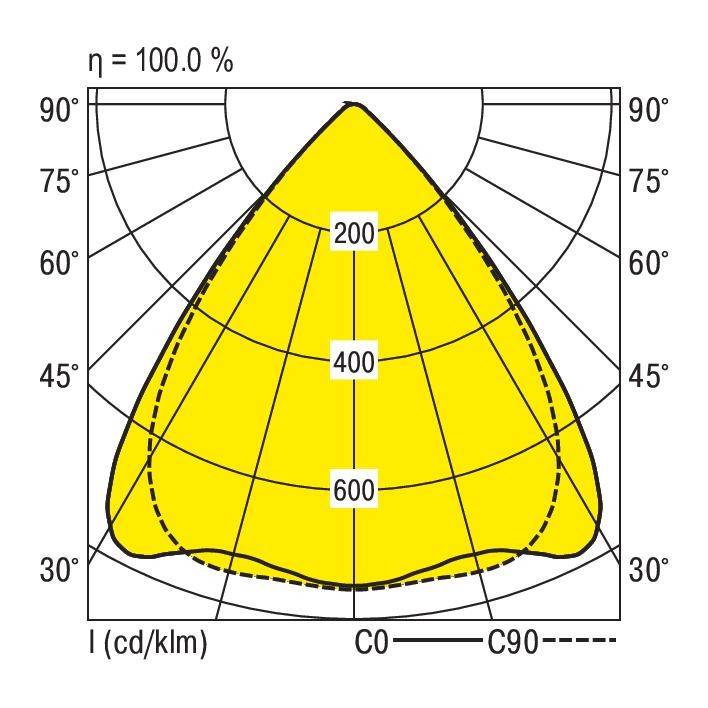

Light distribution: Symmetric
Light emission: Direct
Color consistency (McAdam ellipse): SDCM3
Rated life L80/B10 at 25 °C: 75000 h
Protection class (IP) IP54
Protection class: I
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Suitable for emergency light: No.
Integrated emergency power supply: No.
Max. System power 47 W
Rated light current according to IEC 62722-2-1: 8300 lm
Light output 176 lm/W
Light color: White
Colour temperature: 6500 K
Color Rendering Index CRI: 80-89
Adjustable radiation angle: No.
Adjustable color temperature: No.
Luminous flux can be set: No

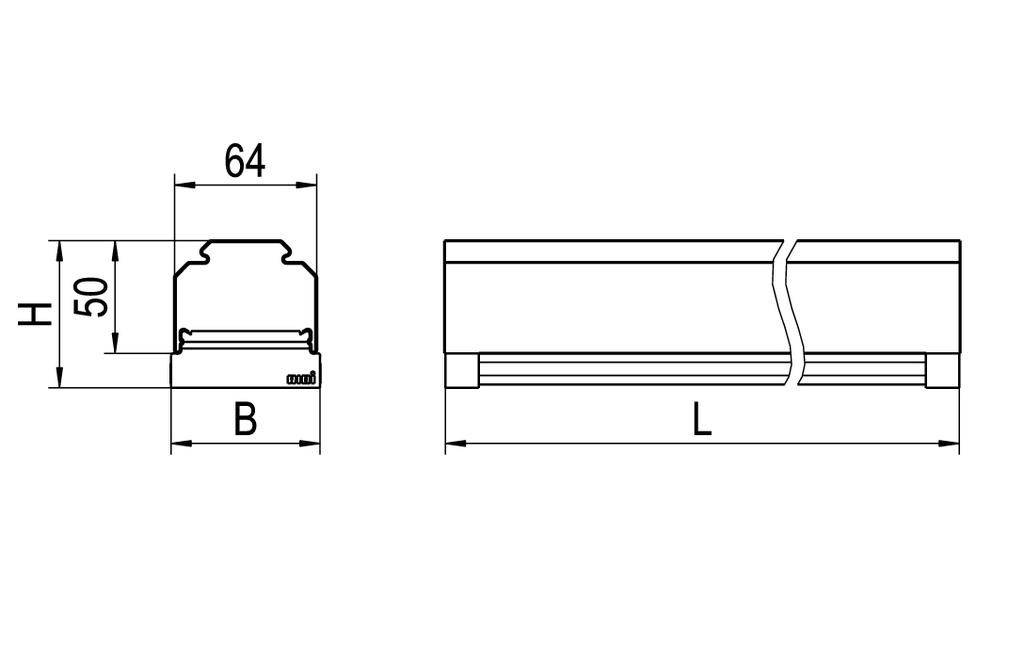

Width 67 mm
Height/depth 66 mm
Length: 1500 mm

Datasheet 3139888 RIDI 1551332 1551332 LED device mount 47 W LED (monochrome) White 1 pc(s)

User & Safety Instructions 3139888 RIDI 1551332 1551332 LED device mount 47 W LED (monochrome) White 1 pc(s)

Material device carrier: Aluminium profile, extruded
