Buy RIDI 1552002 1552002 LED device mount Built-in LED 60 W LED (monochrome) White 1 pc(s)

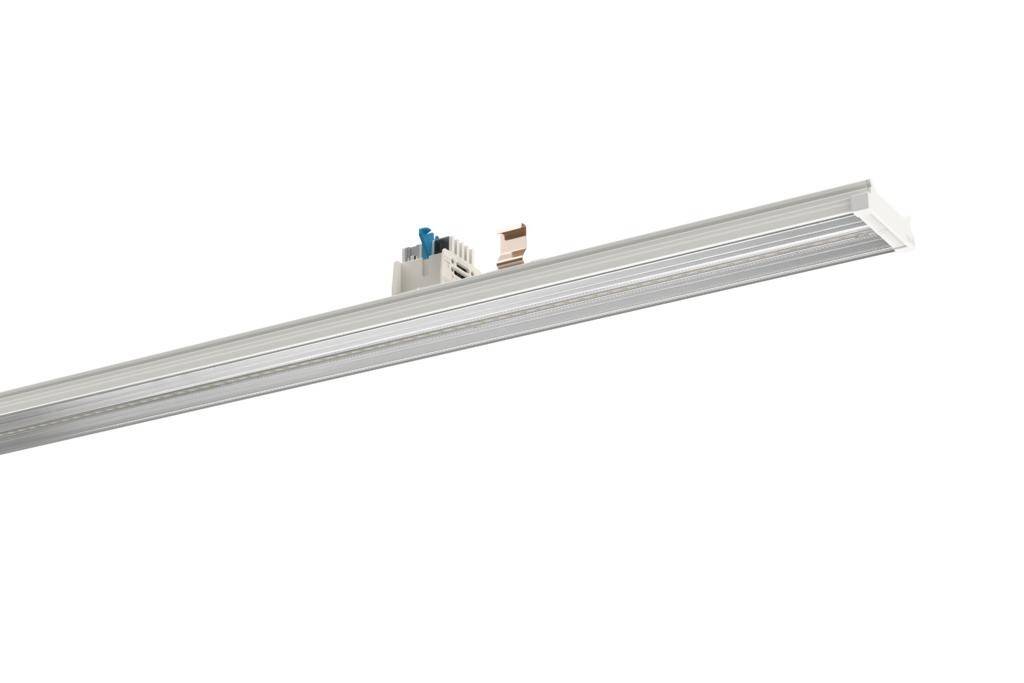

White linear light bar in a minimal design, suitable for modern interiors or workspaces, provides uniform illumination.

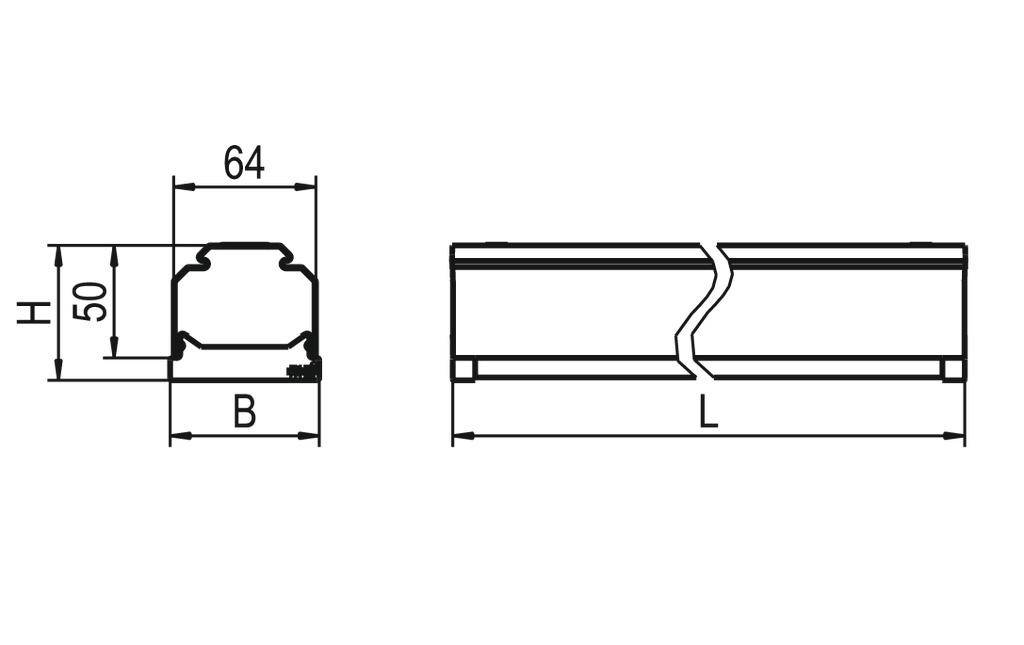

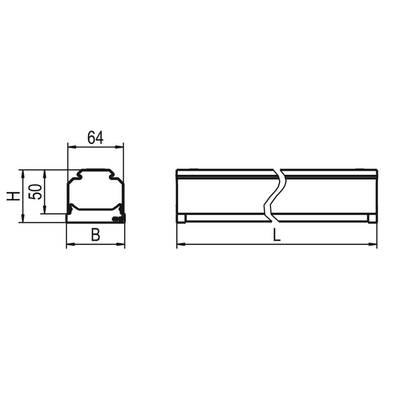

Technical drawing of aluminium profiles with dimensions: H = 50 mm, W = 64 mm, L = not specified. Side view and front view.

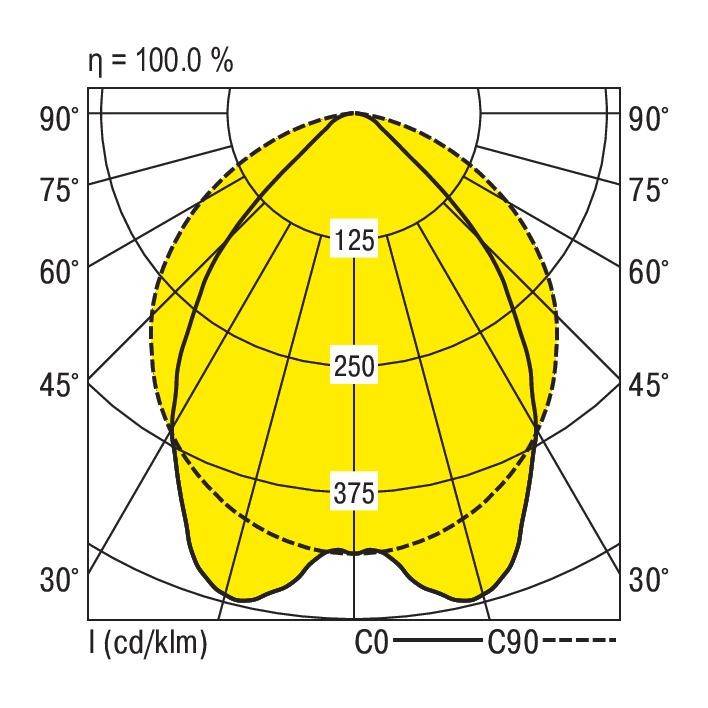

'Representation of a light distribution curve in polar coordinates. Shows light intensity distribution with symmetry axis from 0° to 90°.'

1/3

RIDI

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for the number of bulbs: 3
Bulb: LED not replaceable
With bulb: Yes
Material of housing: Aluminium
Housing color: White
Voltage type AC/DC
Nominal voltage 220..240 V
Operating device: LED operating device current-controlled
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
DALI dimming: No.
Dimmer DMX: No
Dimmer manufacturer-specific: No.
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimming function: Yes
Light distribution: Symmetric
Light emission: Direct
Color consistency (McAdam ellipse): SDCM3
Rated life L80/B10 at 25 °C: 74000 h
Protection class (IP) IP20
Protection class: I
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Integrated emergency power supply: No.
Max. System power 59 W
Rated light current according to IEC 62722-2-1: 8980 lm
Light color: White
Colour temperature: 4000 K
Color Rendering Index CRI: 80-89
Adjustable radiation angle: No.
Adjustable color temperature: No.
Luminous flux can be set: No
Width 67 mm
Height/depth 64 mm
Length: 1500 mm

Product type: LED device mount

Operating voltage: 230 V

No. of bulbs: 3

: Built-in LED

Bulb type: LED (monochrome)

Rating per bulb: 20 W

: 60 W

: 4000 K

Colour: White

: 8980 lm

Total luminous flux: 8980 lm

Light features: Incl. ballast

: IP20

Protection class: I

Factory colour: White

Material: Aluminium

Dim: (L x W x H) 1500.00 x 67.00 x 64.00 mm

: n.rel.

Type: Rod

Colour rendering index: 80-89

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Width: 67.00 mm

Height: 64.00 mm

Length: 1500.00 mm

Rated luminous flux: 8980 lm

Light bulb included: Yes

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3139834 RIDI 1552002 1552002 LED device mount Built-in LED 60 W LED (monochrome) White 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3139834 RIDI 1552002 1552002 LED device mount Built-in LED 60 W LED (monochrome) White 1 pc(s)

Description

VL1GP device mount, 1500 mm, suitable for VLTM mounting rail, 5-pin adapter, traffic white, similar to RAL 9016, on/off, Direct light emission, longitudinal prismatic wide radiation cover, protection class IP20, rated light current 8980 lm, rated power 59 W, 152 lm/W, light color 840
