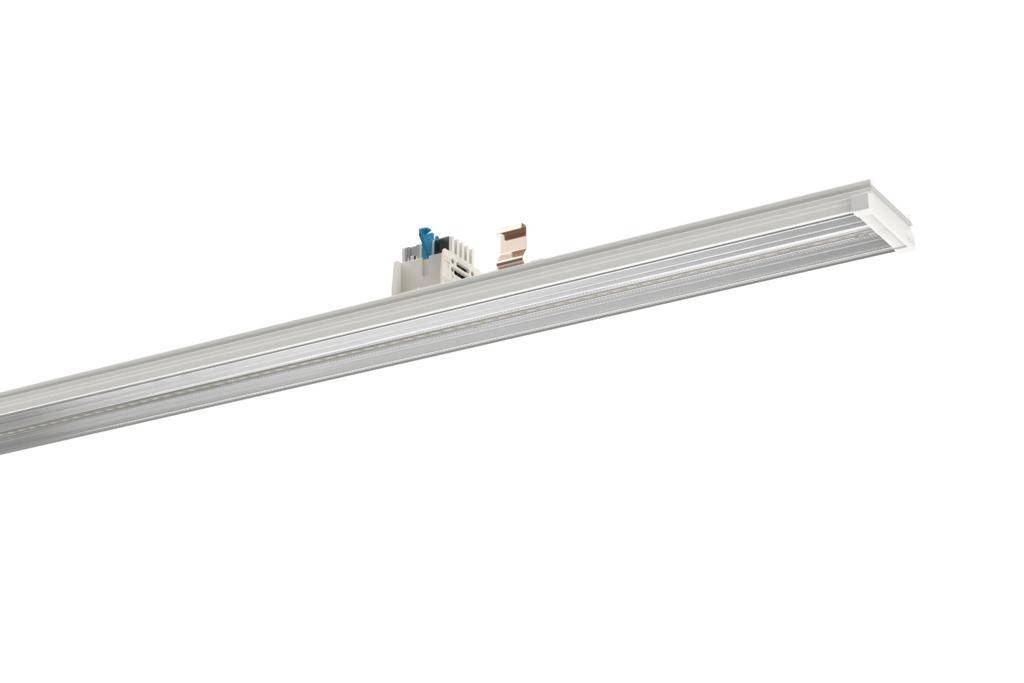

RIDI 1552008 1552008 LED device mount 56 W LED (monochrome) White 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for the number of bulbs: 1
- Bulb: LED not replaceable
- With bulb: Yes
- Material of housing: Steel
- Housing color: White
- Voltage type AC/DC
- Nominal voltage 220..240 V
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimmer DMX: No
- Manufacturer-specific dimming: Yes
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes

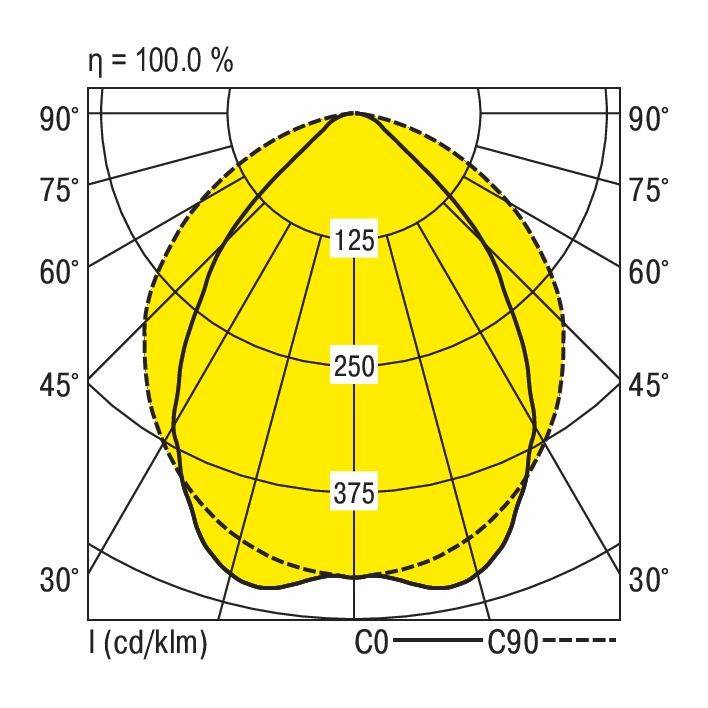

- Light distribution: Symmetric
- Light emission: Direct
- Color consistency (McAdam ellipse): SDCM3
- Rated life L80/B10 at 25 °C: 55000 h
- Protection class (IP) IP54
- Protection class: I
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Integrated emergency power supply: No.
- Max. System power 56 W
- Rated light current according to IEC 62722-2-1: 8900 lm
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Adjustable radiation angle: No.
- Adjustable color temperature: No.
- Luminous flux can be set: No

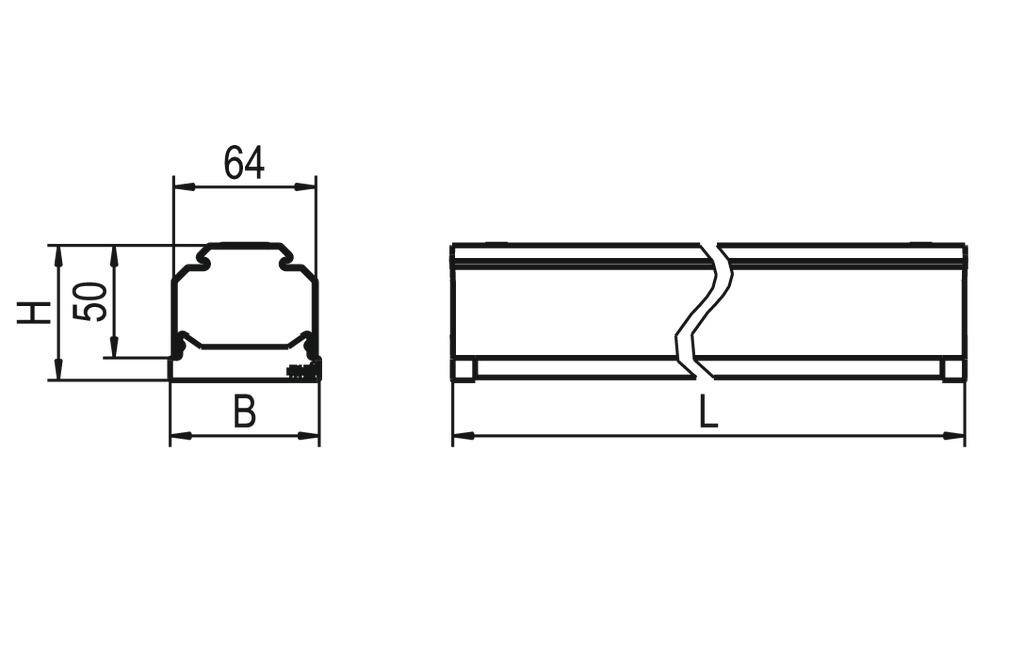

- Width 67 mm
- Height/depth 65 mm
- Length: 1486 mm
- Product type
LED device mount
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
56.9 W
56 W
4000 K
- Colour
White
8900 lm
- Total luminous flux
8900 lm
- Light features
Dimmable
IP54
- Protection class
I
- Factory colour
White
- Material
Steel
- Dim
(L x W x H) 1486.00 x 67.00 x 65.00 mm
n.rel.
- Colour rendering index
80-89
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Width
67.00 mm
- Height
65.00 mm
- Length
1486.00 mm
- Rated luminous flux
8900 lm
- Light bulb included
Yes
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3139844 RIDI 1552008 1552008 LED device mount 56 W LED (monochrome) White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3139844 RIDI 1552008 1552008 LED device mount 56 W LED (monochrome) White 1 pc(s)
Description
VL1GPS equipment carrier, 1486 mm, suitable for LINE VLTM mounting rail, 5-pin adapter, traffic white, similar to RAL 9016, xFlex, Direct light emission, longitudinal prismatic wide radiation cover, protection class IP54, rated light current 8900 lm, rated power 56.9 W, 156 lm/W, light color 840
