Buy RIDI 1562004 1562004 LED device mount 58 W LED (monochrome) White 1 pc(s)

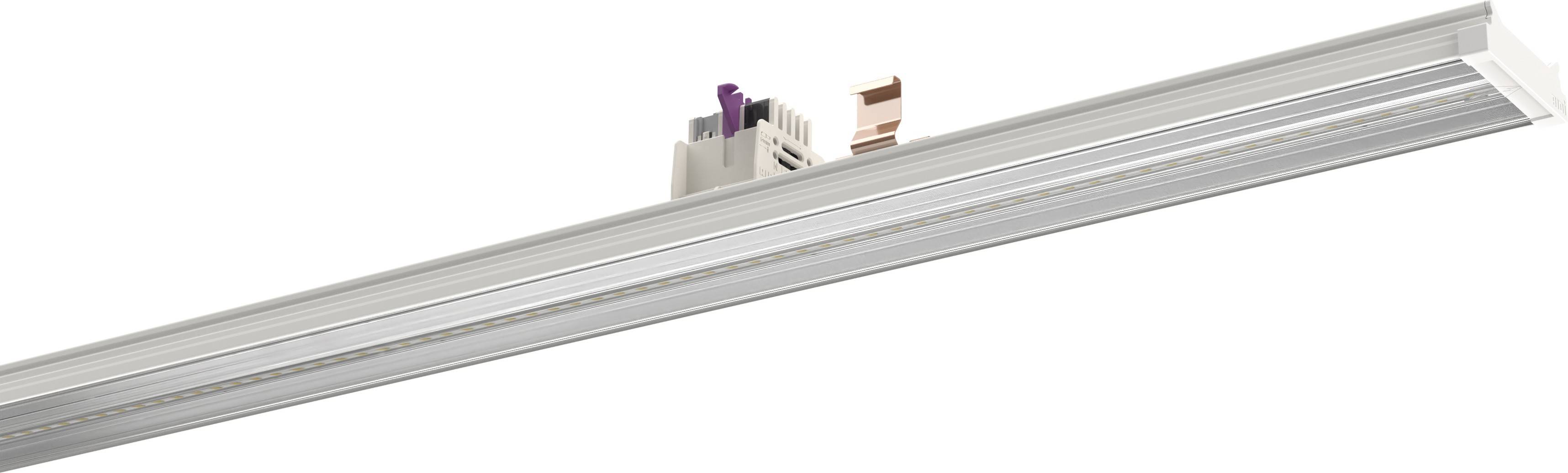

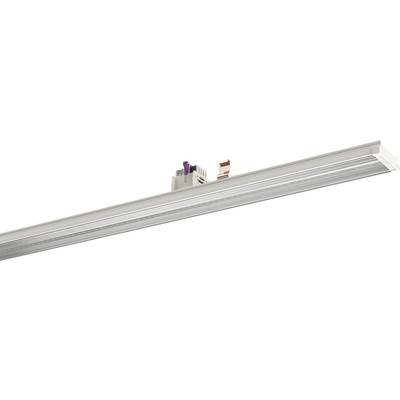

A linear LED luminaire in a long, narrow housing suitable for ceiling mounting. A connection block is visible at the top.

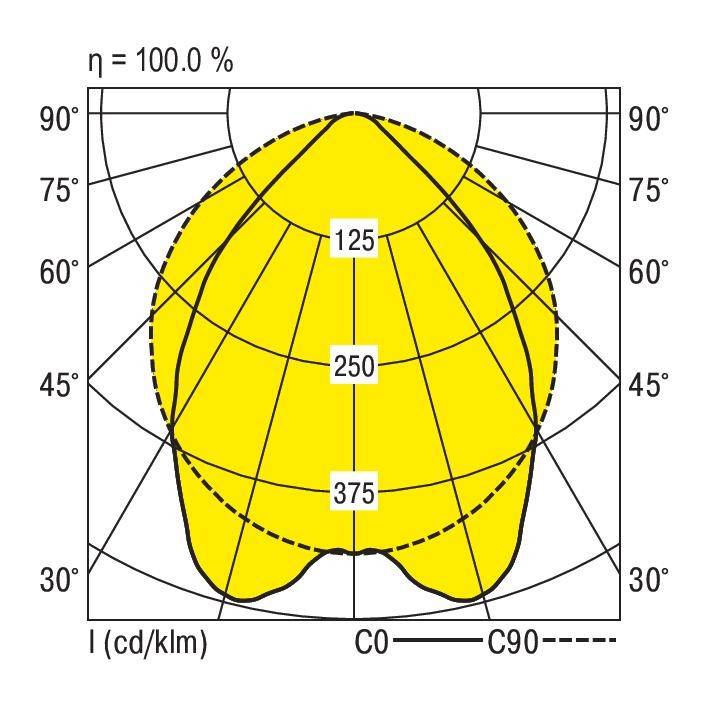

'Polar diagram of a luminaire: shows light distribution in yellow. Central values: 125, 250, 375 cd/klm along C0-C90. Efficiency η=100%.'

1/3

RIDI

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for the number of bulbs: 3
Bulb: LED not replaceable
With bulb: Yes
Material of housing: Aluminium
Housing color: White
Voltage type AC/DC
Nominal voltage 220..240 V
Operating device: LED operating device current-controlled
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
DALI dimming: Yes
Dimmer DMX: No
Dimmer manufacturer-specific: No.
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimmer function: No.
Light distribution: Symmetric
Light emission: Direct
Color consistency (McAdam ellipse): SDCM3
Rated life L80/B10 at 25 °C: 74000 h
Protection class (IP) IP54
Protection class: I
Filament testing according to IEC 60695-2-11:650°C - 30 s.
Integrated emergency power supply: No.
Max. System power 58 W
Rated light current according to IEC 62722-2-1: 8980 lm
Light output 155 lm/W
Light color: White
Colour temperature: 4000 K
Color Rendering Index CRI: 80-89
Adjustable radiation angle: No.
Adjustable color temperature: No.
Luminous flux can be set: No
Width 67 mm
Height/depth 64 mm
Length: 1500 mm

Product type: LED device mount

Operating voltage: 230 V

No. of bulbs: 3

Bulb type: LED (monochrome)

Rating per bulb: 19 W

: 58 W

: 4000 K

Colour: White

: 8980 lm

Total luminous flux: 8980 lm

Light features: Dimmable

: IP54

Protection class: I

Factory colour: White

Material: Aluminium

Dim: (L x W x H) 1500.00 x 67.00 x 64.00 mm

: n.rel.

Colour rendering index: 80-89

Colour temperature (max.): 4000 K

Colour temperature (min.): 4000 K

Colour temperature range: 4000 - 4000 K

Width: 67.00 mm

Height: 64.00 mm

Length: 1500.00 mm

Rated luminous flux: 8980 lm

Light bulb included: Yes

Nominal voltage: 230 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3140015 RIDI 1562004 1562004 LED device mount 58 W LED (monochrome) White 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3140015 RIDI 1562004 1562004 LED device mount 58 W LED (monochrome) White 1 pc(s)

Description

VL1GPS equipment carrier, 1500 mm, suitable for LINE VLTM mounting rail, 7-pin adapter, traffic white, similar to RAL 9016, DALI-2, Direct light emission, wide-beam diffuser, protection class IP54, rated light current 8980 lm, rated power 58 W, 154 lm/W, light color 840

This text is machine translated.
