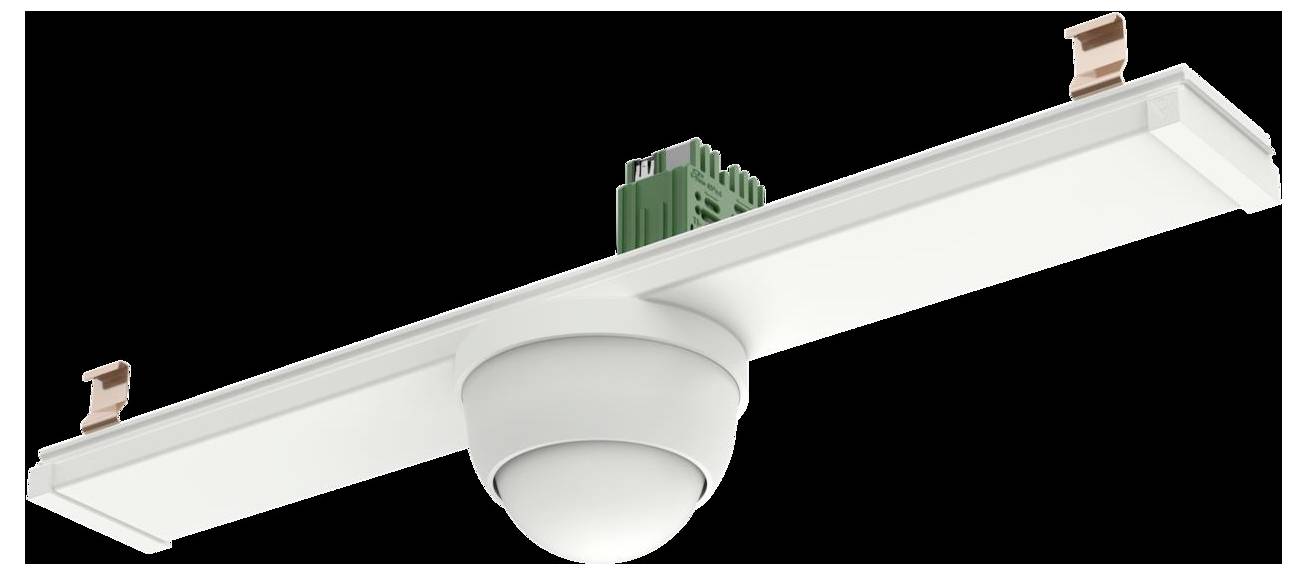

Image similar
RIDI 2500019 VL2MF-S500- #2500019 Device mount 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Height: 138 mm
- Width 103 mm
- Design: Presence detectors
- Mounting type: Other
- Material: Metal
- Colour: white
- Protection class (IP) IP54
- Surface protection: Untreated
- Impact strength: IK04
- Transparent: No.
- Design of surface: Matt
- Nominal voltage: 230 V
- Connection type: Other
- Halogen-free: Yes
- Voltage type AC
- Frequency: 50 Hz
- Max. Switching capacity LED 300 W
- Max. switching capacity 2300 W
- Suitable for C-Load: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for wall mounting: No.
- Suitable for ceiling mounting: No.
- Material quality: Other
- Antibacterial treatment: No.
- RAL number (similar): 9016
- Response brightness adjustable: Yes
- Optimum mounting height 2.5 m.
- Max. Range to one side: 12 m.
- Max. Range: Front 4 m
- Capturing field Diameter on floor: 24 m.
- Staircase monitoring: No.
- Min Switch-on time 15 seconds
- Max. duty cycle 30 min
- Constant light control: No.
- HVAC activation: No.
- Network-compatible: No.
- Suitable for wireless transmission: No.
- Low-level detection/back field monitoring: Yes
- Response sensitivity adjustable: Yes
- Teach-Function for Response Brightness: Yes
- Dimming function with dimming element: No.
- Animal slope: No.
- Extension input: Yes
- With remote control: No.
- Sensor type: Passive infrared
- With DALI interface: No.
- Forced shutdown: No.
- Rear field monitoring: No.
- Bridge switch: No.
- Max. Presence area: 32 m²
- Remote control: Yes
- With signal unit: No.
- Switch-off delay 0 s.
- Response brightness 20 - .2000 Lux
- Temperature: -25..50°C
- Max. Power surge 165 A
- With acoustic sensor: No.
- Switch-on delay 0 s.
- Number of switching zones: 450
- Control current 2 mA
- Product type
Device mount
IP20
n.rel.
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3541889 RIDI 2500019 VL2MF-S500- #2500019 Device mount 1 pc(s)
Description
Sensor module application with Master-presence sensor (on/off). Device carrier made of aluminum profile, extruded, traffic white, similar to RAL 9016. Polycarbonate sensor, UV resistant. Simple clipping for electrical contact and mechanical fixing in system-bound LINA EVO mounting rail. Colour and optical coding for easy mounting. Mechanical coding to prevent incorrect mounting (anti-twist protection). Nominal voltage 230 V AC 50 Hz. Electrical adapter for flexible tapping of the power supply in the rail. Colour and optical coding for easy mounting. With light and motion detector. Detection range transverse Ø 24 m, detection field 452 m². Daylight-dependent presence recognition with adjustable daylight threshold, basic light level and delay times. Setup and configuration via B.E.G. One APP and Bluetooth/Infrared adapter Art.-No. 0209282. Expansion of the detection field by connecting up to 8 slave sensors. Manual on and off of the connected lights via push-button input. Modules can also be used in conjunction with 7-pin DIN rail. The module inserts can be placed variably between the device carriers. Depending on the design, modules cannot be placed in the connector area. Including cover plates/blinds for limiting the sensor detection field.
