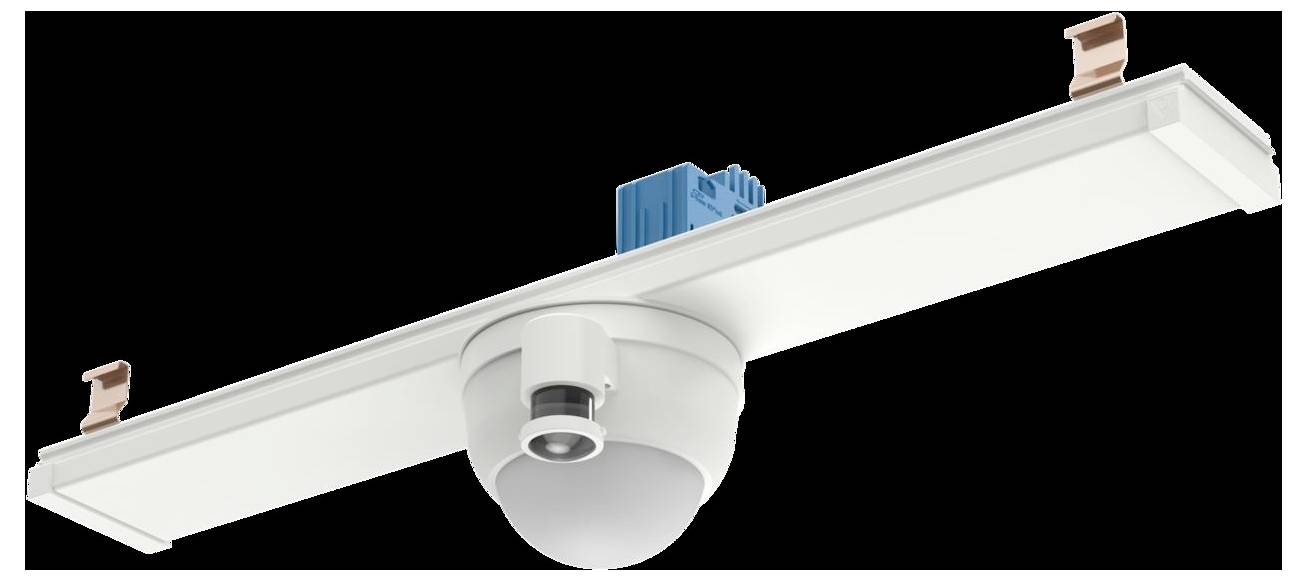

RIDI 2500033 VL2MFS500-5PD4CAS-GH Device mount 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Height: 142 mm
- Width: 119 mm
- Design: Presence detectors
- Mounting type: Other
- Material: Metal
- Colour: white
- Protection class (IP) IP54
- Surface protection: Untreated
- Impact strength: IK04
- Transparent: No.
- Design of surface: Matt
- Nominal voltage: 230 V
- Halogen-free: Yes
- Voltage type AC
- Frequency: 50 Hz
- Suitable for C-Load: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for wall mounting: No.
- Suitable for ceiling mounting: No.
- With connection cable: No.
- Material quality: Other
- Antibacterial treatment: No.
- RAL number (similar): 9016
- Response brightness adjustable: Yes
- Optimum mounting height 14 m.
- Max. Range to one side: 15 m.
- Max. Range: Front 30 m
- Capturing field Diameter on floor: 30 m.
- Staircase monitoring: Yes
- Constant light control: Yes
- HVAC activation: No.
- Network-compatible: No.
- Suitable for wireless transmission: No.
- Low-level detection/back field monitoring: Yes
- Response sensitivity adjustable: Yes
- Teach-Function for Response Brightness: Yes
- Dimming function with dimming element: No.
- Animal slope: No.
- Extension input: Yes
- With remote control: No.
- Sensor type: Passive infrared
- With DALI interface: Yes
- Forced shutdown: Yes
- Rear field monitoring: No.
- Bridge switch: No.
- Max. Presence area: 0 m²
- Remote control: Yes
- With signal unit: No.
- Switch-off delay 0 s.
- Response brightness 1 - .4000 Lux
- Temperature: -5..45°C
- With acoustic sensor: No.
- Switch-on delay 0 s.
- Number of switching zones: 700
- Control current 4 mA
- Product type
Device mount
IP20
n.rel.
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3541605 RIDI 2500033 VL2MFS500-5PD4CAS-GH Device mount 1 pc(s)
Description
Sensor module application with Bluetooth Low Energy / BLE light and presence sensor (Casambi). Can be used as a presence sensor and/or as a light sensor in a Casambi network. Device carrier made of aluminum profile, extruded, traffic white, similar to RAL 9016. Polycarbonate sensor, UV resistant. Simple clipping for electrical contact and mechanical fixing in system-bound LINA EVO mounting rail. Colour and optical coding for easy mounting. Mechanical coding to prevent incorrect mounting (anti-twist protection). Nominal voltage 230 V AC 50 Hz. Electrical adapter for flexible tapping of the power supply in the rail. Colour and optical coding for easy mounting. With light and motion detector. Detection range transverse 30 x 19 m, detection field 446 m². Daylight-dependent presence recognition with adjustable daylight threshold, basic light level and delay times. External, mechanically adjustable to a mounting height of between 5 and 16 m telescopic light sensor. Configurable via Casambi APP The module inserts can be placed variably between the device carriers. Depending on the design, modules cannot be placed in the connector area. Including cover plates/blinds for limiting the sensor detection field.
