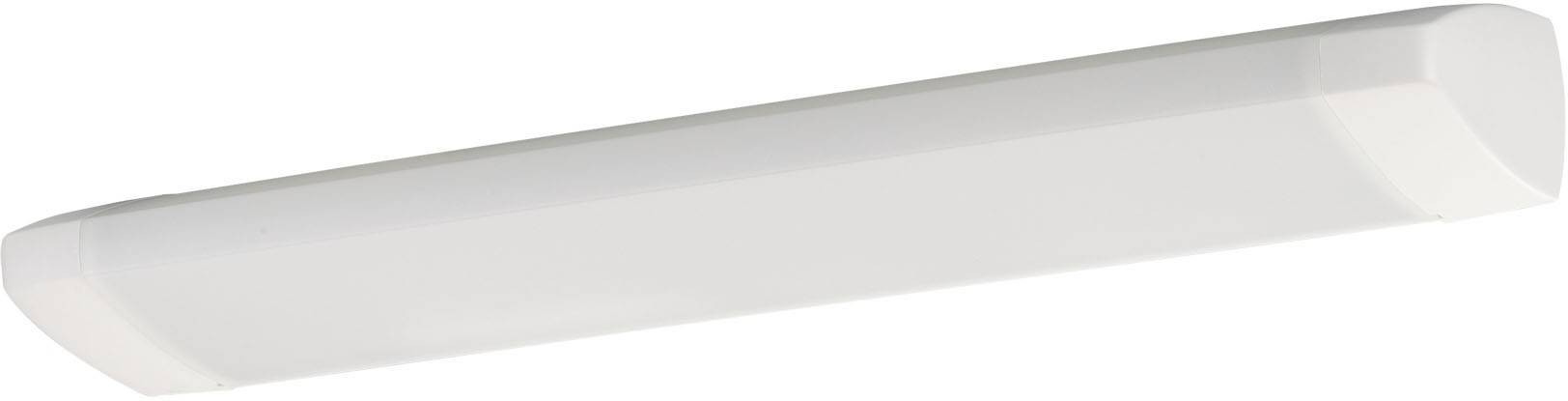

RIDI 422193 422193 LED ceiling light LED (monochrome) Built-in LED 13 W White
EAN:
Part number:
Item no:
Highlights & Details
Ridi-lights LED-tub lamp 840 SPN0660NDWS840O0175
- Power= 13 W
- Total luminous flux= 1700 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: Yes
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on a panel: No.
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for the number of bulbs: 1
- Material of housing: Steel
- Surface protection housing: Powder-coated
- Housing color: White
- Cover material: Plastic opal
- Design of grid: Without
- Voltage type AC
- Nominal voltage 220..240 V
- Nominal current: 1700000 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: Yes
- Without dimming function: Yes

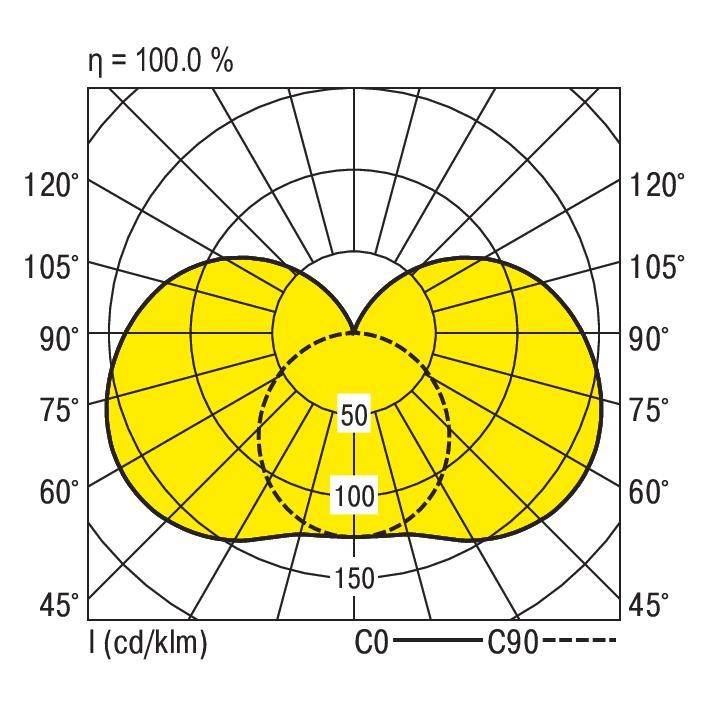

- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Max. Number of lights circuit breaker B16: 36
- Max. Number of lamps line circuit breakers C16: 60
- Protection class (IP) IP40
- Impact strength: IK03
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- With air vents: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. System power 13 W
- Light output 130 lm/W
- Rated light current according to IEC 62722-2-1: 1700 lm
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89

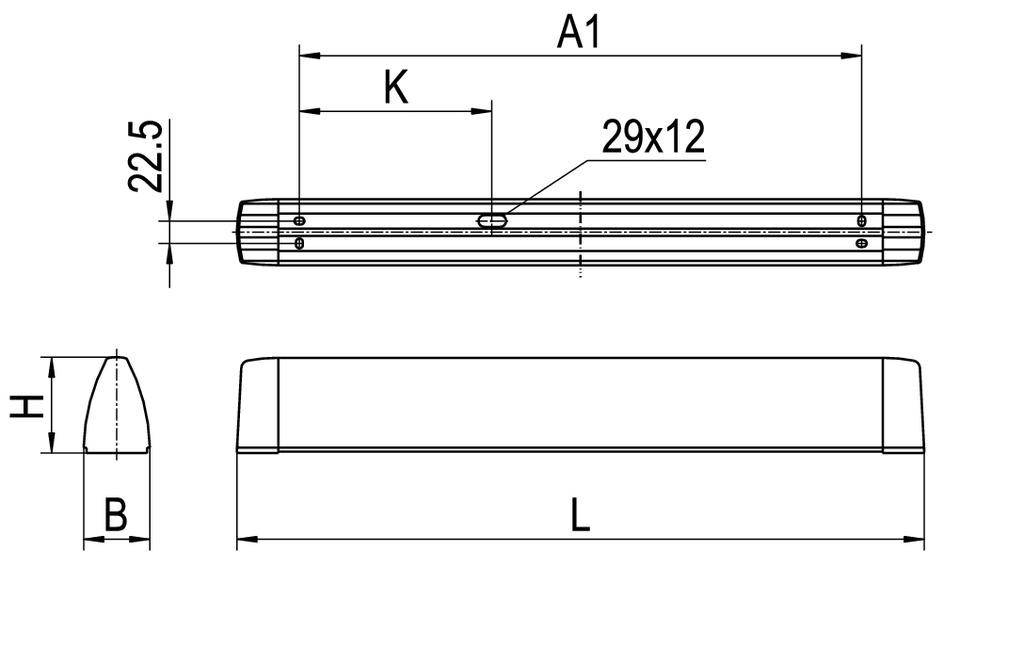

- Width 67 mm
- Height/depth 97 mm
- Length: 660 mm
- Glare limiter (UGR): 22.6
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Bulb: LED not replaceable
- With bulb: Yes
- Dim
(L x W x H) 660.00 x 67.00 x 97.00 mm
- Operating voltage
230 V
- No. of bulbs
1
- Product type
LED ceiling light
- Width
67.00 mm
- Bulb type
LED (monochrome)
- Height
97.00 mm
Built-in LED
- Length
660.00 mm
- Rating per bulb
13 W
- Depth
97 mm
13 W
- Light features
Incl. ballast
- Protection class
I
IP40
- Factory colour
White
- Material
Steel
n.rel.
- Colour rendering index
80-89
- Colour
White
- Light bulb included
Yes
4000 K
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Total luminous flux
1700 lm
1700 lm
- Rated luminous flux
1700 lm
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3139728 RIDI 422193 422193 LED ceiling light LED (monochrome) Built-in LED 13 W White
User & Safety Instructions
User & Safety Instructions 3139728 RIDI 422193 422193 LED ceiling light LED (monochrome) Built-in LED 13 W White
Description
Ceiling and wall lamp SPN, extension, traffic white, similar to RAL 9016, on/off, light output , extremely wide beam optical cover, length 660 mm, width 67 mm, height 97 mm, protection class IP40, Shock resistance IK03, Rated light current 1700 lm, rated power 13 W, 130 lm/W, light color 840, Reference value UGR 22
