RIDI 450030 450030 Ceiling light LED (monochrome) LED 68 W White
EAN:
Part number:
Item no:
Highlights & Details
Ridi lamps, recessed light for RIDI-Tube WL-R2X115/30ND-O
- Power= 68 W
- Total luminous flux= 6910 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: Yes
- Suitable for pendulum suspension: Yes
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for mounting on a panel: No.
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for the number of bulbs: 2
- Version: Other
- Material of housing: Steel
- Surface protection housing: Powder-coated
- Housing color: White
- Cover material: Plastic opal
- Voltage type AC
- Nominal voltage 220..240 V
- Nominal current: 6912000 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: Yes
- Without dimming function: Yes

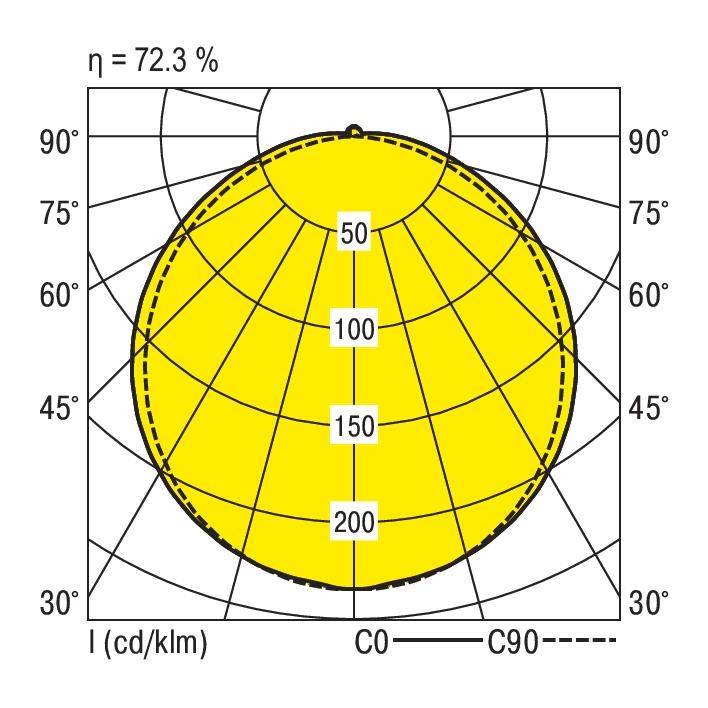

- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Max. Number of lights circuit breaker B16: 24
- Max. Number of lamps line circuit breakers C16: 40
- Protection class (IP) IP40
- Impact strength: IK04
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Covering of the lamp with thermal insulation material is possible: No.
- With air vents: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Suitable for lamp output 30 W
- Max. System power 68 W
- Light output 101 lm/W
- Rated light current according to IEC 62722-2-1: 6910 lm
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Width 178 mm
- Height/depth 60 mm
- Length: 1220 mm
- Mounting length 1205 mm
- Mounting width 165 mm
- Glare limiter (UGR): 24.1
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- LED bulb, replaceable
- With bulb: No.
- Dim
(L x W x H) 1220.00 x 178.00 x 60.00 mm
- Operating voltage
230 V
- No. of bulbs
2
- Product type
Ceiling light
- Width
178.00 mm
- Bulb type
LED (monochrome)
- Height
60.00 mm
LED
- Length
1220.00 mm
- Rating per bulb
30 W
- Depth
60 mm
68 W
- Light features
Incl. ballast
- Protection class
I
IP40
- Factory colour
White
- Material
Steel
n.rel.
- Colour rendering index
80-89
- Colour
White
- Light bulb included
No
4000 K
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Total luminous flux
6910 lm
- Rated luminous flux
6910 lm
- Recess length
1205 mm
- Recess width
165 mm
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3145547 RIDI 450030 450030 Ceiling light LED (monochrome) LED 68 W White
User & Safety Instructions
User & Safety Instructions 3145547 RIDI 450030 450030 Ceiling light LED (monochrome) LED 68 W White
Description
Ceiling Light WL, mounting, white, on/off, light output , Cover opal extremely wide radiation, length 1220 mm, width 178 mm, height 60 mm, protection class IP40, Shock resistance IK04, Rated light current 6910 lm, Rated power 68 W, 101 lm/W, Light color 840, Reference value UGR 24
