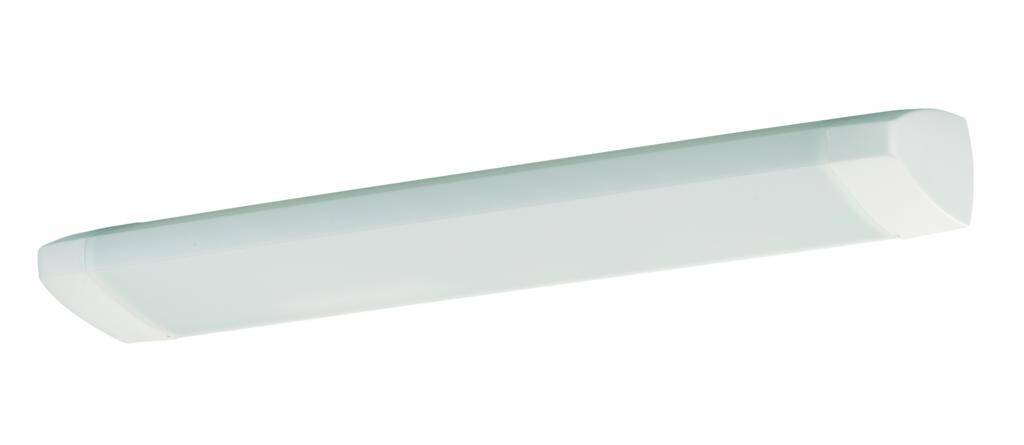

RIDI 450049 450049 Mirror light White White
EAN:
Part number:
Item no:
Highlights & Details
Ridi-lamp mirror lamp for RIDI-Tube SPN-R1X115/30ND
- Total luminous flux= 3690 lm Colour temperature= 4000 K White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: Yes
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on a panel: No.
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Aluminium
- Surface protection housing: Powder-coated
- Housing color: White
- Cover material: Plastic opal
- Design of grid: Without
- Voltage type AC
- Nominal voltage 220..240 V
- Nominal current: 3695000 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: Yes
- Without dimming function: Yes

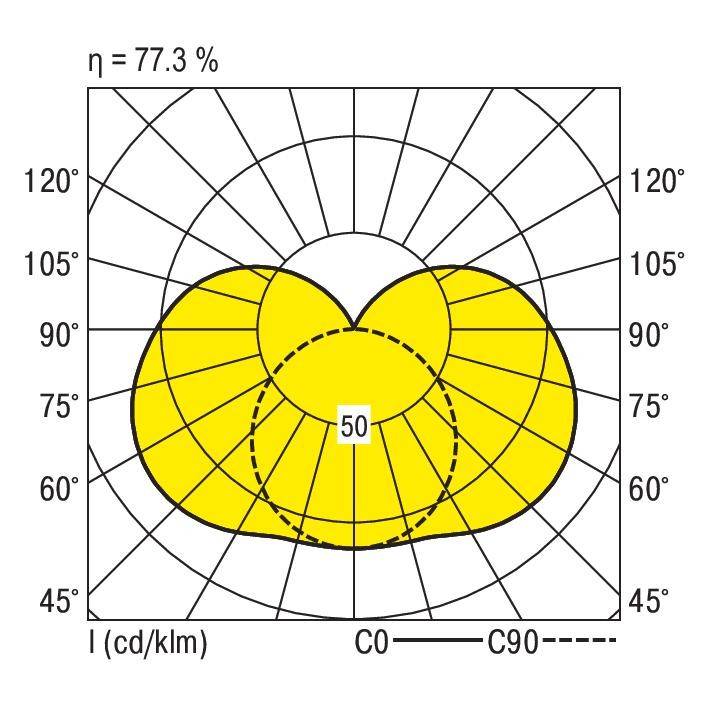

- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Max. Number of lights circuit breaker B16: 35
- Max. Number of lamps line circuit breakers C16: 59
- Protection class (IP) IP40
- Protection class: I
- Lamp with limited surface temperature ""D-sign"": No.
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Covering of the lamp with thermal insulation material is possible: No.
- With air vents: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Suitable for lamp output 30 W
- Max. System power 34 W
- Light output 108 lm/W
- Rated light current according to IEC 62722-2-1: 3690 lm
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89

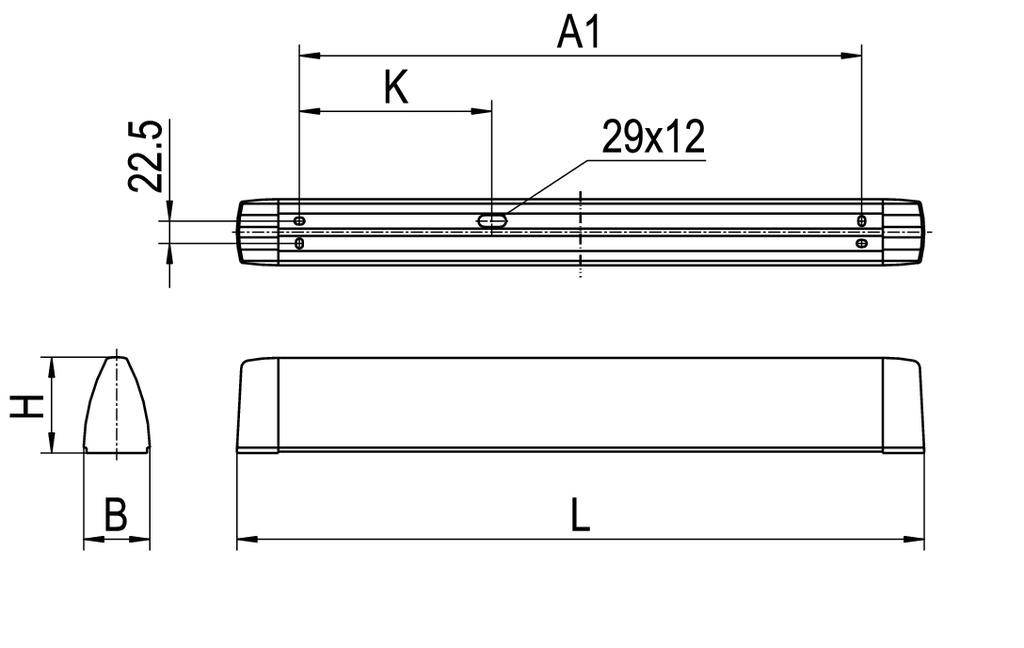

- Width 67 mm
- Height/depth 97 mm
- Length: 1260 mm
- Glare limiter (UGR): 22.7
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- LED bulb, replaceable
- With bulb: No.
- Product type
Mirror light
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Rating per bulb
30 W
4000 K
- Colour
White
- Total luminous flux
3690 lm
- Protection class
I
IP40
- Factory colour
White
- Material
Aluminium
- Dim
(L x W x H) 1260.00 x 67.00 x 97.00 mm
n.rel.
- Colour rendering index
80-89
- Light bulb included
No
- Width
67.00 mm
- Height
97.00 mm
- Length
1260.00 mm
- Rated luminous flux
3690 lm
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3145492 RIDI 450049 450049 Mirror light White White
User & Safety Instructions
User & Safety Instructions 3145492 RIDI 450049 450049 Mirror light White White
Description
Ceiling and wall light SPN, mounting, white, on/off, light output , Cover opal extremely wide radiation, length 1260 mm, width 67 mm, height 97 mm, protection class IP40, Rated light current 3690 lm, rated power 34 W, 108 lm/W, light color 840, reference value UGR 22
