Buy RIDI 522533 LED strip light Bulb cannot be changed 44 W 1488.00 mm White 1 pc(s)

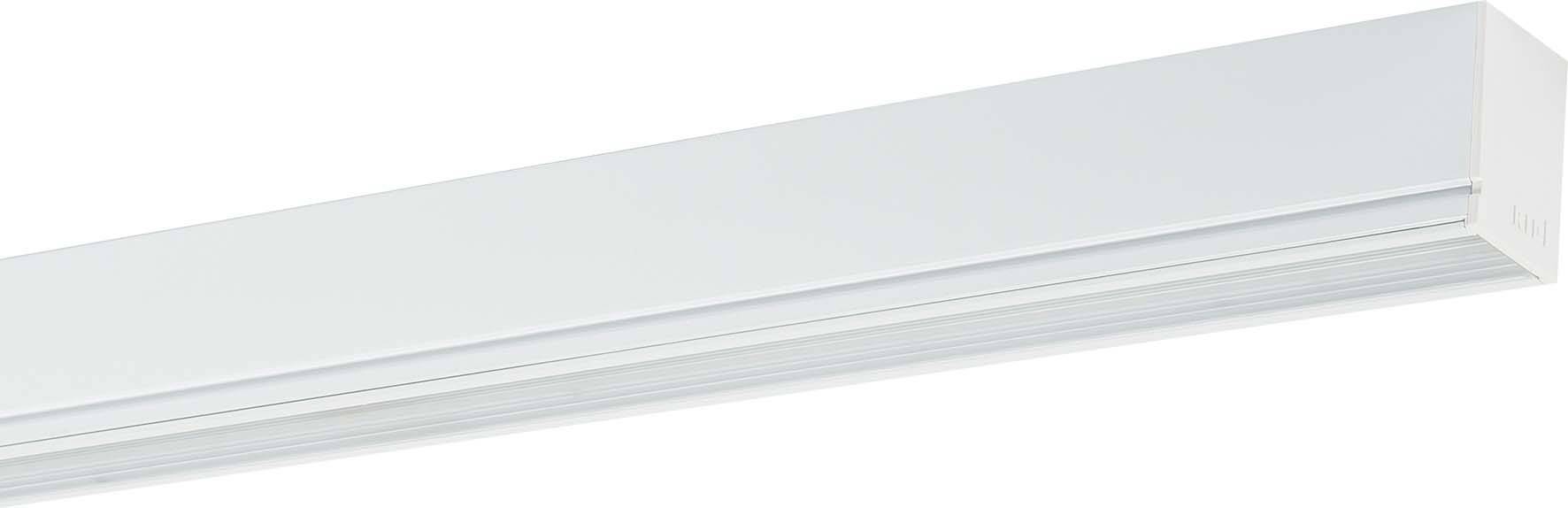

White, rectangular LED light with a minimalist design, suitable for ceiling mounting in interior spaces.

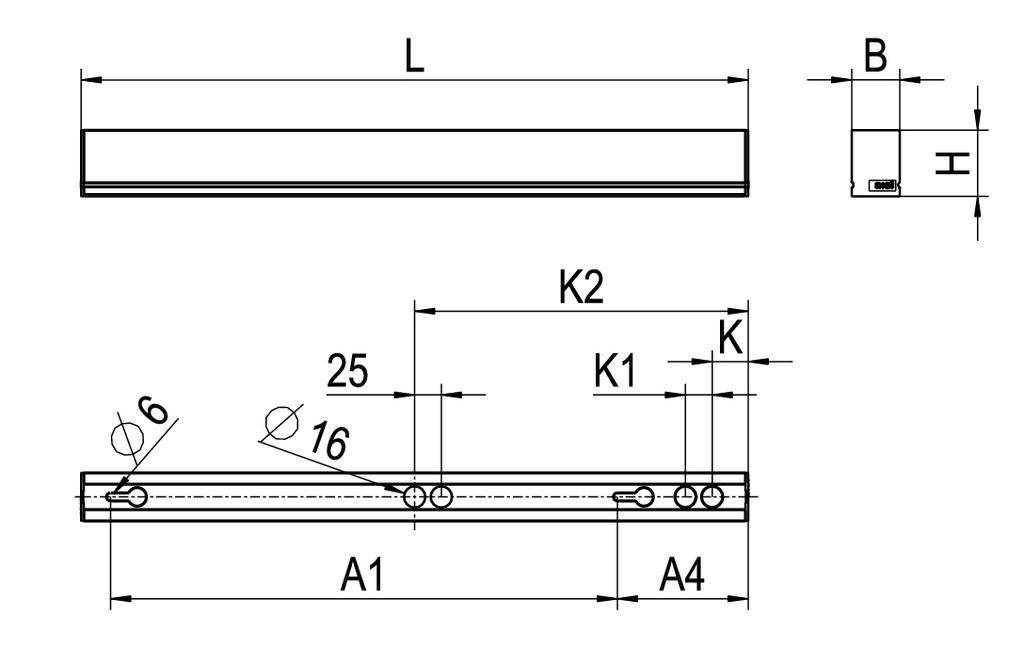

Technical Drawing of a Rectangular Metal Strip with Dimensional Specifications: Length L, Width B, and Positions K, K1, K2. Details of Drill Holes, Diameters 6, 16, 25.

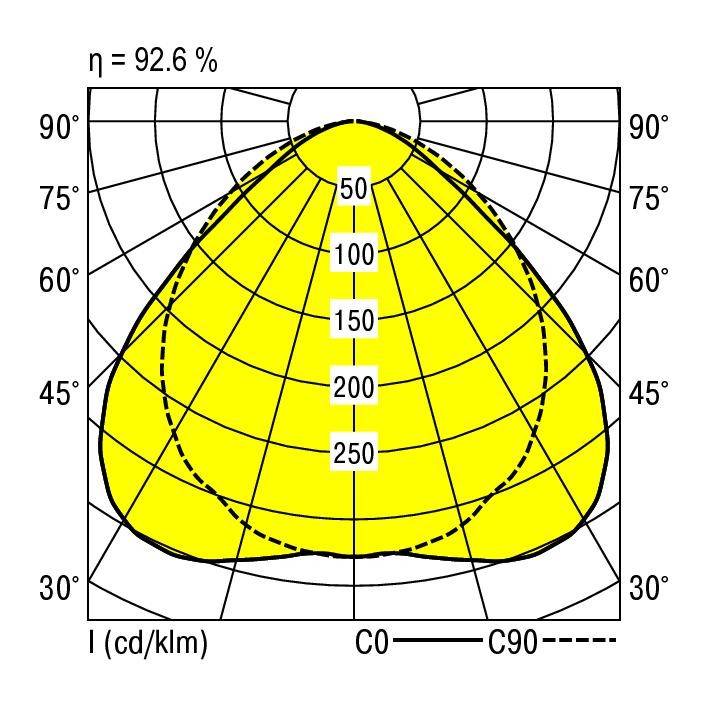

Spherical coordinate diagram shows the light distribution of a luminaire. C0 and C90 lines are marked, efficiency is 92.6%.

1/3

RIDI

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
Suitable for the number of bulbs: 1
Material: Steel
Housing color: White
Voltage type AC/DC
Nominal voltage 220..240 V
Operating device: LED operating device current-controlled
With operating device: Yes
Removable operating device: Yes
Dimmer 0-10 V: No
Dimmer 1-10 V: No
DALI dimming: No.
Dimmer DMX: No
Dimmer DSI: No.
Dimmer potentiometer (built-in): No.
Dimmer GPRS: No.
Dimming LineSwitch: No.
Dimmer manufacturer-specific: No.
Mains voltage modulation dimming: No.
Dimming Phase section: No.
Dimming leading edge: No.
Dimming programmable: No.
Dim. RF: No.
Dimming Sine Wave Reduction: No.
Dimming Touch and Dim: No.
Zigbee dimming: No.
Dimming with push-button: No.
Without dimming function: Yes
Protection class (IP) IP20
Protection class: I
Lamp with limited surface temperature ""D-sign"": No.
Covering of the lamp with thermal insulation material is possible: No.
Suitable for emergency light: No.
Integrated emergency power supply: No.
Filament testing according to IEC 60695-2-11:650°C - 30 s.
With switch: No.
With motion detector: No.
Suitable for lamp output 38 W
Max. System power 44 W
Rated light current according to IEC 62722-2-1: 6020 lm
Light color: White
Colour temperature: 3000 K
Color Rendering Index CRI: 80-89
Adjustable color temperature: No.
Luminous flux can be set: No
Adjustable radiation angle: No.
Width 36 mm
Height/depth 50 mm
Length: 1488 mm
Electrical connection with connector system: No.
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Bulb: LED not replaceable
With bulb: Yes

: Bulb cannot be changed

Product type: LED strip light

Length: 1488.00 mm

: 44 W

Factory colour: White

Operating voltage: 230 V

Content: 1 pc(s)

: n.rel.

Width: 36.00 mm

Height: 50 mm

Rated luminous flux: 6020 lm

Colour rendering index: 80-89

Colour temperature (max.): 3000 K

Colour temperature (min.): 3000 K

No. of bulbs: 1

: IP20

Bulb type: LED (monochrome)

Colour: Warm white

Light bulb included: Yes

Material (details): Steel

Nominal voltage: 230 V

Total luminous flux: 6020 lm

Rating per bulb: 38 W

: 3000 K

Protection class: I

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3134914 RIDI 522533 LED strip light Bulb cannot be changed 44 W 1488.00 mm White 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3134914 RIDI 522533 LED strip light Bulb cannot be changed 44 W 1488.00 mm White 1 pc(s)

Description

Light strip VLDF-F, mounting, white, on/off, light output , Cover longitudinal prismatic extremely wide radiating, length 1488 mm, width 36 mm, height 50 mm, protection class IP20, Rated light current 6020 lm, rated power 44 W, 136 lm/W, light color 830, reference value UGR 29
