RIDI 650612 650612 Ceiling light LED (monochrome) LED 183 W White
EAN:
Part number:
Item no:
Highlights & Details

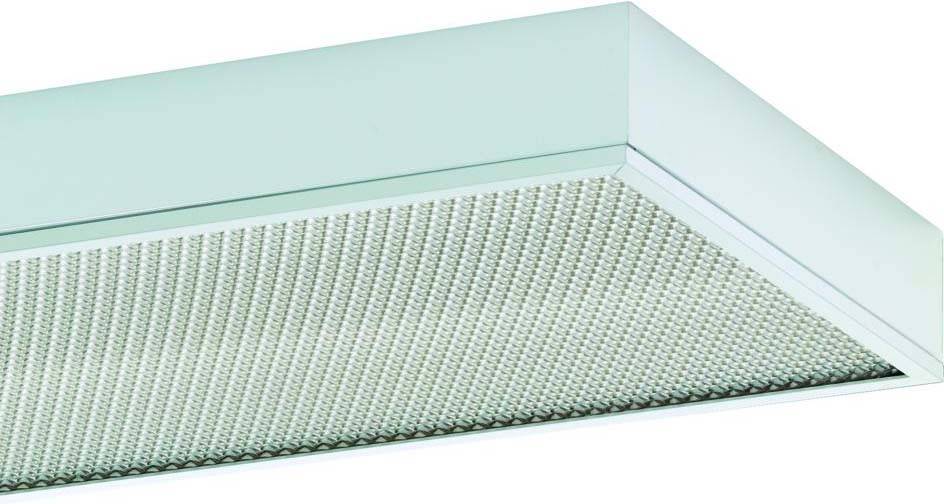

Ridi-lights mounted light fitting with RIDI-Tube SHL-L 380/2 #0650612
- Power= 183 W
- Total luminous flux= 20840 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Energy efficiency class spectrum: A to G.
- Suitable for wall mounting: No.
- Suitable for pendulum suspension: Yes
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on the panel: Yes
- Suitable for light band configuration: Yes
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for the number of bulbs: 3
- Version: Other
- Material of housing: Steel
- Surface protection housing: Powder-coated
- Housing color: White
- Cover material: Textured plastic
- Design of grid: Without
- Voltage type AC
- Nominal voltage 220..240 V
- Nominal current: 20838000 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: Yes
- Without dimming function: Yes

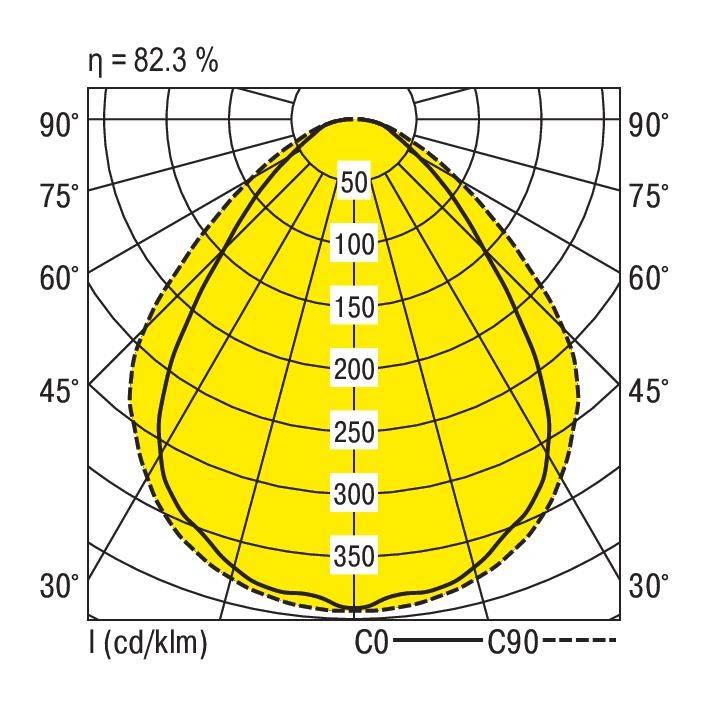

- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Energy efficiency of the supplied exchangeable bulb: D.
- Rated life L80/B10 at 25 °C: 50000 h
- Max. Number of lights circuit breaker B16: 24
- Max. Number of lamps line circuit breakers C16: 40
- Protection class (IP) IP40
- Impact strength: IK08
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- With air vents: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Suitable for lamp output 51 W
- Max. System power 183 W
- Light output 113 lm/W
- Rated light current according to IEC 62722-2-1: 20840 lm
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89

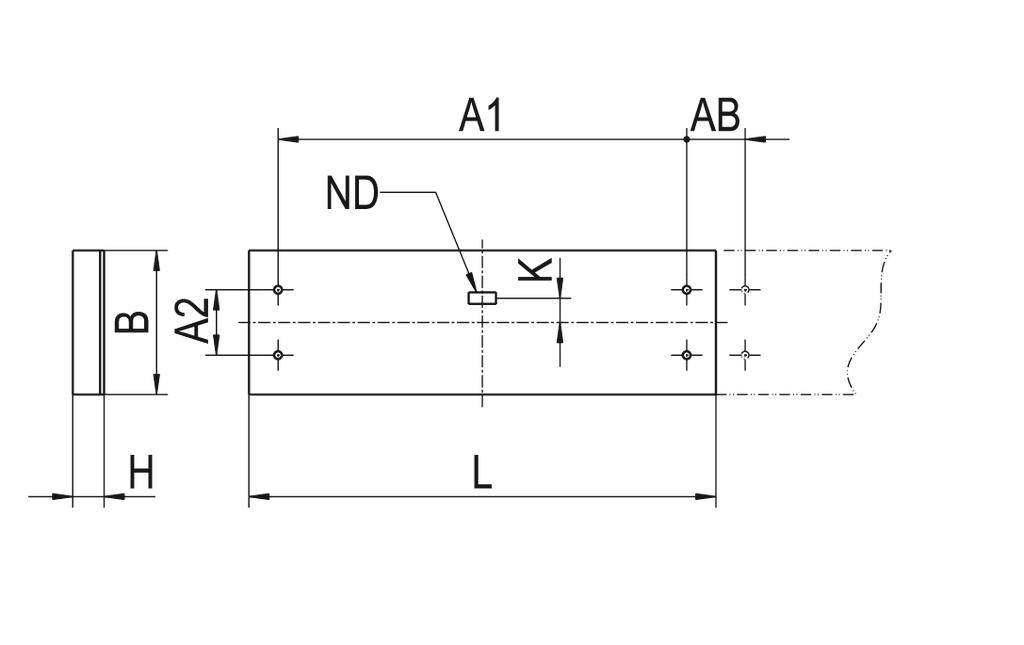

- Width 370 mm
- Height/depth 80 mm
- Length: 1500 mm
- Glare limiter (UGR): 23
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- LED bulb, replaceable
- With bulb: Yes
- Dim
(L x W x H) 1500.00 x 370.00 x 80.00 mm
- Operating voltage
230 V
- No. of bulbs
3
- Product type
Ceiling light
- Width
370.00 mm
- Bulb type
LED (monochrome)
- Height
80.00 mm
LED
- Length
1500.00 mm
- Rating per bulb
51 W
- Depth
80 mm
183 W
- Light features
Incl. ballast
- Protection class
I
IP40
- Factory colour
White
- Material
Steel
n.rel.
- Colour rendering index
80-89
- Colour
White
- Light bulb included
Yes
4000 K
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Total luminous flux
20840 lm
- Rated luminous flux
20840 lm
- Nominal voltage
230 V
Documents & Downloads
Datasheet
Datasheet 3144808 RIDI 650612 650612 Ceiling light LED (monochrome) LED 183 W White
User & Safety Instructions
User & Safety Instructions 3144808 RIDI 650612 650612 Ceiling light LED (monochrome) LED 183 W White
Description
Ceiling Light SHL, annex, white, on/off, direct light output, Cover microprismatic wide radiating, length 1500 mm, width 370 mm, height 80 mm, protection class IP40, Shock resistance IK08, L TUBE built-in, rated light current 20840 lm, rated power 183 W, 113 lm/W, Light color 840, reference value UGR 23, ball-protected
