RIDI 660077 660077 Ceiling light LED (monochrome) 34 W White
EAN:
Part number:
Item no:
Highlights & Details
Ridi-lights mounted light with RIDI-Tube IHLS-L 154/ #0660077
- Power= 34 W
- Total luminous flux= 4040 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Energy efficiency class spectrum: A to G.
- Suitable for wall mounting: No.
- Suitable for pendulum suspension: Yes
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on a panel: No.
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for the number of bulbs: 1
- Version: Other
- Material of housing: Steel
- Surface protection housing: Powder-coated
- Housing color: White
- Cover material: Transparent plastic
- Design of grid: Without
- Voltage type AC
- Nominal voltage 220..240 V
- Nominal current: 3853000 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: Yes
- Without dimmer function: No.

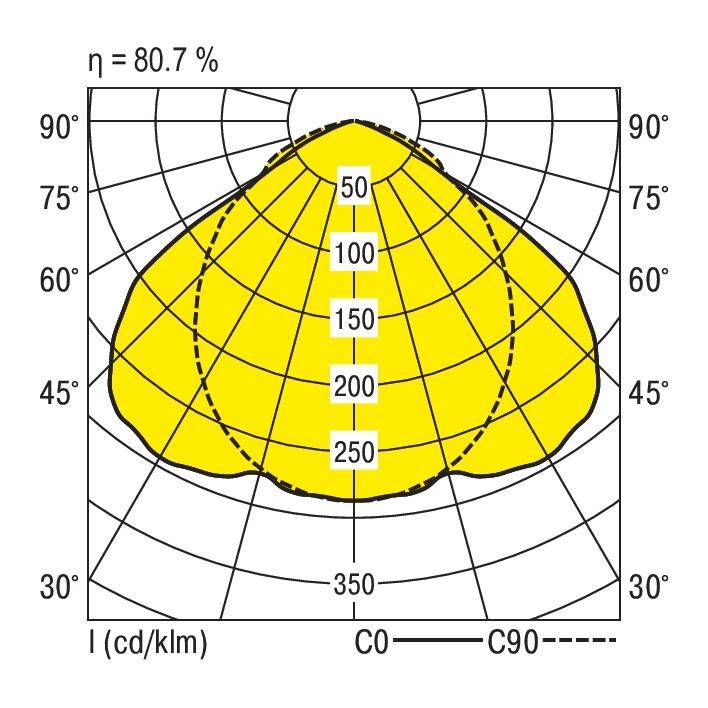

- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Energy efficiency of the supplied exchangeable bulb: D.
- Rated life L80/B10 at 25 °C: 85000 h
- Max. Number of lights circuit breaker B16: 36
- Max. Number of lamps line circuit breakers C16: 61
- Protection class (IP) IP64
- Impact strength: IK08
- Protection class: I
- Lamp with limited surface temperature ""D-sign"": Yes
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Covering of the lamp with thermal insulation material is possible: No.
- With air vents: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Suitable for lamp output 30 W
- Max. System power 34 W
- Light output 118 lm/W
- Rated light current according to IEC 62722-2-1: 4040 lm
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Width 200 mm
- Height/depth 80 mm
- Length: 1200 mm
- Glare limiter (UGR): 21.6
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- LED bulb, replaceable
- With bulb: Yes
- Dim
(L x W x H) 1200.00 x 200.00 x 80.00 mm
- Operating voltage
230 V
- No. of bulbs
1
- Product type
Ceiling light
- Width
200.00 mm
- Bulb type
LED (monochrome)
- Height
80.00 mm
- Length
1200.00 mm
- Rating per bulb
30 W
- Depth
80 mm
34 W
- Light features
Dimmable
- Protection class
I
IP64
- Factory colour
White
- Material
Steel
n.rel.
- Colour rendering index
80-89
- Colour
White
- Light bulb included
Yes
4000 K
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Total luminous flux
4040 lm
4040 lm
- Rated luminous flux
4040 lm
- Nominal voltage
230 V
Documents & Downloads
Datasheet
Datasheet 3144620 RIDI 660077 660077 Ceiling light LED (monochrome) 34 W White
User & Safety Instructions
User & Safety Instructions 3144620 RIDI 660077 660077 Ceiling light LED (monochrome) 34 W White
Description
CIELING lamps, mounting, traffic white, similar to RAL 9016, DALI, Light emission direct, reflector extremely wide radiation, length 1200 mm, width 200 mm, height 80 mm, Protection class IP64, shock resistance class IK08, L TUBE built in, rated light current 4040 lm, rated power 34 W, 118 lm/W, light color 840, reference value UGR 21, ball-protected HACCP certified
