RIDI 660329 660329 Ceiling light LED (monochrome) 68 W White
EAN:
Part number:
Item no:
Highlights & Details
Ridi-lights mounted light f. RDI-Tube DALI ABRB-R2X115/30DA-SM
- Power= 68 W
- Total luminous flux= 8320 lm
- Colour temperature= 4000 K
- White
Technical specifications
- Energy efficiency class of light source according to EU regulation 2019/2015: Not relevant
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: No.
- Suitable for mounting on a panel: No.
- Suitable for light band configuration: Yes
- Suitable for screen workstations according to EN 12464-1: No.
- Suitable for the number of bulbs: 2
- Version: Other
- Material of housing: Steel
- Surface protection housing: Powder-coated
- Housing color: White
- Cover material: Without cover
- Grid type: Matt
- Voltage type AC
- Nominal voltage 230..240 V
- Nominal current: 8317000 mA
- Operating device: LED operating device current-controlled
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimmer GPRS: No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Dimming depends on the operating device: Yes
- Without dimmer function: No.

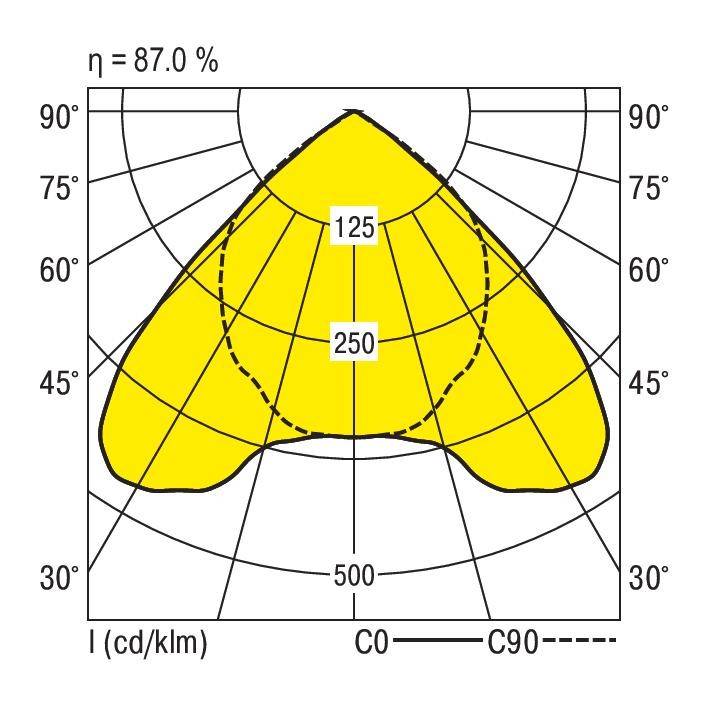

- Light distribution: Symmetric
- Color consistency (McAdam ellipse): SDCM3
- Light emission: Direct
- Max. Number of lights circuit breaker B16: 24
- Max. Number of lamps line circuit breakers C16: 40
- Protection class (IP) IP20
- Impact strength: IK03
- Protection class: I
- Lamp with limited surface temperature "D-sign": No.
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: No.
- With motion detector: No.
- With light sensor: No.
- Covering of the lamp with thermal insulation material is possible: No.
- With air vents: No.
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Suitable for lamp output 30 W
- Max. System power 68 W
- Light output 122 lm/W
- Rated light current according to IEC 62722-2-1: 8320 lm
- Light color: White
- Colour temperature: 4000 K
- Color Rendering Index CRI: 80-89
- Width 215 mm
- Height/depth 60 mm
- Length: 1180 mm
- Glare limiter (UGR): 19.7
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Operation via Bluetooth: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- LED bulb, replaceable
- With bulb: No.
- Dim
(L x W x H) 1180.00 x 215.00 x 60.00 mm
- Operating voltage
230 V
- No. of bulbs
2
- Product type
Ceiling light
- Width
215.00 mm
- Bulb type
LED (monochrome)
- Height
60.00 mm
- Length
1180.00 mm
- Rating per bulb
30 W
- Depth
60 mm
68 W
- Light features
Dimmable
- Protection class
I
IP20
- Factory colour
White
- Material
Steel
n.rel.
- Colour rendering index
80-89
- Colour
White
- Light bulb included
No
4000 K
- Colour temperature (max.)
4000 K
- Colour temperature (min.)
4000 K
- Colour temperature range
4000 - 4000 K
- Total luminous flux
8320 lm
8320 lm
- Rated luminous flux
8320 lm
- Nominal voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3145664 RIDI 660329 660329 Ceiling light LED (monochrome) 68 W White
User & Safety Instructions
User & Safety Instructions 3145664 RIDI 660329 660329 Ceiling light LED (monochrome) 68 W White
Description
Ceiling Light ABRB, mounting, white, DALI, direct light output, extremely wide screen, length 1180 mm, width 215 mm, height 60 mm, protection class IP20, IK03 shock resistance, suitable for R-TUBE, UGR 19 reference value
