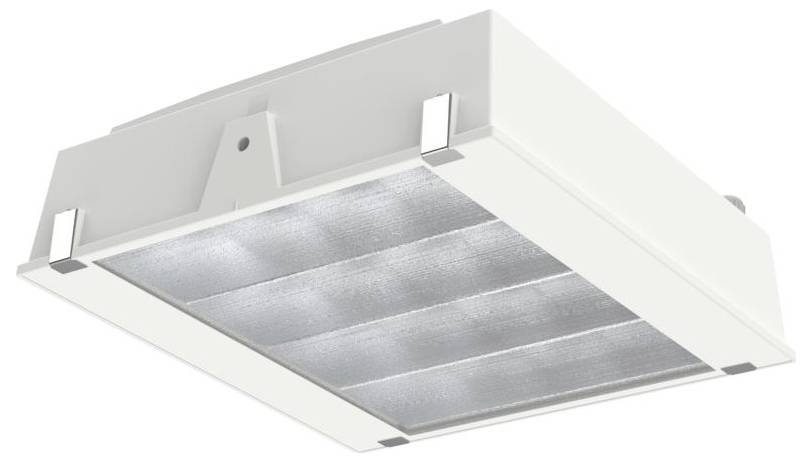

RIDI ROBUST NDWS865B3000 0627902 LED hall light
EAN:
Part number:
Item no:
Technical specifications
- Width 415 mm
- Mounting type: Construction
- Protection class (IP) IP66
- Protection class: I
- Impact strength: IK09
- Material of housing: Aluminium
- Length: 415 mm
- Nominal voltage 220..240 V
- Voltage type AC/DC
- LED bulb, replaceable
- Radiation angle: Wide radiation 41-80°
- Operating device: LED operating device current-controlled
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Constant luminous flux regulation: No.
- Colour temperature: 6500 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Height/depth 131 mm
- With protective cover: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Housing color: White
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes
- Light distribution: Symmetric
- Max. System power 195 W
- Rated light current according to IEC 62722-2-1: 30210 lm
- Light distributor: Without
- Color consistency (McAdam ellipse): SDCM3
- Suitable for emergency lighting: Yes
- Integrated emergency power supply: No.
- Light output 154 lm/W
- Version: Other
- Filament testing according to IEC 60695-2-11:650°C - 30 s.
- Max. Number of lights circuit breaker B16: 11
- Max. Number of lamps line circuit breakers C16: 11
- Suitable for side lighting: No.
- Suitable for sports facilities: Yes
- Lamp with limited surface temperature ""D-sign"": Yes
- Product type
LED hall light
n.rel.
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550201 RIDI ROBUST NDWS865B3000 0627902 LED hall light
Description
Hall heaters of the RUGGED product family. Light steering through grid, radiating characteristic symmetric, wide beam, light emission direct. Light bulb integrated with LED-M, and can be exchanged by an expert. The lamp generates a rated luminous flux of 30210 lm in light color 865, luminous flux adjustable: No. The high LED life allows a long use with constant illumination quality. High light quality with a tolerance of < 3 SDCM color spot. Casing made of aluminum, traffic white, similar to RAL 9016, protection class IP66. Glass cover (ESG). Ceiling mounting with appropriate accessories. Pendant fitting (chain or rope) with appropriate mounting kits, swing hooks (4 pieces) included. Mounting rail with appropriate accessories. Suitable for sports facilities only, with accessories listed accordingly. With electronic operating device On/Off. Replacement by qualified personnel possible. Nom. Voltage: 220 - 240 V AC/DC 50 - 60 Hz.
