Name: Rigel Medical Rigel Uni Pulse 400 Defibrillator tester Calibrated to (ISO standards)
Brand: Rigel Medical
SKU: 3473938
Availability: BackOrder

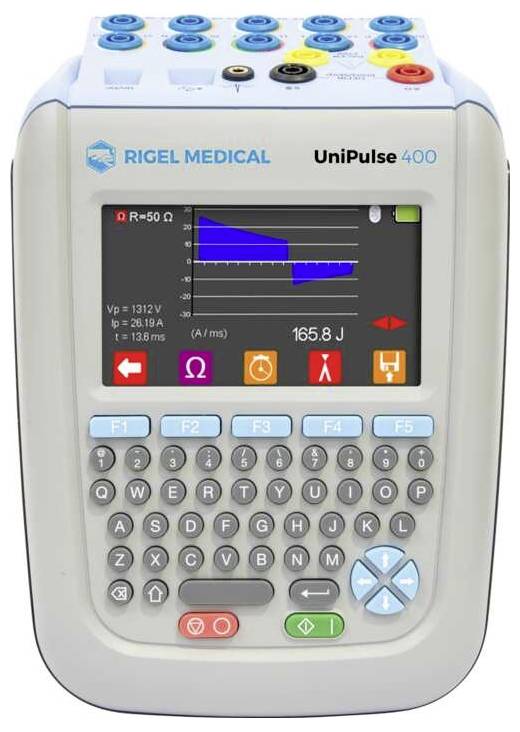

Rigel Medical UniPulse 400 defibrillator analyzer with test leads on top and screen showing a waveform and 165.8 J reading.

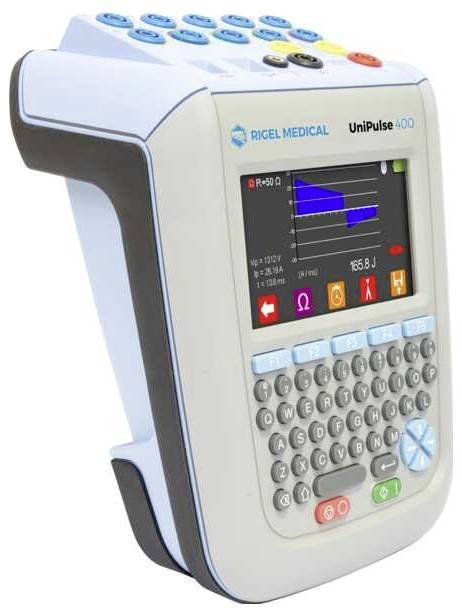

Medical device displaying a graph on the screen with buttons for navigation and input, labeled 'Rigel Medical UniPulse 400'.

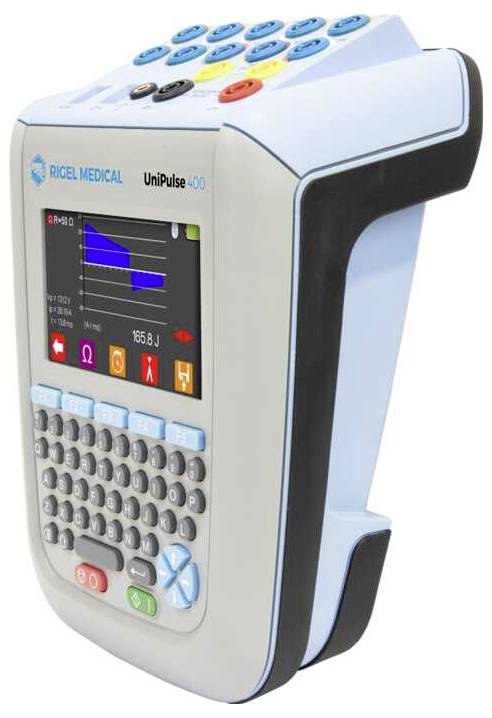

A medical device with a screen displaying a graph, labeled 'UniPulse 400', featuring multiple buttons and a keypad for controls.

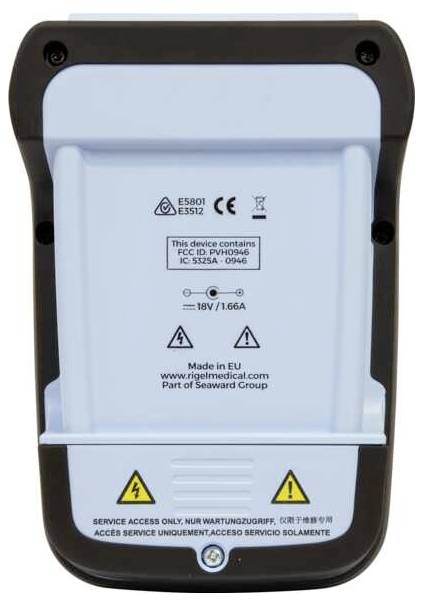

A device back panel with safety and compliance labels, including 'Made in EU' and voltage information '18V / 1.66A', with secure access notes.

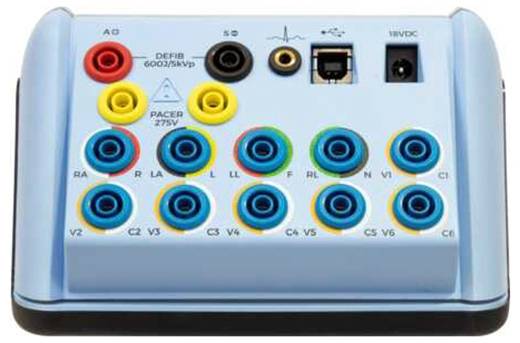

A medical device interface with various colored connectors, labeled for different body parts, used in patient monitoring or diagnostics.

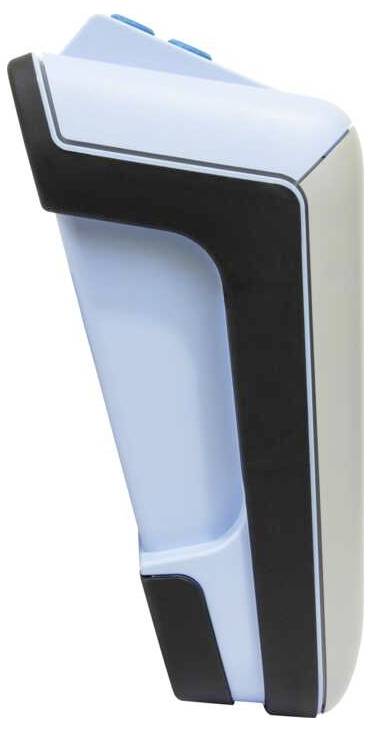

A light blue and black handheld device with a grip handle, possibly for scanning or data collection purposes.

Portable medical device with screen and keypad, labeled Rigel Medical UniPulse 400, shown on a white background.

1/7

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 6,245.00 / piece)

€ 6,245.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Rigel UniPulse 400 defibrillator tester

Pacemaker functionality
Compatible with monophasic, biphasic, and pulsed waveforms
Colour LCD display
Simple and intuitive navigation with special quick test and simulation buttons
Rechargeable battery for operation without mains connection
Data download via USB to the PC
Non-inductive load test of 50Ω
Patient simulator with ECG-Hi output
Multilingual firmware for use around the globe
Portable, compact and robust
Defibrillator Power Discharge Test
Check the charging time
Cardiac synchronization check (responder time)
40 selectable arrhythmias
Power waveforms
5 Pacemaker modes

Technical specifications

Defibrillator tester

Product type: Defibrillator tester

: ISO standards

Interfaces: USB

Dim: (L x W x H) 220 x 150 x 90 mm

Weight: 1500 g

: IP40

Display type: Digital (LED)

Width: 150 mm

Height: 90 mm

Length: 220 mm

Test procedure: manual

Voltage supply: 230 V/AC

Memory (space): 100

Memory: Yes

Type: Rigel Uni Pulse 400

Features: incl. software

Documents & Downloads

Datasheet

Datasheet 3473938 Rigel Medical Rigel Uni Pulse 400 Defibrillator tester Calibrated to (ISO standards)

User & Safety Instructions

User & Safety Instructions 3473938 Rigel Medical Rigel Uni Pulse 400 Defibrillator tester Calibrated to (ISO standards)

Description

The new UniPulse 400 is designed to fully and efficiently test defibrillators. The large, bright color screen displays test results and waveforms in amazing detail. The special quick keys and the user interface which can be operated simply and intuitively enable the examiner to select the corresponding test function in seconds. The Uni Pulse 400 is able to analyze monophasic as well as biphasic and biphasic pulsing waveforms. This unmatched functionality and our new pacemaker feature make the Uni Pulse 400 the ultimate defibrillator device on the market. The large internal memory and on-board result storage reduce test time and contribute to a modern paperless system. Results can be downloaded to Med-eBase, the asset management software, via our simple USB feature. Alternatively you can use the data retrieval on the screen to check the results - it was never so simple. The ergonomic housing of the UniPulse 400 makes the device compact, robust and light-weight, so that you can change the place of use without any problem. Our Rigel carrying case makes it easy to transport the device together with additional accessories to different locations.

This text is machine translated.
