Buy Rigol DG2072 Mains-powered 0.000001 Hz - 70 MHz Sinus, Rectangle, Noise, Pulse, Triangle, Arbitrary

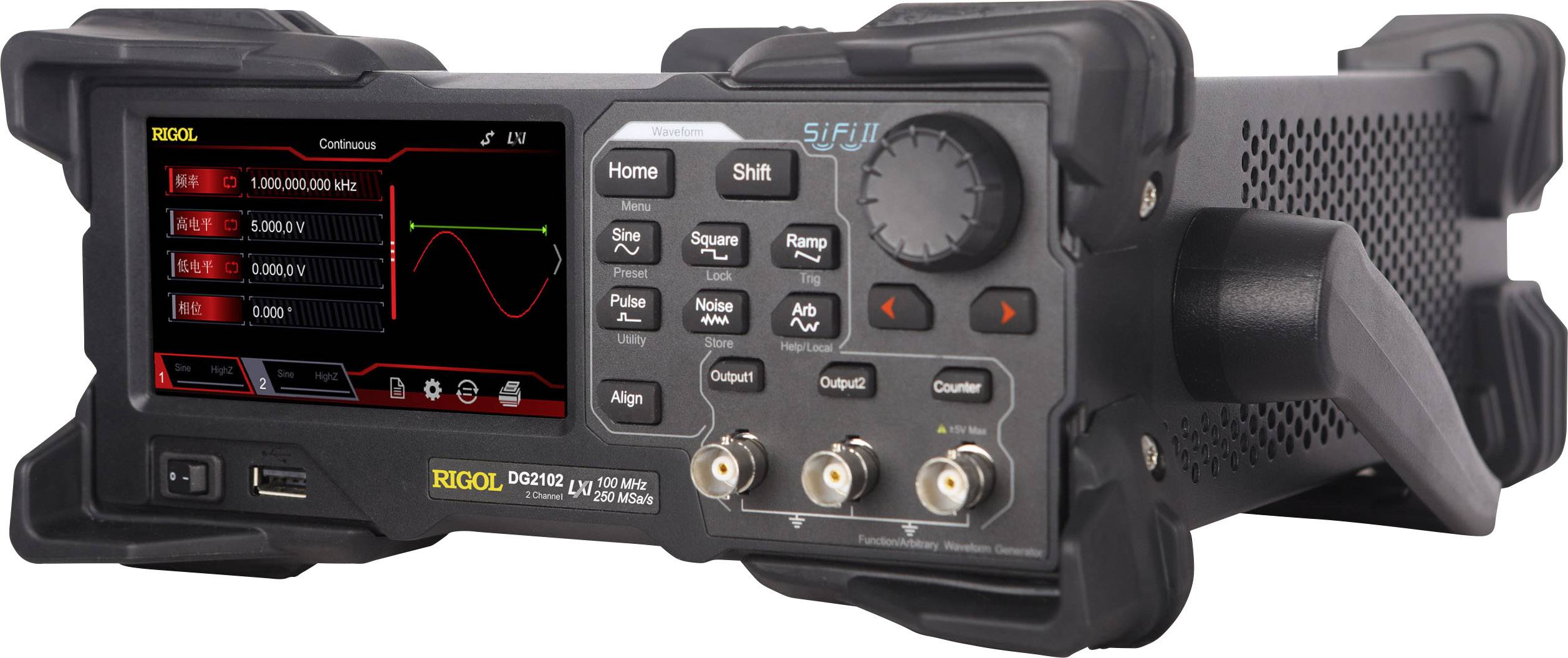

A frequency generator with a digital display, showing frequencies from 1,000 to 4,000 kHz. Controls and connections visible.

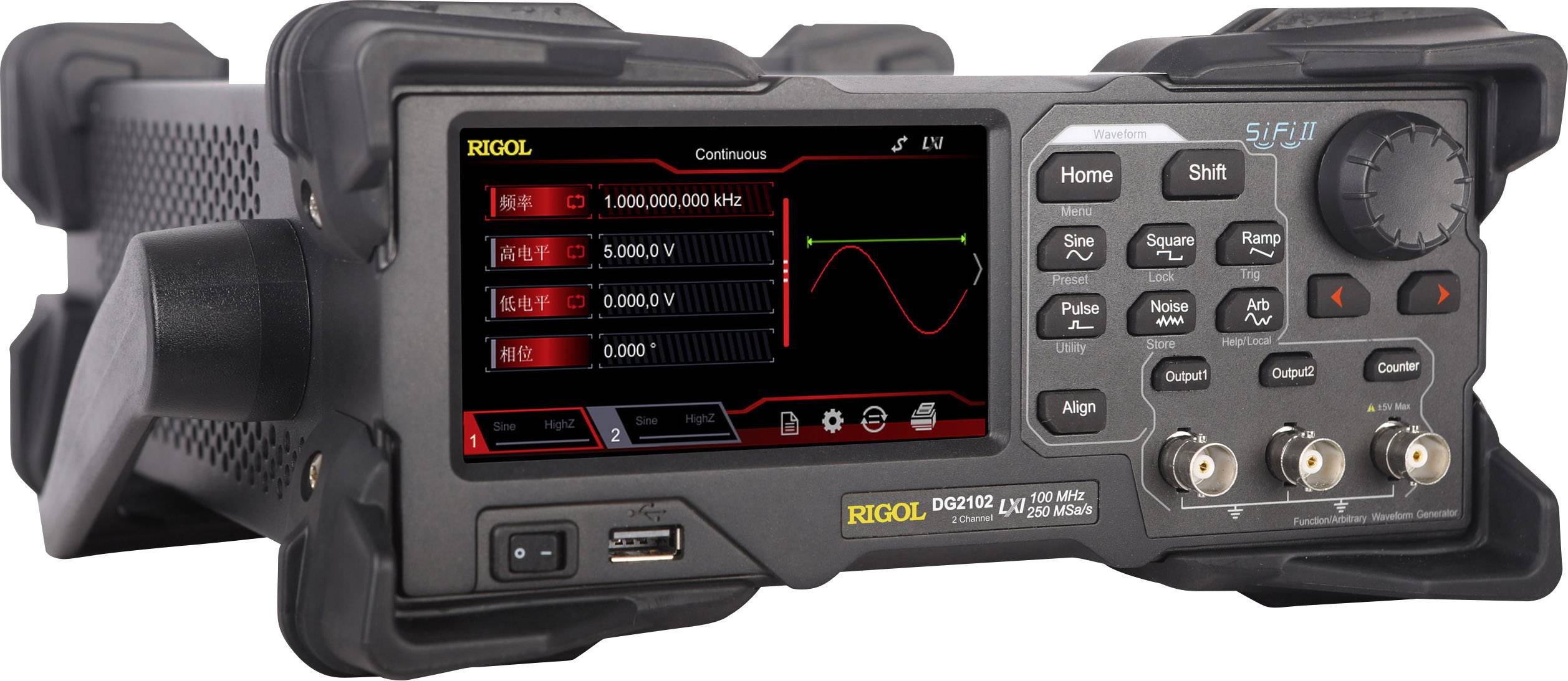

A black and grey oscilloscope with a red screen displays a waveform graphic. Various frequencies are shown on the display.

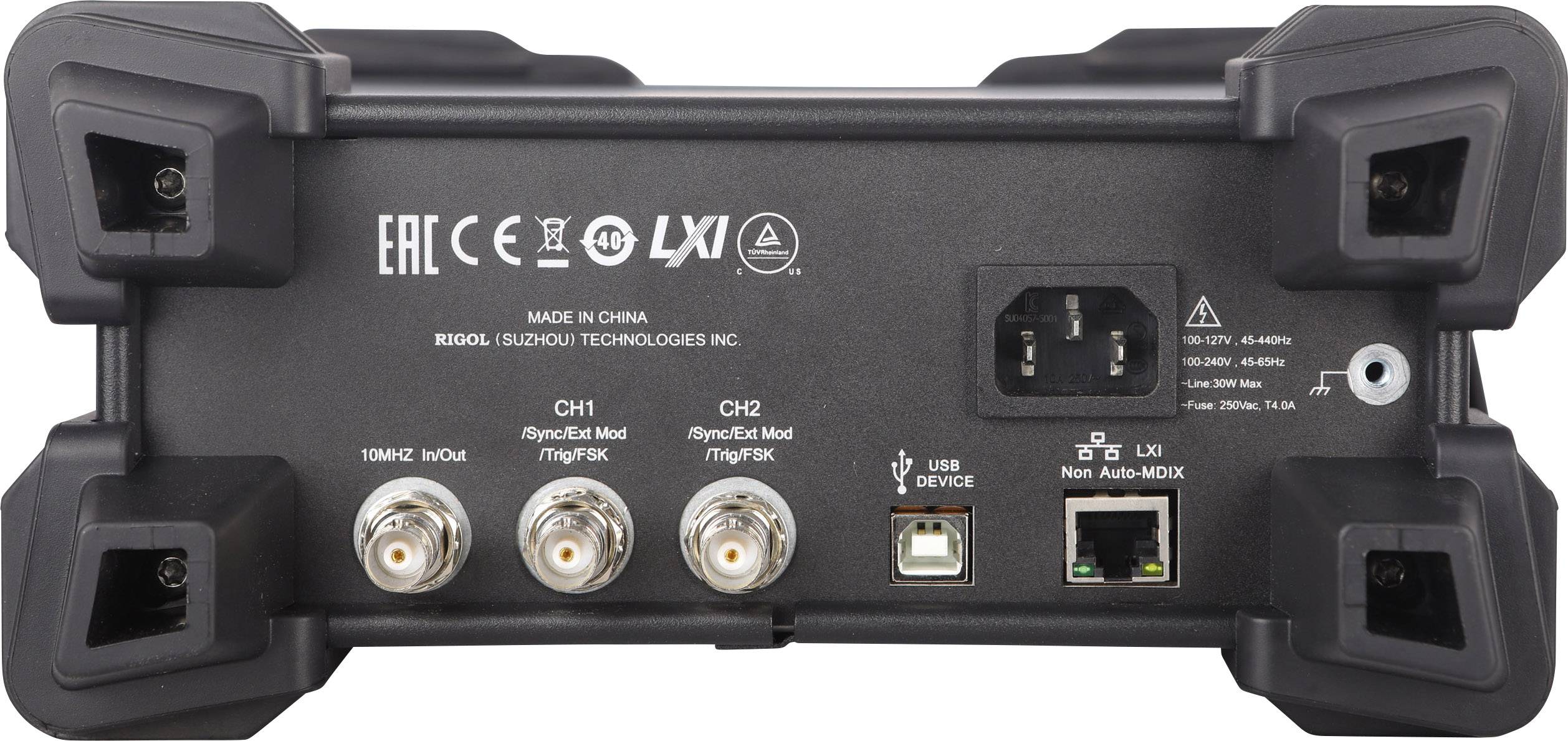

Back of an electronic device with a mains connection, USB port and four coaxial ports labelled CH1 and CH2.

Oscilloscope on a table. Display shows a sine wave and buttons for adjusting parameters. Device for waveform analysis.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 684.87 / piece)

€ 684.87

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

ARB. Function generator DG2072

70 MHz bandwidth
2 Outputs
Sine, square, triangle, pulse, noise, dual tone, harmonic, arbitrary functions 160 built-in.

Technical specifications

16 Mpts waveform memory
Impedance 50 Ω
Display: Color TFT 10.9 cm, 480 x 272 pixels
Length: 319 mm

Signal output type: Sine, square, triangle, pulse, noise, DualTone, harmonic, arbitrary

Product type: Mains-powered

Frequency range: 0.000001 Hz - 70 MHz

Signal output types: Sinus
Rectangle
Noise
Pulse
Triangle
Arbitrary

Frequency range (sine): 1 μHz - 70 MHz

Distortion factor (sine): <1 %

Frequency range square wave: 1 μHz - 20 MHz

Frequency range triangle: 1 μHz - 1.5 MHz

ARB frequency range: 1 µHz - 20 MHz

: Manufacturer's standards (no certificate)

Internal modulation: AM, FM, PM, ASK, FSK, PSK, PWM

Frequency reading (external): 1 µHz - 250 MHz

Dim: (W x H) 262 mm x 112 mm

Weight: 3.2 kg

Max. frequency: 70 MHz

Min. frequency: 0.000001 Hz

Features: Modulation
incl. cycle counter

Width: 262 mm

Height: 112 mm

Interfaces: RS232
LAN
USB

Voltage supply: Mains

Type: DG2072

Documents & Downloads

Datasheet

Datasheet 2187948 Rigol DG2072 Mains-powered 0.000001 Hz - 70 MHz Sinus, Rectangle, Noise, Pulse, Triangle, Arbitrary

User & Safety Instructions

User & Safety Instructions 2187948 Rigol DG2072 Mains-powered 0.000001 Hz - 70 MHz Sinus, Rectangle, Noise, Pulse, Triangle, Arbitrary

Description

The model DG2072 has 2 output channels as well as an internal spear of 16 Mpts. In addition to the typical functions, you will find over 160 built-in arbitrary signals such as ECG, Gauss curves, Lorentz, Dual Tone, Expotential Rise and Fall. Highest signal quality of 1ppm, at 16Bit resolution.

This text is machine translated.
