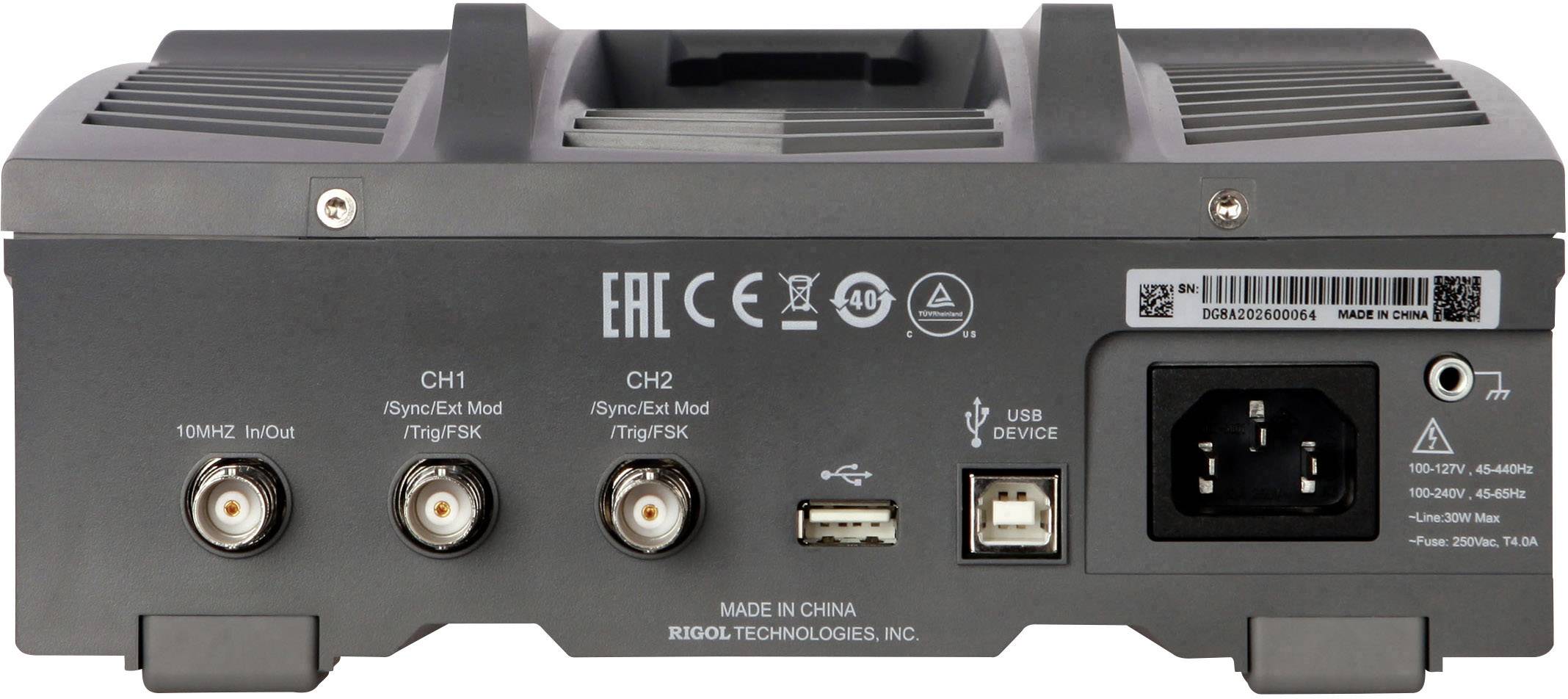

Rigol DG811 Mains-powered 10 MHz (max) 1-channel Arbitrary, Triangle, Lorentz curve, Pulse, Noise, Rectangle, Sinus-2

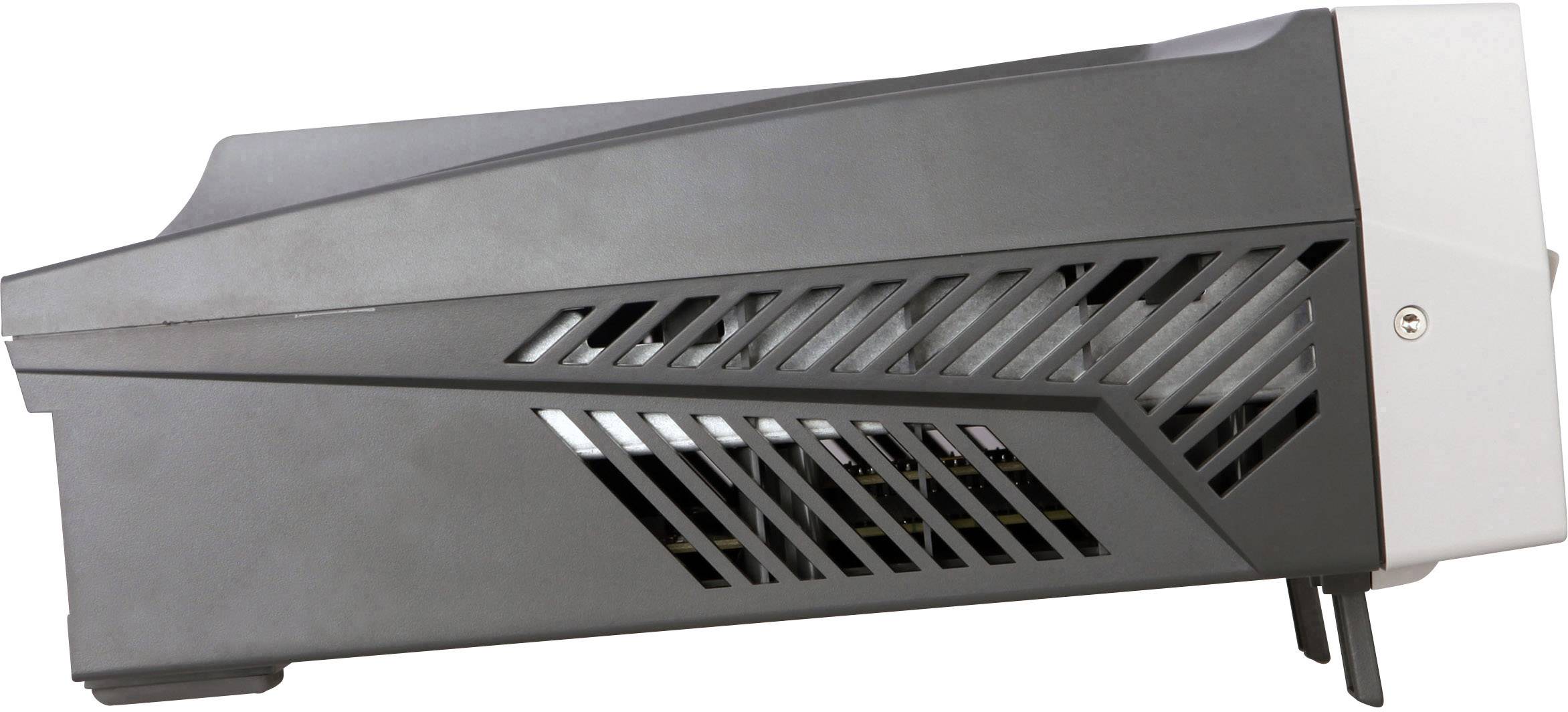

Rigol DG811 Mains-powered 10 MHz (max) 1-channel Arbitrary, Triangle, Lorentz curve, Pulse, Noise, Rectangle, Sinus-3

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 247.90 / piece)

€ 247.90

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

DG811Arbitrary Functions generator

10 MHz bandwidth
1 output
Sine, square, triangle, pulse, noise, Dual Tone, harmonious, arbitrary functions 160 installed

Technical specifications

Sampling rate: 125 MSa/s
8 Mpts memory depth: 2 Mpts (optional)

Product type: Mains-powered

Frequency range: 10 MHz (max)

Signal output types: Arbitrary
Triangle
Lorentz curve
Pulse
Noise
Rectangle
Sinus

Frequency range (sine): 1 µHz - 10 MHz

Frequency range square wave: 1 µHz - 5 MHz

Display: LCD

Frequency range triangle: 1 µHz - 200 kHz

ARB frequency range: 1 µHz - 5 MHz

: Manufacturer's standards (no certificate)

Internal modulation: AM, FM, PM, ASK, FSK, PSK, PWM

Dim: (W x H) 238 mm x 97 mm

Weight: 1.75 kg

No. of channels: 1-channel

Max. frequency: 10 MHz

Features: Modulation

Width: 238 mm

Height: 97 mm

Interfaces: USB
USB host
USB device

Voltage supply: Mains

Type: DG811

Documents & Downloads

Datasheet

Datasheet 1783947 Rigol DG811 Mains-powered 10 MHz (max) 1-channel Arbitrary, Triangle, Lorentz curve, Pulse, Noise, Rectangle, Sinus

User & Safety Instructions

User & Safety Instructions 1783947 Rigol DG811 Mains-powered 10 MHz (max) 1-channel Arbitrary, Triangle, Lorentz curve, Pulse, Noise, Rectangle, Sinus

Description

The model DG811 has 1 Output channel as well as an internal memory of 2 Mpts. In addition to the typical functions, you will find over 160 built-in arbitrary signals such as ECG, Gauss curves, Lorentz, Dual Tone, Expotential Rise and fall. The highest signal quality of 1 ppm, with 16 bit resolution.
